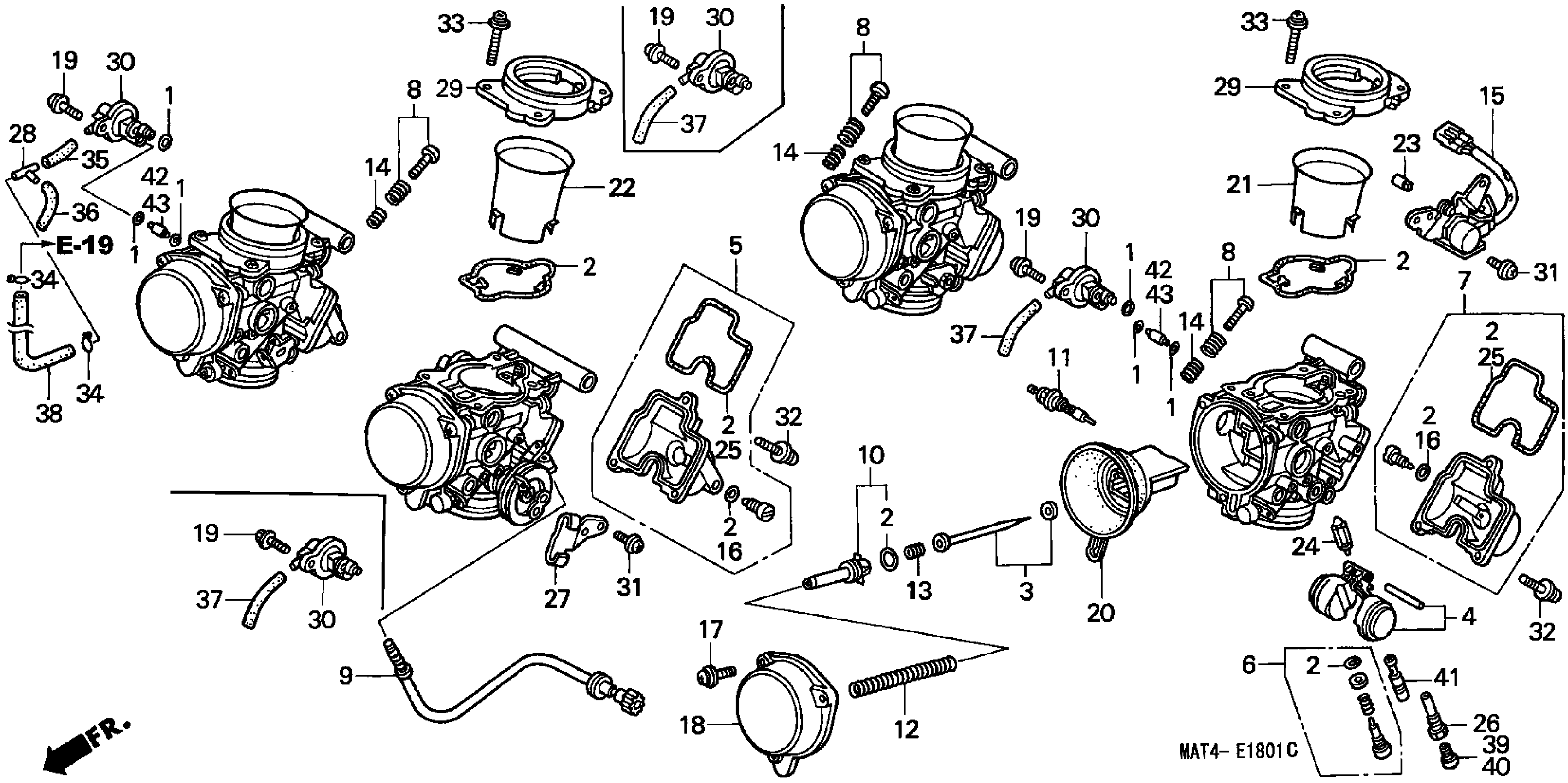

Honda CBR1100XXA (98) MOTORCYCLE, JPN, VIN# JH2SC350-WM100001 TO JH2SC350-WM101089 CARBURETOR COMP. Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$18.02

2

GASKET SET A

16010-MAT-600

$32.23

3

NEEDLE SET, JET (NOT AVAILABLE)

16027-MAS-600

Unavailable

4

FLOAT SET

16013-MAT-600

Unavailable

5

CHAMBER SET, FLOAT (#2) This part replaces 16015-MAS-600.

16023-MZ2-E00

Unavailable

5

CHAMBER SET, FLOAT (#2)

16023-MZ2-E00

Unavailable

6

SCREW SET This part replaces 16016-MAS-640.

16028-MY5-890

Unavailable

6

SCREW SET

16028-MY5-890

Unavailable

7

CHAMBER SET, FLOAT (#3) This part replaces 16023-MAS-600.

16043-MZ2-E00

$93.07

7

CHAMBER SET, FLOAT (#3)

16043-MZ2-E00

$93.07

8

SCREW SET

16028-MZ2-E00

Unavailable

9

SCREW SET (NOT AVAILABLE)

16029-MAT-600

Unavailable

10

PLATE SET, VALVE (NOT AVAILABLE)

16037-MAT-600

Unavailable

11

VALVE SET, STARTER

16046-MZ2-E00

Unavailable

12

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-MAT-000

Unavailable

13

SPRING, COMPRESSION COIL

16051-MV4-000

$19.91

14

SPRING, COMPRESSION COIL

16052-KG4-003

$5.81

15

SENSOR ASSY., THROTTLE (NOT AVAILABLE)

16060-MAT-600

Unavailable

16

O-RING (1.3X4.3)

16075-GHB-640

$2.92

17

SCREW-WASHER

16080-MV4-000

$2.54

18

TOP

16107-MAT-000

Unavailable

19

SCREW

16108-MW0-750

$2.51

20

PISTON, VACUUM

16111-MAT-000

Unavailable

21

FUNNEL, AIR

16141-MAT-000

Unavailable

22

FUNNEL, AIR (NOT AVAILABLE)

16142-MAT-000

Unavailable

23

JOINT, CONNECTOR

16145-MZ2-780

$21.85

24

VALVE, FLOAT

16155-MN9-004

$30.35

25

GASKET, FLOAT CHAMBER

16163-MZ5-920

$33.18

26

HOLDER, NEEDLE JET This part replaces 16165-MAT-000.

16165-MAT-900

Unavailable

26

HOLDER, NEEDLE JET

16165-MAT-900

Unavailable

27

STAY, WIRE

16169-MZ2-600

$20.51

28

T-JOINT

16180-195-731

$12.95

29

PLATE, FUNNEL SETTING (NOT AVAILABLE)

16188-MAT-000

Unavailable

30

VALVE ASSY., AIR CUT

16510-MAL-600

$93.85

31

SCREW-WASHER (5X10)

93892-05010-00

$1.49

31

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$1.49

32

SCREW-WASHER (5X16)

93892-05016-00

$1.49

32

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$1.49

33

SCREW-WASHER (4X14)

93893-04014-07

$1.49

33

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$1.49

34

CLIP, TUBE (B7)

95002-02079

$1.49

35

BULK HOSE, VACUUM (3.5X1000) (3.5X30)

95005-35001-20M

$9.67

36

BULK HOSE, VACUUM (3.5X1000) (3.5X40)

95005-35001-20M

$9.67

37

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-20M

$9.67

38

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-20M

$9.67

39

JET, MAIN (#140) This part replaces 99101-GHB-1400.

99101-MAL-1400

$11.67

39

JET, MAIN (#140)

99101-MAL-1400

$11.67

40

JET, MAIN (#142) This part replaces 99101-GHB-1420.

99101-KPE-1420

$10.20

40

JET, MAIN (#142)

99101-KPE-1420

$10.20

41

JET, SLOW (#42) This part replaces 99103-MT2-0420.

99103-MV9-0420

$20.89

42

JET, SLOW AIR (#115) This part replaces 99108-MW0-1152.

99108-MY5-1150

Unavailable
