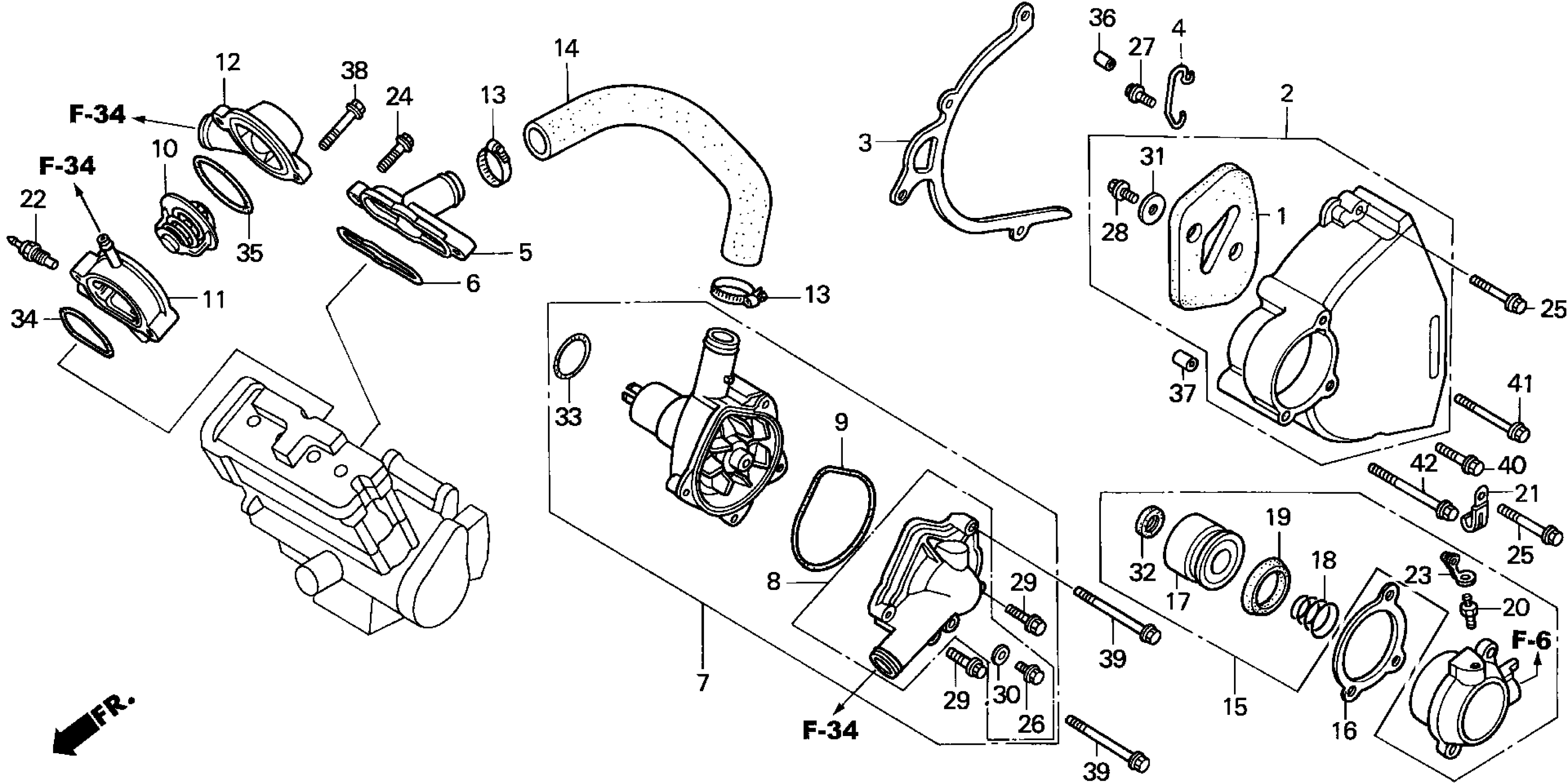

Honda CBR1100XXA (97) MOTORCYCLE, JPN, VIN# JH2SC350-VM000001 TO JH2SC350-VM002696 WATER PUMP 97 Diagram

#

Description
Price

1

RUBBER, L. COVER

11342-MZ7-000

Unavailable

2

COVER ASSY., L. RR.

11350-MAT-000

Unavailable

3

PLATE, DRIVE CHAIN GUIDE

11355-MAT-000

Unavailable

4

CLAMP, WIRE (NOT AVAILABLE)

16173-MAT-000

Unavailable

5

JOINT, WATER (NOT AVAILABLE)

19063-MAT-000

Unavailable

6

GASKET, WATER JOINT

19064-MAT-000

$6.04

7

WATER PUMP ASSY. (NOT AVAILABLE)

19200-MAT-670

Unavailable

8

COVER, WATER PUMP

19220-MAT-670

Unavailable

9

GASKET, WATER PUMP COVER

19226-MAT-000

$5.49

10

THERMOSTAT

19300-MG9-000

$48.62

11

BODY, THERMOSTAT (NOT AVAILABLE)

19314-MAT-670

Unavailable

12

COVER, THERMOSTAT (NOT AVAILABLE)

19315-MAT-000

Unavailable

13

BAND, WATER HOSE

19504-ZG8-000

$5.48

14

HOSE, WATER

19521-MAT-000

Unavailable

15

CYLINDER ASSY., SLAVE

22860-MT7-000

$176.26

16

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.64

16

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.64

17

PISTON, SLAVE CYLINDER

22863-MJ8-003

$23.93

18

SPRING, SLAVE CYLINDER This part replaces 22864-MT7-006.

22864-MT7-016

$5.78

18

SPRING, SLAVE CYLINDER

22864-MT7-016

$5.78

19

CUP, SLAVE CYLINDER

22865-MJ8-003

$10.33

20

SCREW, BLEEDER

22866-MF2-711

$4.76

21

CLAMP, SWITCH WIRE

35211-443-760

$3.77

22

THERMO UNIT (DENSO)

37750-PC1-004

$73.04

23

CAP, BLEEDER

43353-461-771

$4.70

24

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.77

25

BOLT, FLANGE (6X40) (NSHF)

90005-GHB-710

$3.22

26

BOLT, FLANGE (6X12)

90013-MW0-000

$3.61

27

BOLT, FLANGE (6X14) (CT200)

90014-952-000

$2.13

28

BOLT, FLANGE (6X10)

90083-657-000

$5.16

29

BOLT, FLANGE (6X25)

90121-MW0-000

$3.61

30

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

31

WASHER, TANK CUSHION

90503-898-000

$2.17

32

OIL SEAL (8X18X5)

91209-MB0-003

$3.77

33

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

34

O-RING (47X1.9) (ARAI)

91352-KM1-005

$2.80

35

O-RING, SPROCKET HUB

91352-MN8-003

$2.38

36

PIN, DOWEL (8X10)

94301-08100

$2.04

37

PIN, DOWEL (8X14)

94301-08140

$2.04

38

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

38

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

39

BOLT, FLANGE (6X65)

95701-06065-07

$3.91

40

BOLT, FLANGE (6X20)

96001-06020-07

$1.23

41

BOLT, FLANGE (6X75)

96001-06075-07

$1.80

42

BOLT, FLANGE (6X80)

96001-06080-07

Unavailable
