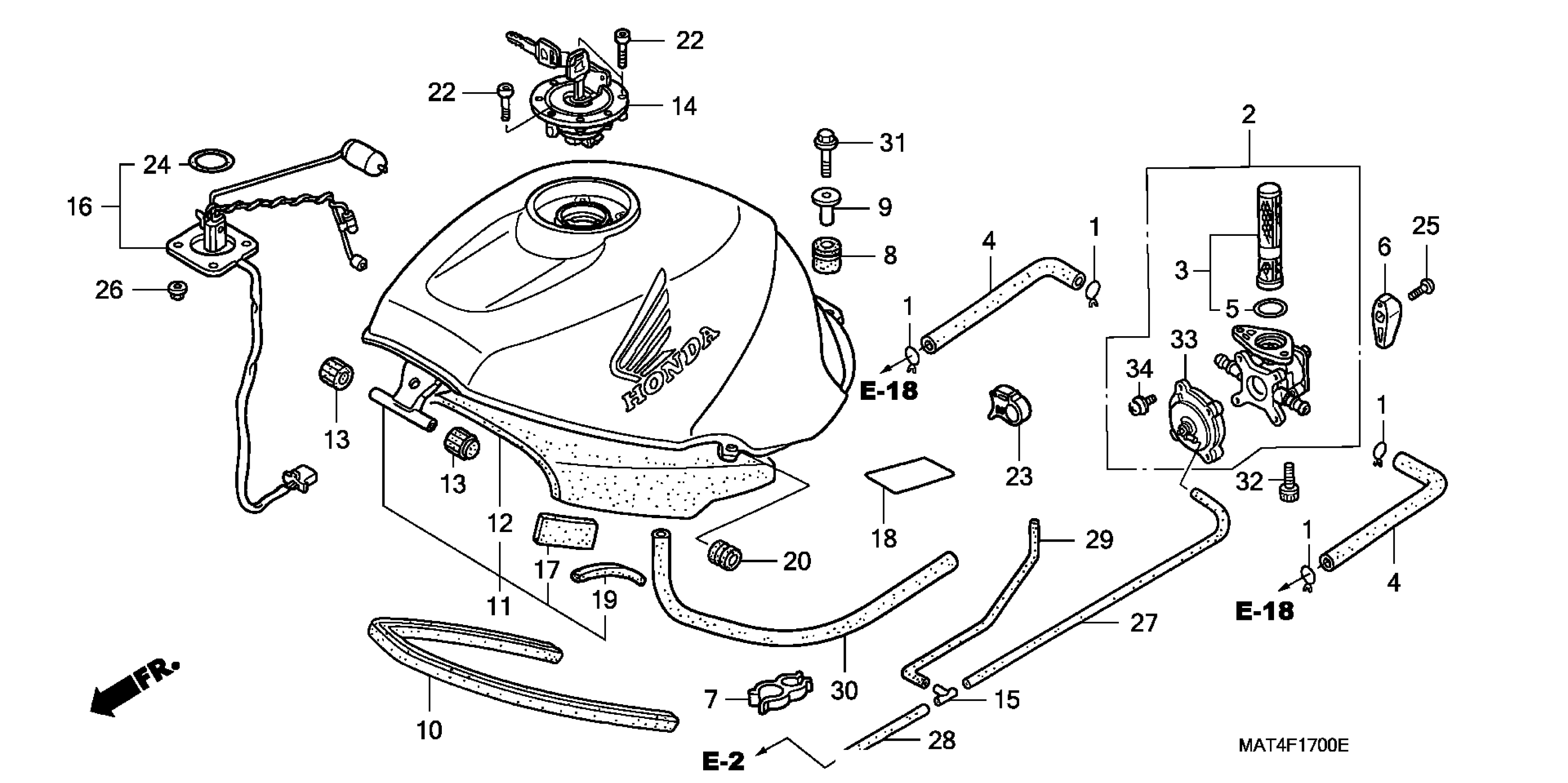

Honda CBR1100XXA (97) MOTORCYCLE, JPN, VIN# JH2SC350-VM000001 TO JH2SC350-VM002696 FUEL TANK 97-98 Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.48

2

PETCOCK ASSY. | Use up to Frame SN VM002152 This part replaces 16950-MAT-003.

16950-MBB-013

Unavailable

2

PETCOCK ASSY. This part replaces 16950-MBB-003.

16950-MBB-013

Unavailable

2

PETCOCK ASSY.

16950-MBB-013

Unavailable

3

SCREEN SET, FUEL STRAINER (NOT AVAILABLE) | Use up to Frame SN VM002152

16952-MAT-003

$24.06

3

SCREEN SET, FUEL STRAINER | Use from Frame SN VM002153

16952-MBB-003

$33.05

4

TUBE, FUEL

16955-MAT-000

Unavailable

5

O-RING (1.9X20.6) | Use from Frame SN VM002153

16075-GHB-870

$4.25

5

O-RING (1.9X20.6) | Use from Frame SN VM002153 This part replaces 16079-NC5-004.

16075-GHB-870

$4.25

5

O-RING | Use up to Frame SN VM002152

16958-MF2-880

Unavailable

6

LEVER, PETCOCK

16963-MAT-000

Unavailable

7

CLAMP, TUBE

17446-ML7-710

Unavailable

8

RUBBER, TANK MOUNTING

17508-MAT-000

Unavailable

9

COLLAR, TANK SETTING

17509-GZ4-670

$10.88

10

TRIM, FUEL TANK

17516-MAT-000

Unavailable

11

TANK SET, FUEL (TYPE1) (WL) This part replaces 17520-MAT-000ZE.

17520-MAT-840ZA

Unavailable

11

TANK SET, FUEL (TYPE1) (WL)

17520-MAT-840ZA

Unavailable

12

MAT, FUEL TANK

17528-MAT-300

Unavailable

13

CUSHION, FR. FUEL TANK

17611-HA5-000

$4.84

14

CAP COMP.,FUEL FILL This part replaces 17620-MT4-010.

17620-MT4-040

Unavailable

14

CAP COMP.,FUEL FILL This part replaces 17620-MT4-020.

17620-MT4-040

Unavailable

14

CAP COMP.,FUEL FILL This part replaces 17620-MT4-030.

17620-MT4-040

Unavailable

15

JOINT, AIR FILTER

36191-KV3-700

$13.06

16

FUEL UNIT SET

37010-MAT-000

Unavailable

17

PROTECTOR, HOSE

64233-MR7-300

Unavailable

18

TAPE, FUEL TANK PROTECTION

80116-MAT-000

$1.30

19

SEAL, FUEL TANK

81354-MAT-300

$1.91

20

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

22

BOLT, SOCKET (4X21)

90074-MT4-000

$2.83

23

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

24

O-RING (39.5X5)

91305-MC7-000

Unavailable

25

SCREW, PAN (5X14)

93500-05014-0A

$0.75

26

NUT, FLANGE (6MM)

94050-06080

$0.59

27

BULK HOSE, VACUUM (3.5X1000) (3.5X650)

95005-35001-20M

$8.69

28

BULK HOSE, VACUUM (4.5X1000) (4.5X220)

95005-45001-20M

$29.75

29

BULK HOSE, VACUUM (4.5X1000) (4.5X400)

95005-45001-20M

$29.75

30

BULK HOSE, VACUUM (8X1000) (8X450)

95005-80001-50M

$14.60

31

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

32

BOLT, SOCKET (6X16)

96600-06016-00

$1.58

33

COVER SET, PETCOCK This part replaces 16953-ML0-014.

16953-ML0-034

$45.77

33

COVER SET, PETCOCK This part replaces 16953-ML0-024.

16953-ML0-034

$45.77

33

COVER SET, PETCOCK

16953-ML0-034

$45.77

34

SCREW-WASHER (4X16)

93892-04016-08

$0.67

34

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.67
