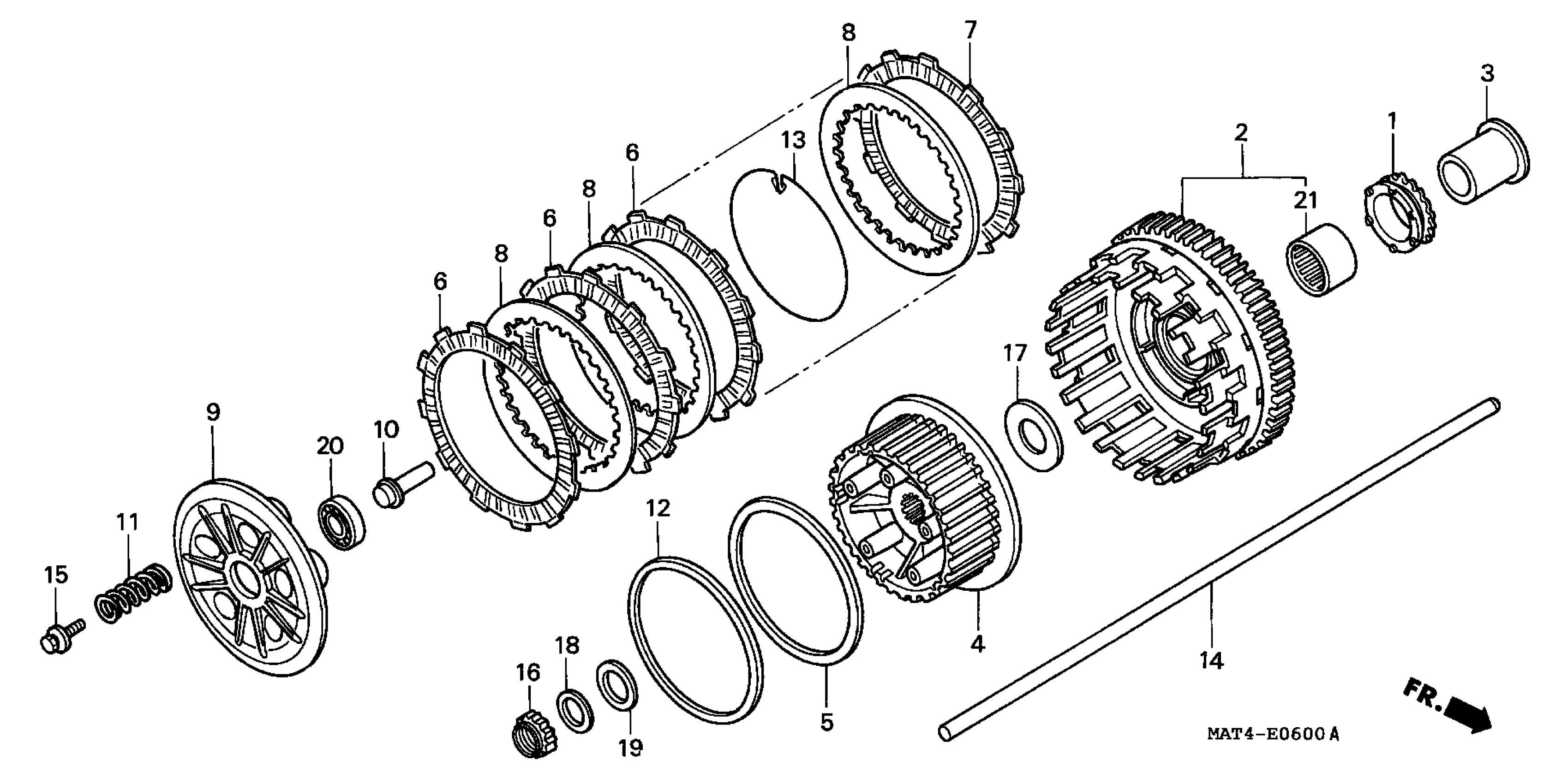

Honda CBR1100XXA (97) MOTORCYCLE, JPN, VIN# JH2SC350-VM000001 TO JH2SC350-VM002696 CLUTCH 97-98 Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T)

15131-MAL-A01

$55.26

1

SPROCKET, OIL PUMP DRIVE (26T) | Use up to Engine SN 2011355 This part replaces 15131-MAL-601.

15131-MAL-A01

$55.26

2

CLUTCH OUTER (NOT AVAILABLE)

22100-MAT-000

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MAT-000

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE)

22120-MAT-000

Unavailable

5

SEAT, JUDDER SPRING

22125-MAT-000

$12.10

6

DISK A, CLUTCH FRICTION

22201-MAT-000

$23.62

7

DISK B, CLUTCH FRICTION

22202-MAT-000

$21.43

8

PLATE, CLUTCH

22321-MAT-000

$14.99

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-MAT-000

Unavailable

10

PIECE, CLUTCH JOINT

22366-MAT-000

Unavailable

11

SPRING, CLUTCH

22401-MAT-000

$6.18

12

SPRING, JUDDER

22402-MAT-000

$24.22

13

CLIP, CLUTCH CENTER

22431-MAT-000

$12.33

14

ROD, CLUTCH LIFTER

22850-MAT-000

Unavailable

15

BOLT-WASHER (6X32)

90022-MAT-000

$4.89

16

NUT, LOCK (25MM)

90231-MS2-610

$18.78

17

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

18

WASHER, SPRING (25MM) (CHUO SPRING)

90432-MM8-003

$7.70

19

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.72

20

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

20

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

20

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

20

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

21

BEARING, NEEDLE (35X42X30)

91024-MW3-671

$103.98
