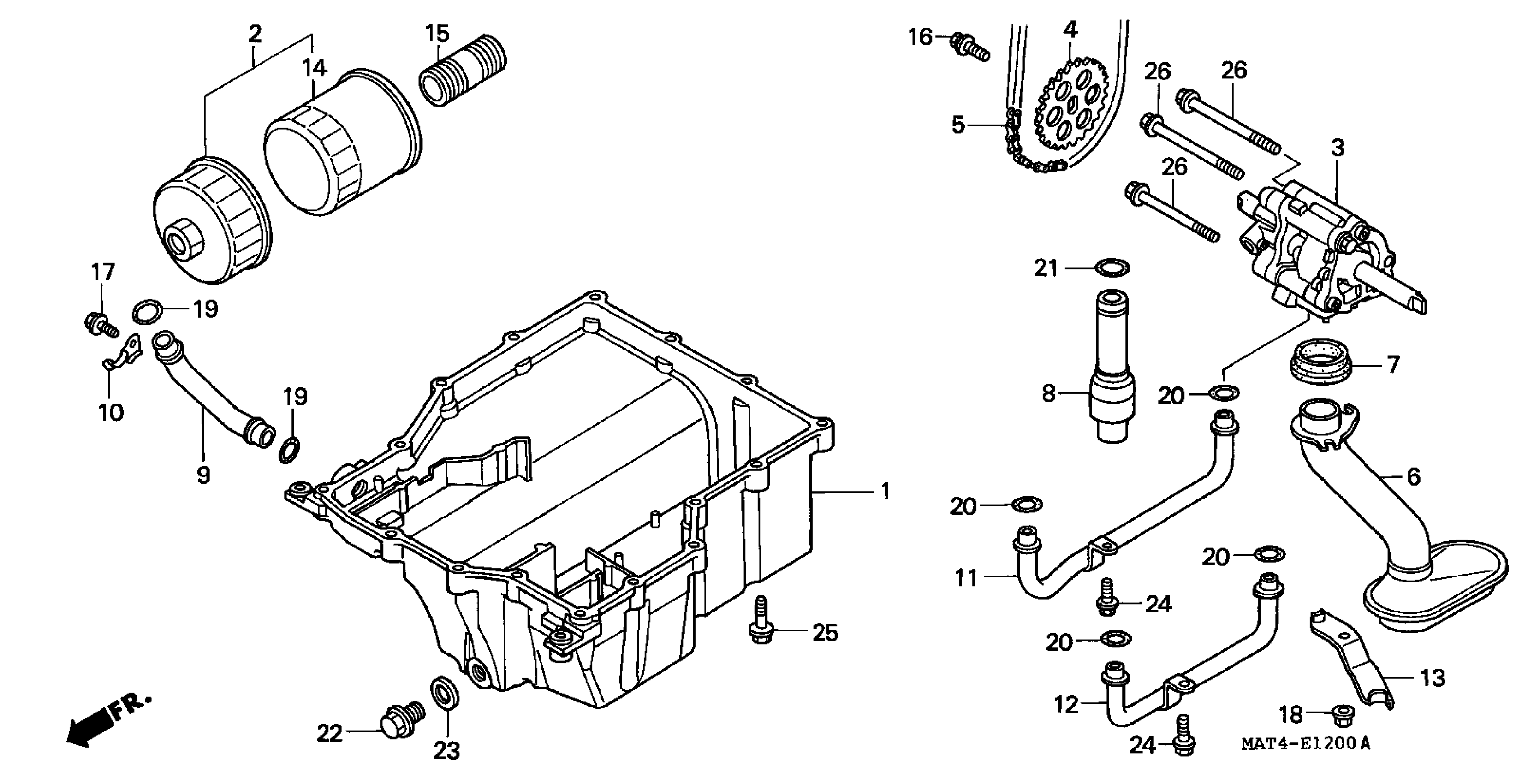

Honda CBR1100XXA (03) MOTORCYCLE, JPN, VIN# JH2SC350-3M600001 OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MAT-E20

Unavailable

2

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

2

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

3

PUMP ASSY., OIL

15100-MAT-000

Unavailable

4

SPROCKET, OIL PUMP DRIVEN (29T)

15134-MAT-000

Unavailable

5

CHAIN, OIL PUMP (DID 25H-56LE)

15140-MAT-003

$20.18

6

STRAINER, OIL

15150-MAT-000

$43.57

7

GASKET, OIL STRAINER

15154-MAT-000

$6.16

8

VALVE ASSY., RELIEF

15220-MAT-000

Unavailable

9

PIPE, OIL RETURN

15241-MAT-000

Unavailable

10

PLATE, STAY

15242-MAT-000

Unavailable

11

PIPE A, OIL

15310-MAT-000

$27.77

12

PIPE B, OIL

15320-MAT-000

$22.20

13

STAY, OIL PASSAGE PIPE

15331-MAT-000

$18.41

14

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

14

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

15

BOSS, OIL FILTER

90019-MB0-000

$8.61

16

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

17

BOLT, FLANGE (6X12) (CT200)

90029-MT4-000

$2.70

18

NUT, U (6MM)

90301-473-003

$4.07

19

O-RING (14.6X3.6) (NOK)

91308-MA6-005

$4.19

19

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

20

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

21

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

21

O-RING (14.8X2.2)

91313-MG7-004

$3.67

22

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

24

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

25

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

26

BOLT, FLANGE (6X85)

95701-06085-00

$1.64
