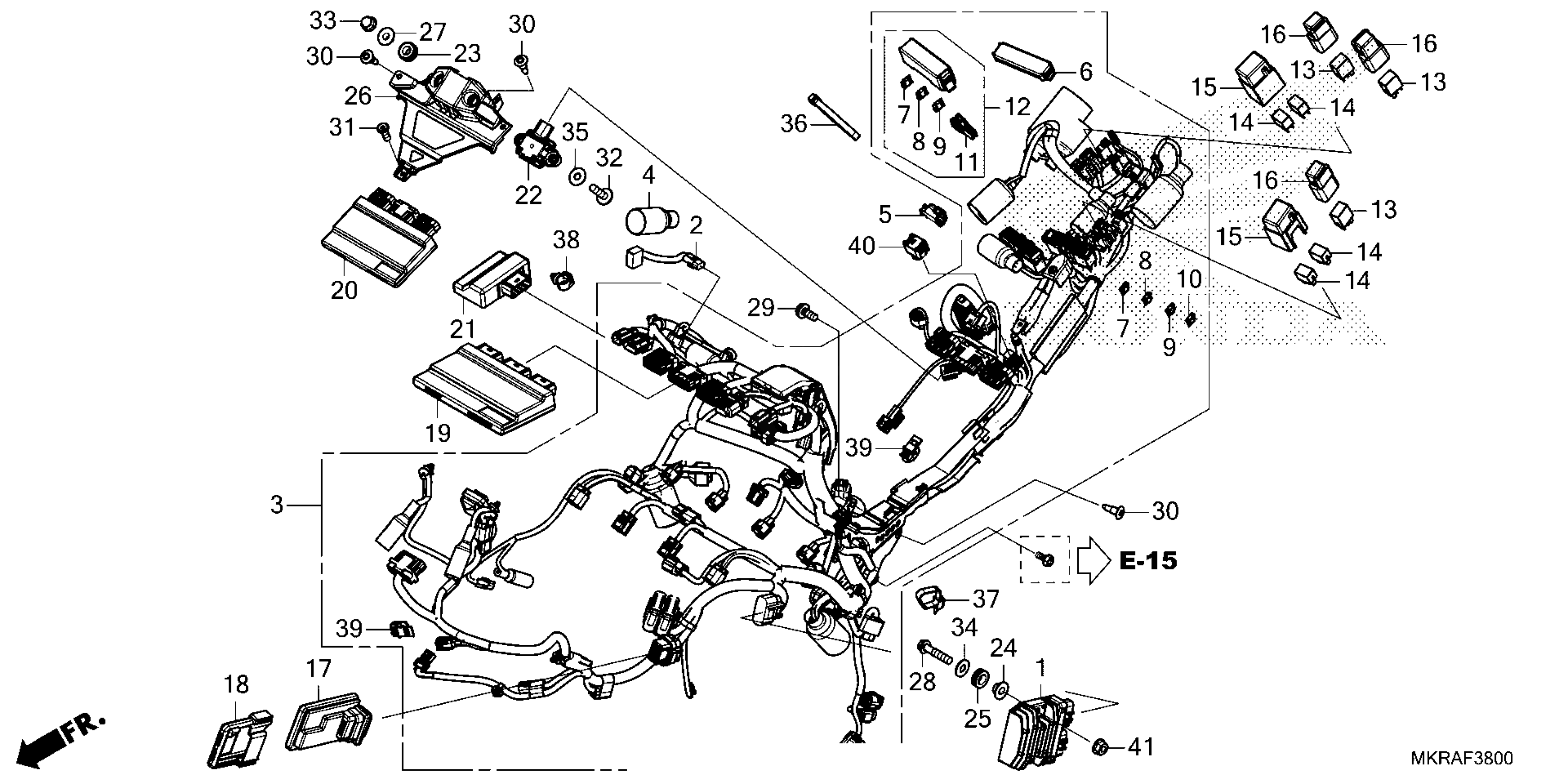

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$194.27

CONDENSER

31700-K98-E20

$12.03

WIRE HARNESS

32100-MKR-DH0

$1,499.33

COVER, WIRE HARNESS CONNECTOR

32108-GZ8-620

Unavailable

CAP, DUMMY (2P) (RED)

32606-KCW-J91

$3.31

COVER, FUSE BOX

38201-MKR-DH1

$5.23

FUSE, BLADE (7.5A)

38221-SNA-A31

$3.11

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

FUSE, BLADE (30A)

38221-SNA-A81

$2.49

PULLER, MINI FUSE

38235-SNA-A01

$3.84

COVER, FUSE BOX

38255-MKR-DH1

$22.39

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$13.02

COVER, RELAY (2P)

38506-KZZ-900

$3.72

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.86

CONTROL UNIT, SUSP

38651-MKR-DH1

$820.10

CUSION, SUSPENSION CONTROL UNIT

38656-MKF-D60

$8.87

PGM-FI UNIT

38770-MKR-AH2

$1,327.62

PGM-TBW UNIT

38790-MKR-UH2

$668.75

CONTROL UNIT, BODY

38950-MKR-A31

$311.31

SENSOR ASSY. (3GYRO & 3G)

39960-MKS-E01

$460.84

RUBBER, SENSOR MOUNTING

39963-MKF-D41

$4.11

COLLAR, HORN SETTING

61105-KEV-900

$1.49

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

COVER, ECU

80106-MKR-DH0

$16.46

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

BOLT, FLANGE (6X28)

90020-GHB-690

$2.33

BOLT, FLANGE (6X14)

90030-GHB-630

$2.23

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

BOLT, SPECIAL (5X14)

90117-MKF-D40

$2.54

SCREW, PAN (6X22)

90130-KYJ-900

$1.49

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.72

WASHER (6.1MM)

90535-MKE-A00

$2.48

BAND, WIRE HARNESS

90620-SB2-003

$24.63

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.47

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$8.77

NUT, FLANGE (6MM)

94050-06000

$1.49
