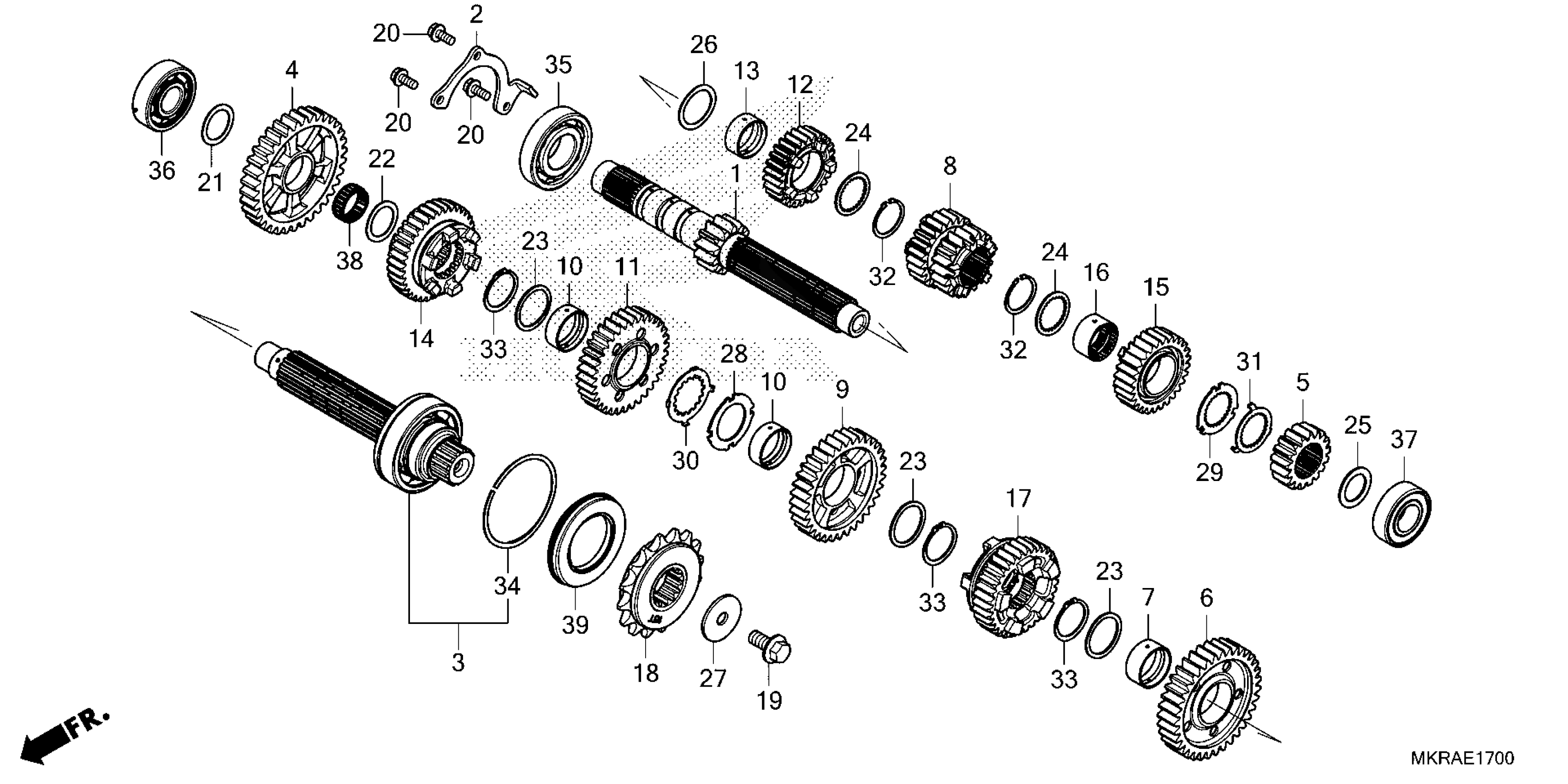

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 TRANSMISSION Diagram

MAINSHAFT (13T)

23211-MKR-DH0

$141.97

PLATE, BEARING SETTING

23212-MKR-D10

$10.28

COUNTERSHAFT

23220-MKR-D11

$272.28

GEAR (32T)

23421-MKR-DH0

$96.07

GEAR (19T)

23431-MKR-DH0

$48.33

GEAR (37T)

23441-MKR-DH0

$92.20

COLLAR (30X14.5)

23442-MKR-D10

$13.15

GEAR (20T/22T)

23451-MKR-DH0

$115.52

GEAR (33T)

23461-MKR-DH0

$96.07

COLLAR, SPLINE (30X12)

23462-MGE-000

$13.30

GEAR (32T)

23481-MKR-DH0

$96.07

GEAR (24T)

23491-MKR-DH0

$81.82

COLLAR (28X13)

23495-MM5-000

$23.00

GEAR (31T)

23501-MKR-DH0

$99.11

GEAR (25T)

23511-MKR-DH0

$93.79

COLLAR, SPLINE (28X16.2)

23512-MKR-D10

$18.61

GEAR (29T)

23521-MKR-DH0

$95.66

SPROCKET, DRIVE (16T)

23801-MKR-D10

$59.92

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

BOLT, FLANGE (6X14) (10.9)

90037-RYX-010

$2.90

WASHER, THRUST (20MM)

90401-HP0-A00

$4.37

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

WASHER, SPLINE (28X27X1)

90452-MKR-D10

$3.39

WASHER (22X32X1.5)

90453-KSR-A00

$2.54

WASHER, THRUST (28MM)

90458-729-920

$5.34

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

WASHER, SPLINE (28X27X1)

90463-MKR-D10

$6.02

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

WASHER, LOCK (28X27X1.5)

90464-MKR-D10

$4.66

CIRCLIP (28MM)

90603-MN4-000

$4.11

CIRCLIP (30MM)

90604-MM5-000

$4.48

RING, SNAP (72MM)

90605-MM5-000

$9.05

BEARING, RADIAL BALL (28X62X16) (FUJIKOSHI)

91002-MKR-D11

$36.38

BEARING, SPECIAL (20X52X15)

91003-MFL-003

$18.70

BEARING, RADIAL BALL (22X47X14)

91004-KSC-671

$13.84

BEARING, NEEDLE (24X28X10)

91026-MJE-D01

$14.11

OIL SEAL (45X72X8)

91207-MAT-003

$17.77
