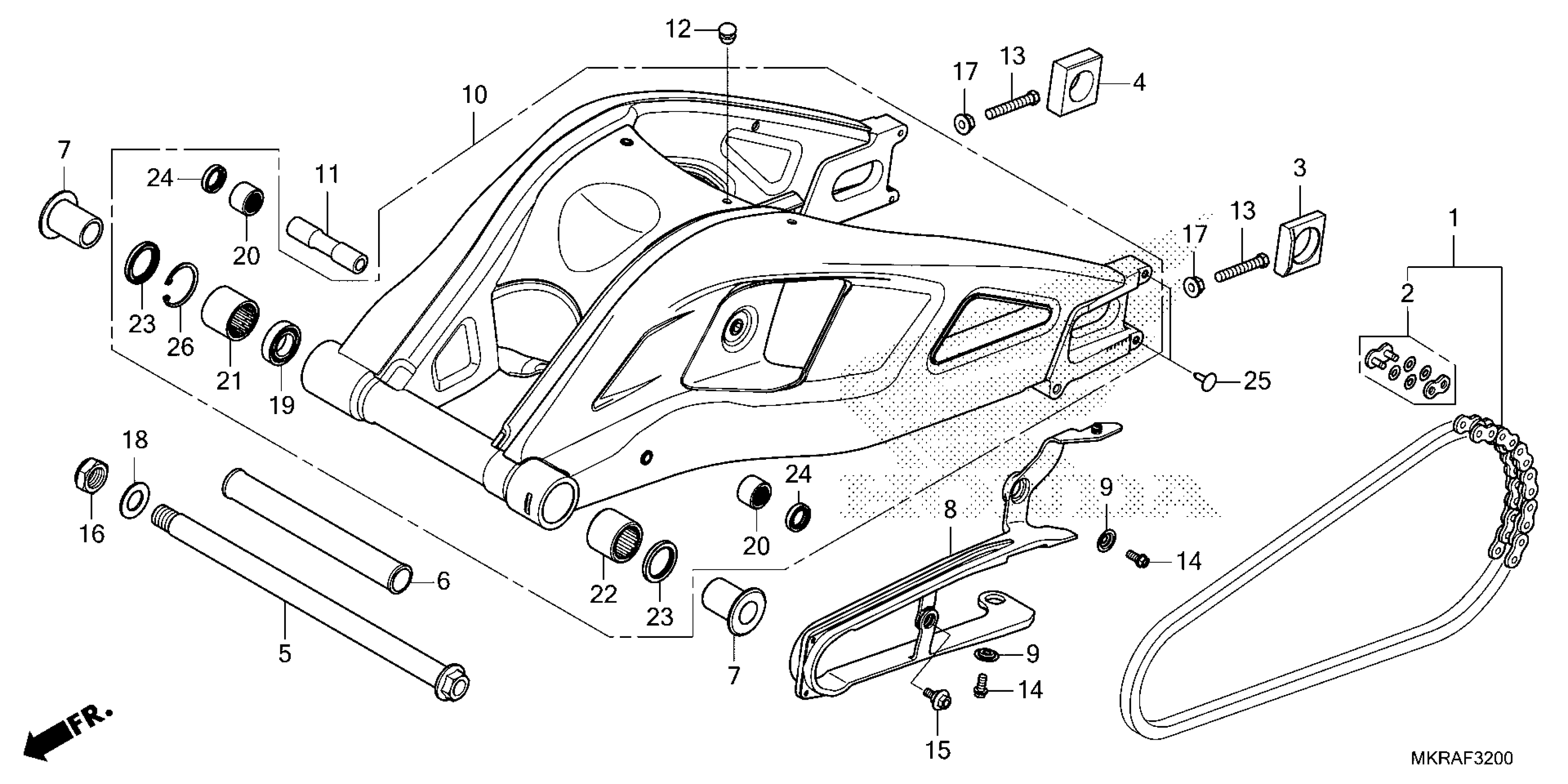

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (DID525HV3KAI-120ZH) (DAIDO)

40530-MKR-A31

$205.72

1

CHAIN, DRIVE

40530-MKR-DH2

$161.74

2

MASTER LINK (RK JAPAN)

40535-MKF-D42

$10.90

2

MASTER LINK (DAIDO)

40535-MKR-D11

$10.04

3

COLLAR, L. RR. AXLE

42305-MKF-D40

$31.96

4

COLLAR, R. RR. AXLE

42306-MKF-D40

$26.16

5

BOLT, SWINGARM PIVOT

52101-MKR-D10

$58.60

6

COLLAR, CENTER PIVOT DISTANCE

52141-MKR-D10

$25.60

7

COLLAR, PIVOT DISTANCE

52142-MKR-D10

$28.44

8

SLIDER, CHAIN

52170-MKR-D10

$53.25

9

WASHER, CHAIN SLIDER

52171-MFJ-D00

$2.04

10

SWINGARM SUB, RR.

52200-MKR-DH0

$1,841.59

11

COLLAR

52462-MKR-DH0

$9.59

12

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.79

13

BOLT, HEX. (8X50)

90107-MFL-D20

$2.66

14

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.13

15

BOLT, CHAIN SLIDER

90130-MCJ-750

$2.92

16

NUT, U (18MM)

90306-MCS-G01

$6.51

17

NUT, HEX. (10MM)

90309-357-000

$3.25

18

WASHER (18X32X2)

90401-KZ4-890

$4.28

19

BEARING, RADIAL BALL (20X37X9)

91054-MGS-D31

$9.25

20

BEARING (17X24X17)

91071-K45-NL1

$12.22

21

BEARING, NEEDLE

91071-MBW-E11

$15.79

22

BEARING, NEEDLE

91071-MR7-003

$23.57

23

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

24

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91

25

CLIP, BRUSH

91540-MEC-000

$3.37

26

CIRCLIP (INNER) (37MM)

94520-37000

$2.46
