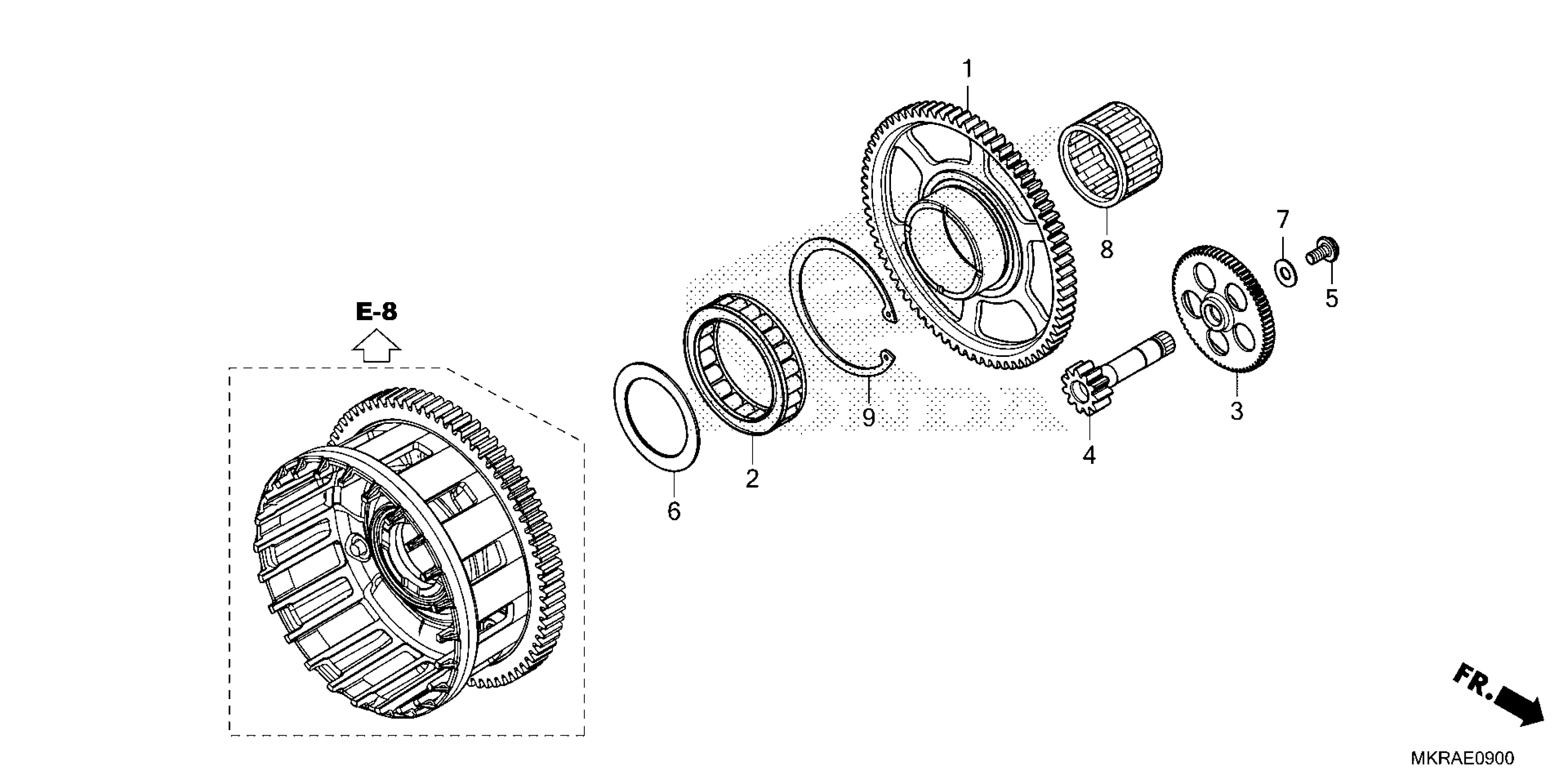

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 STARTING CLUTCH Diagram

GEAR, STARTER DRIVEN (72T)

28110-MKR-D10

$151.84

CLUTCH, ONE-WAY

28126-MKR-D11

$173.21

GEAR A, STARTING REDUCTION (68T)

28131-MKR-D10

$61.25

GEAR B, STARTING REDUCTION (11T)

28132-MKR-D10

$52.22

BOLT, FLANGE (6X12)

90023-MJT-E00

$14.24

WASHER (45.2X62X1.5)

90403-MKR-D10

$6.31

WASHER, DRUM STOPPER

90417-360-000

$1.60

BEARING, NEEDLE (45X49X25) (NTN)

91021-MKR-D11

$14.97

CIRCLIP (INNER) (75MM)

94520-75150

$3.22
