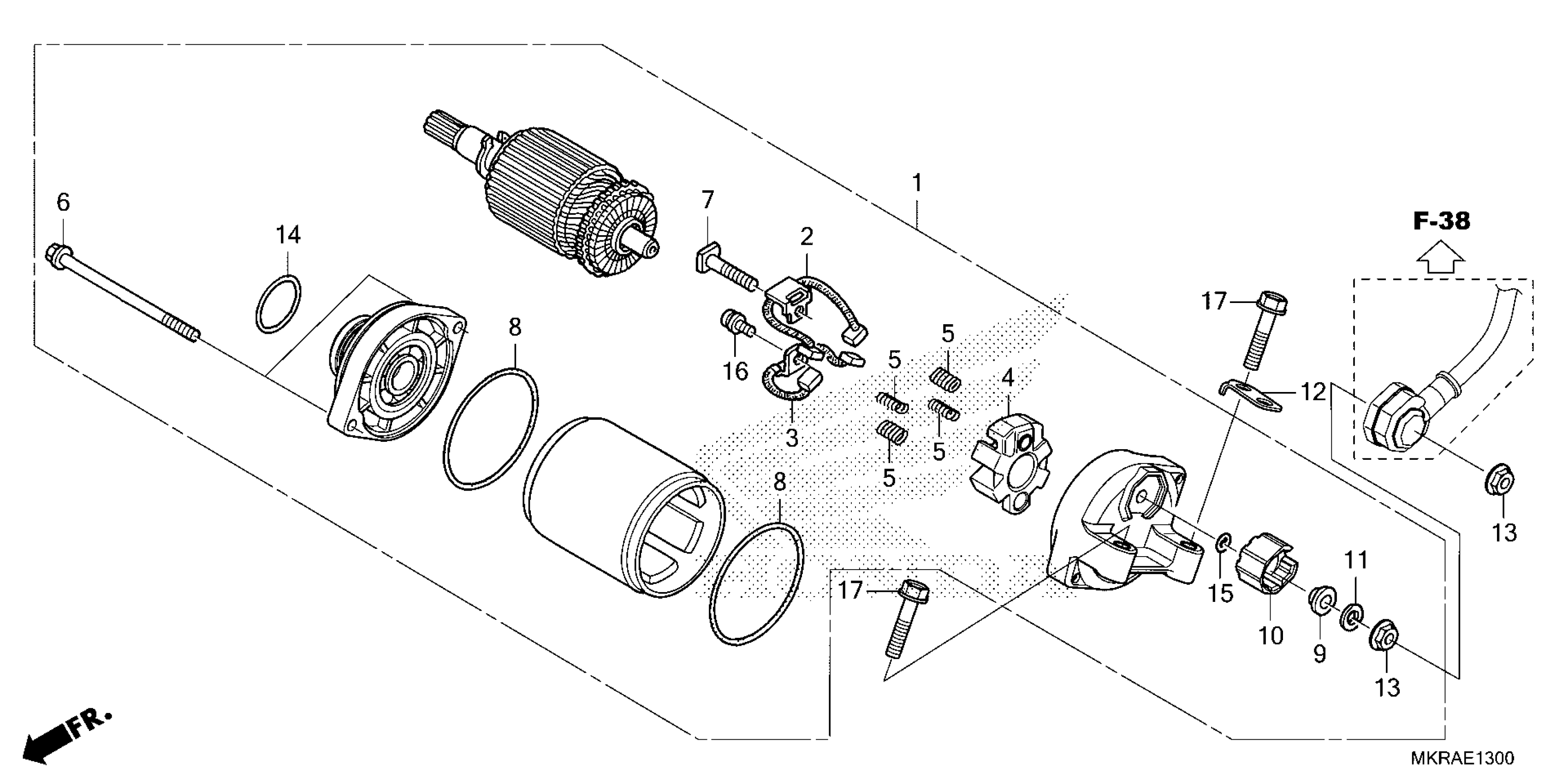

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 STARTER MOTOR Diagram

STARTER MOTOR ASSY.

31200-MKR-D11

$442.07

BRUSH SET A, CARBON (Honda Code 8476772)

31201-MEW-921

$7.43

BRUSH SET B, CARBON (Honda Code 8476780)

31202-MEW-921

$12.01

HOLDER, BRUSH (Honda Code 8614117)

31203-MEW-921

$7.14

SPRING, CARBON BRUSH (Honda Code 8476798)

31204-MEW-921

$11.58

BOLT, SETTING

31205-MFJ-D01

$3.41

BOLT, TERMINAL

31206-MEW-921

$2.71

RING

31207-HP5-601

$1.99

INSULATOR (Honda Code 8476822)

31208-MEW-921

$7.07

STOPPER, TERMINAL (Honda Code 8476830)

31209-MEW-921

$10.50

WASHER

31210-MEW-921

$1.68

STAY, HARNESS CLIP

32156-MJP-G50

$3.79

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184)

91320-MB0-000

$2.24

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.06

BOLT, FLANGE (6X28)

95801-06028-00

$1.68
