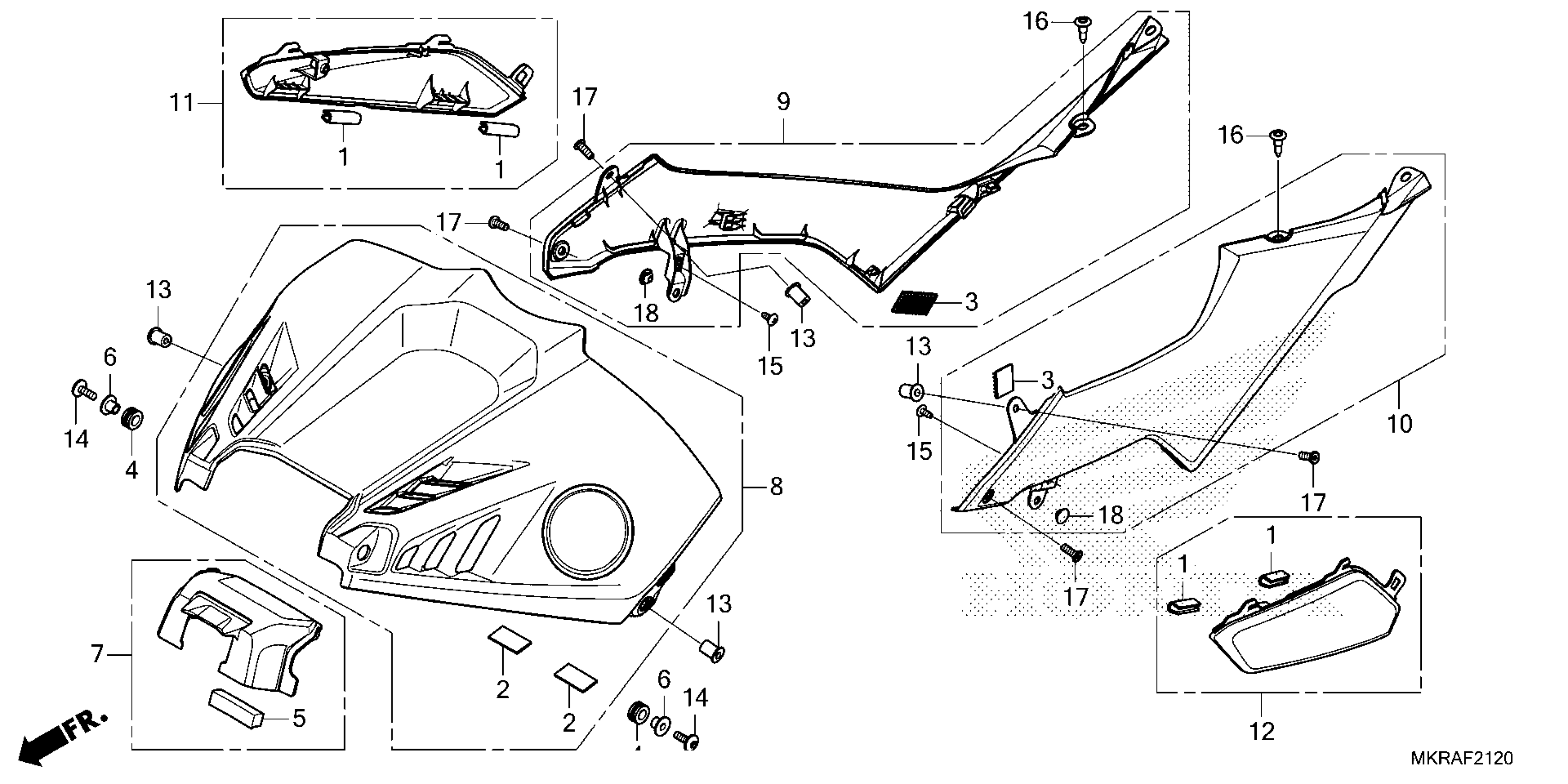

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 SHELTER Diagram

TRIM, FUEL TANK

17516-HC4-000

$3.90

FASTENER B, DUAL LOCK (15X30)

17542-K64-N00

$3.64

FASTENER B, DUAL LOCK (20X30)

17581-MGZ-J00

$2.44

RUBBER, MOUNTING

19639-GBC-000

$1.49

MAT C, L. RR. COVER (LOWER)

64604-MFJ-J00

$2.02

COLLAR, TAILLIGHT MOUNT

77219-MBZ-K00

$2.10

COVER ASSY., ESL

83140-MKR-D10

$10.25

SHELTER, FR. *R380*

83150-MKR-DH0ZA

$314.84

CVR, R. SIDE *R380*

83160-MKR-DH0ZA

$121.36

CVR, L. SIDE *R380*

83170-MKR-DH0ZA

$121.36

COVER ASSY., R. FRAME

83180-MKR-D10

$20.69

COVER ASSY., L. FRAME

83190-MKR-D10

$20.69

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

SCREW, TAPPING (4X10)

90114-MJK-N20

$2.26

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

BOLT, SPECIAL (5X14)

90117-MKF-D40

$2.54

PLUG, HOLE

90852-446-630

$2.56
