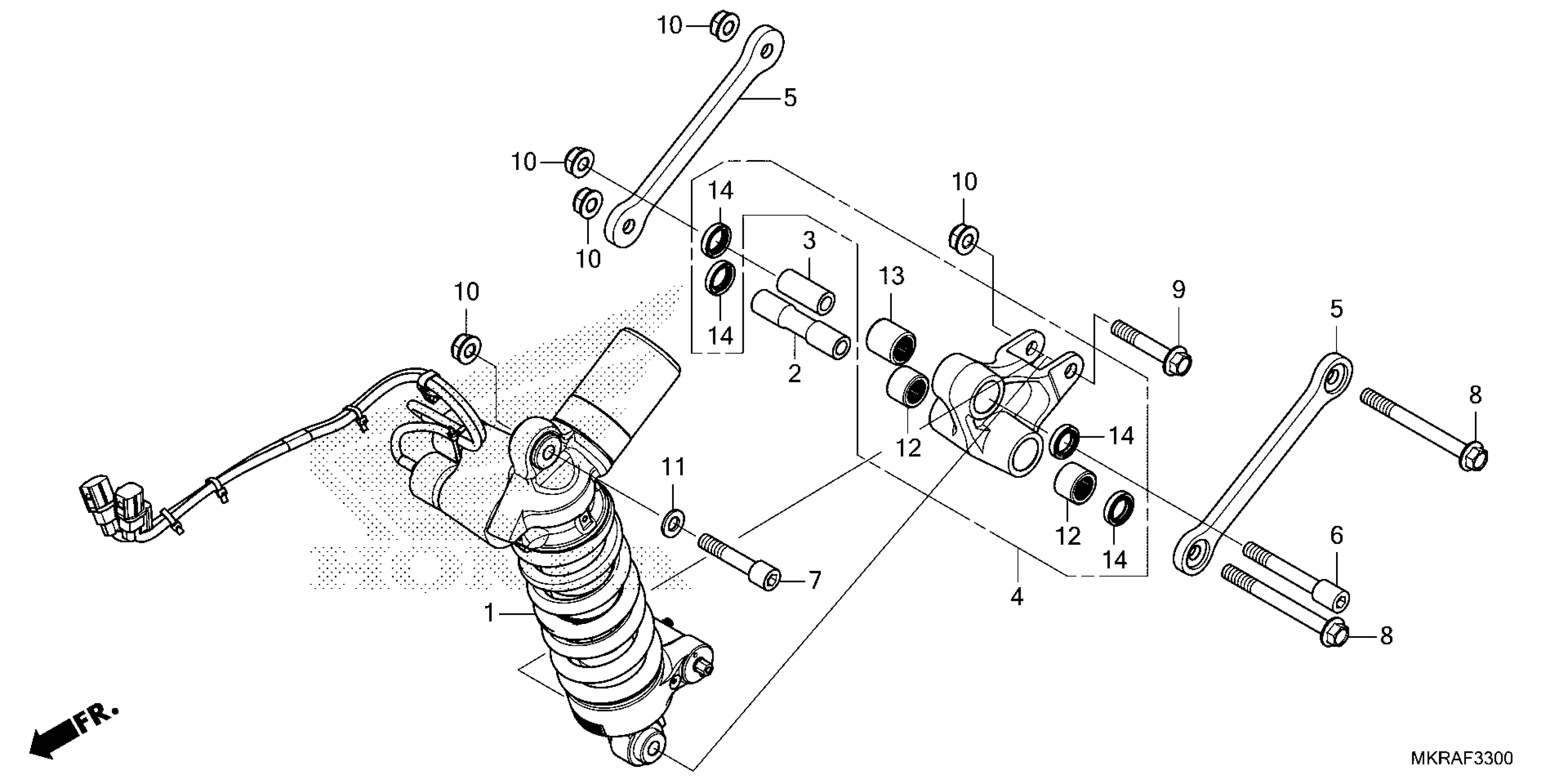

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR.

52430-MKR-DH0

$3,285.07

2

COLLAR

52462-MKR-DH0

$9.59

3

COLLAR, CUSHION ARM

52463-MKR-DH0

$8.04

4

ARM SUB-ASSY., RR. SHOCK ABSORBER

52465-MKR-D10

$260.62

5

PLATE

52471-MKR-DH0

$20.29

6

BOLT, SOCKET (10X70)

90107-MFJ-D00

$7.44

7

BOLT, SOCKET (10X52)

90111-MGS-D30

$5.20

8

BOLT, FLG (10X101)

90121-MKR-DH0

$5.56

9

BOLT, FLANGE (10X56)

90123-MKR-D10

$2.99

10

NUT, AXLE (10MM)

90304-GA6-003

$2.66

11

WASHER (10MM)

90410-HC4-000

$3.65

12

BEARING (17X24X17)

91071-K45-NL1

$12.22

13

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.84

14

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91
