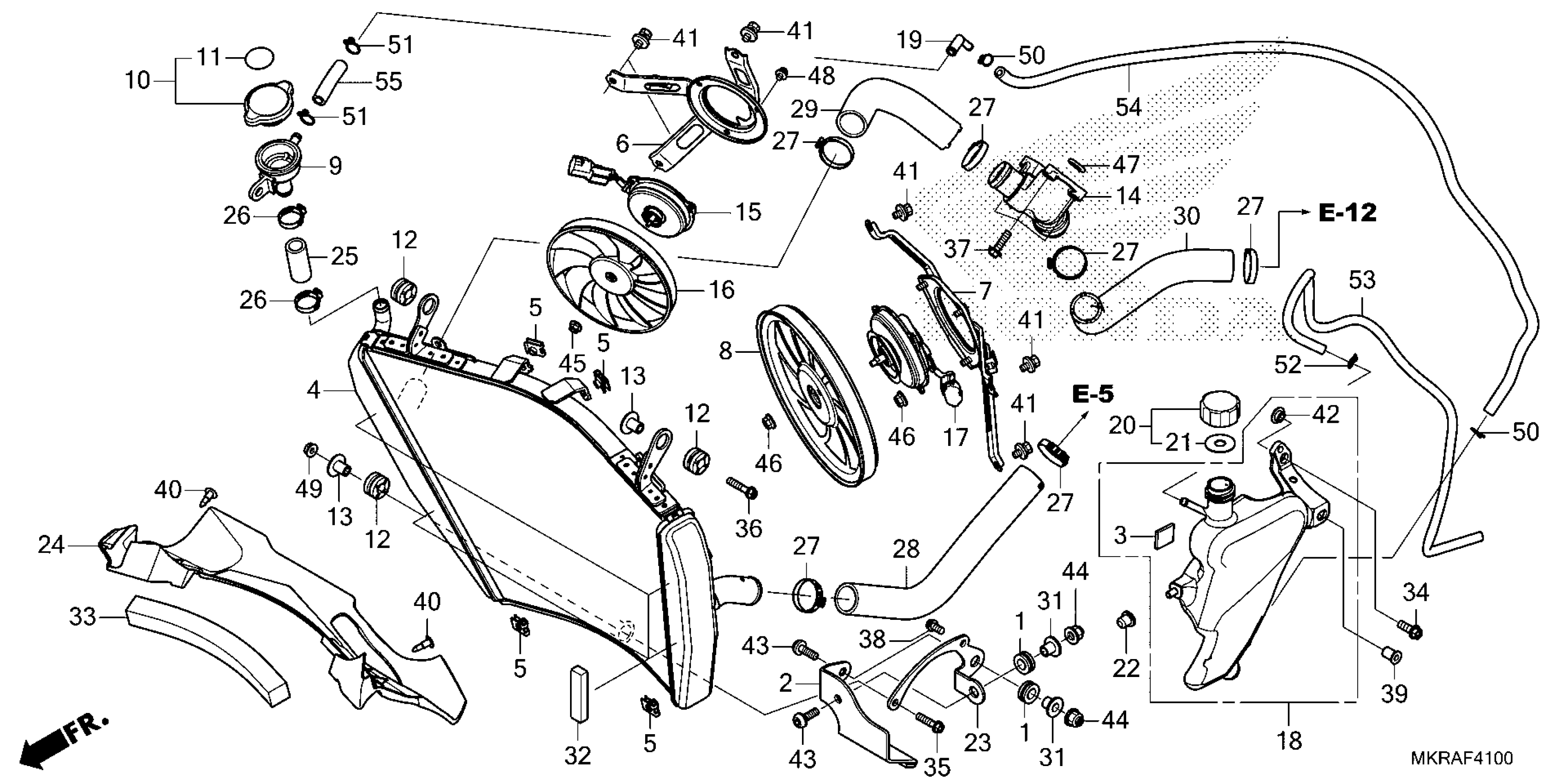

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 RADIATOR Diagram

#

Description
Price

1

RUBBER

15612-MKR-DH0

$4.51

2

GUARD

15653-MKR-D80

$34.38

3

RUBBER, FUEL TANK

17525-GBC-300

$1.95

4

RADIATOR

19010-MKR-D11

$1,002.51

5

NUT, SETTING (6MM)

19014-KEA-003

$3.10

6

SHROUD, R.

19015-MKR-D11

$36.98

7

SHROUD, L.

19016-MKR-D11

$51.31

8

FAN, COOLING

19020-MFA-D01

$40.72

9

FILLER, NECK

19035-KVZ-631

$27.82

10

CAP, RADIATOR

19037-GEE-710

$30.28

11

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

12

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

13

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

14

JOINT, WATER BYPASS

19070-MKR-D10

$61.59

15

MOTOR ASSY., FAN

19080-MKR-D61

$186.74

16

FAN, COOLING

19090-MKR-D11

$36.70

17

MOTOR ASSY., FAN

19090-MKR-D61

$261.43

18

TK, RADIATOR RESERVE

19101-MKR-DH0

$31.03

19

JOINT, TUBE

19103-ML7-000

$6.22

20

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

21

GASKET, RESERVE TANK

19107-MG8-000

$5.05

22

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.47

23

STAY, RADIATOR

19113-MKR-DH0

$8.07

24

COVER, RADIATOR (UPPER)

19120-MKR-D10

$24.15

25

HOSE, FILLER NECK

19504-MKR-D10

$5.56

26

CLAMP, HOSE (D19)

19511-MKF-D41

$10.61

27

CLAMP, HOSE (D29.8)

19514-MKF-D41

$10.24

28

HOSE, THERMOSTAT

19551-MKR-D10

$24.72

29

HOSE, RADIATOR

19561-MKR-D10

$23.36

30

HOSE, WATER PUMP

19571-MKR-D10

$32.49

31

COLLAR C, RR. TURN SIGNAL

33614-MEC-650

$2.56

32

MAT, FR. CENTER COWL

64213-MEJ-J00

$2.02

33

SEAL, FUEL TANK

83155-HP6-A00

$6.82

34

BOLT, FLANGE (6X16)

90020-GHB-640

$2.26

35

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

36

BOLT, FLANGE (6X28)

90020-GHB-690

$2.33

37

BOLT, FLANGE (6X22)

90027-GHB-670

$2.25

38

BOLT, FLANGE (6X16)

90030-GHB-640

$2.33

39

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

40

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

41

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

42

COLLAR (6X4)

90127-KF0-770

$3.42

43

BOLT, SPECIAL (6X18) (SUS)

90132-MFJ-D00

$2.31

44

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

45

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

46

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

47

O-RING (19X2)

91303-MKR-D11

$2.02

48

SCREW-WASHER (4X8)

93893-04008-07

$1.49

49

NUT, FLANGE (6MM)

94050-06000

$1.49

50

CLIP, TUBE (B10)

95002-02100

$1.90

51

CLIP, TUBE (B12)

95002-02120

$2.00

52

CLIP, TUBE (C9)

95002-50000

$1.49

53

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

$20.85

54

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

55

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45
