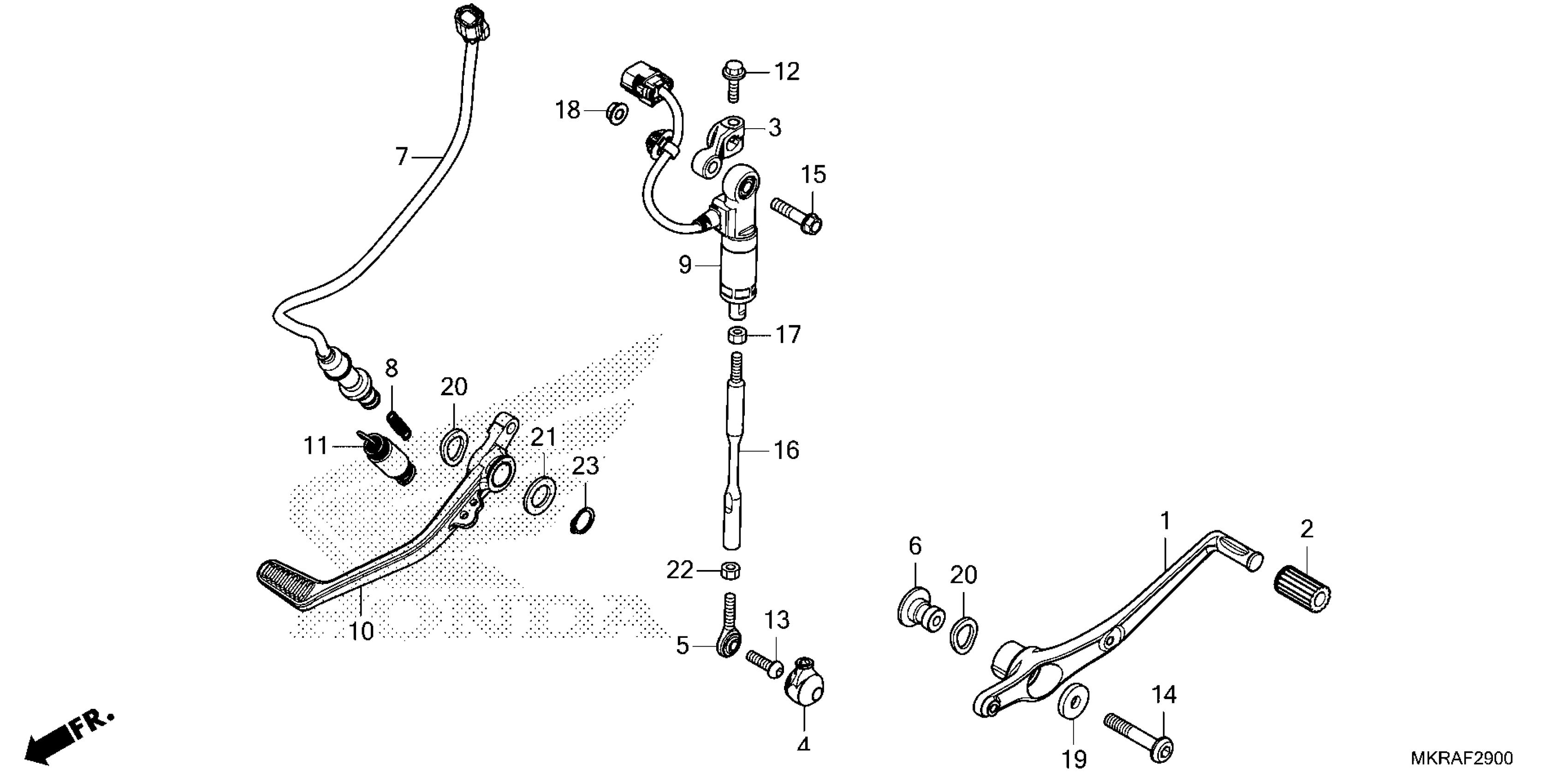

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 PEDAL Diagram

PEDAL, GEARSHIFT

24701-MKR-DH0

$81.77

RUBBER, GEARSHIFT PEDAL

24705-MKR-D10

$3.34

ARM, GEARSHIFT

24711-MKR-D30

$33.92

COVER, DUST

24722-MKR-D10

$7.51

TIE ROD (A)

24723-MKR-D10

$52.54

COLLAR, CHANGE PIVOT

24731-MKR-D10

$19.07

SWITCH, RR. STOP

35350-MKR-DH1

$28.21

SPRING, STOP SWITCH

35357-MBR-000

$2.39

SENSOR ASSY., STROKE

36390-MKR-D31

$1,287.80

PEDAL, RR. BRAKE

46500-MKR-D10

$131.66

SPRING ASSY., BRAKE PEDAL

46515-MKR-D10

$5.93

BOLT, FLANGE (6X20)

90021-MKF-D40

$2.18

BOLT, SOCKET (6X22)

90104-MGH-640

$2.92

BOLT, SOCKET (8X45)

90109-MBT-611

$3.79

BOLT, FLANGE (7X30)

90115-MKF-D60

$3.13

BAR, CHANGE

90165-MKR-D30

$24.46

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

NUT, FLANGE (7MM)

90202-KV3-000

$2.11

WASHER, PLAIN (8MM)

90501-MKR-D10

$4.00

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$4.03

WASHER (15.2X25)

90557-230-000

$2.39

NUT, HEX. (6MM)

94001-06080-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49
