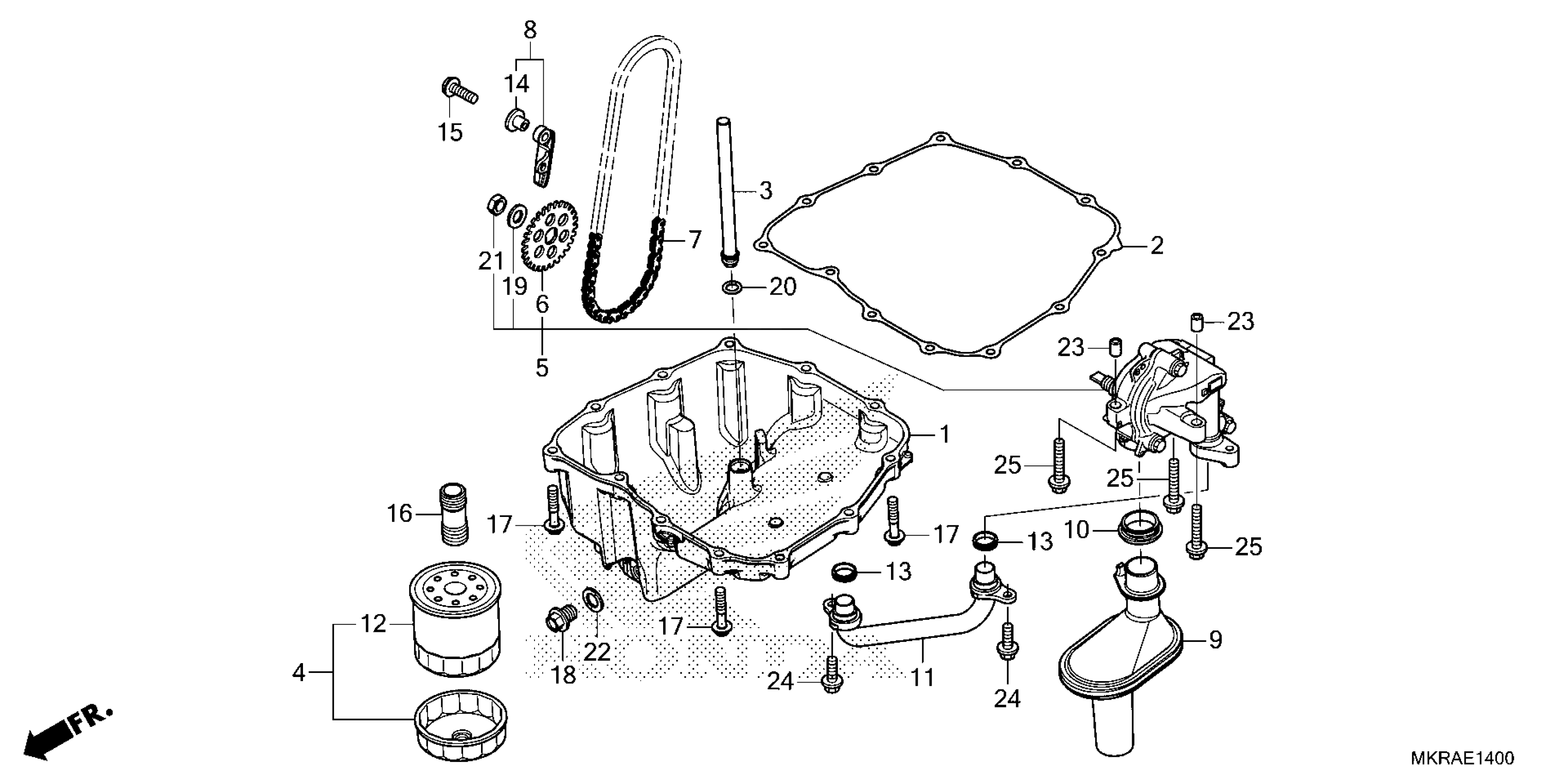

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 OIL PAN@OIL PUMP Diagram

PAN, OIL

11210-MKR-D10

$384.69

GASKET, OIL PAN

11215-MKR-D11

$13.89

PIPE, OIL BREATHER

11530-MKR-D10

$13.84

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

PUMP SET, OIL

15100-MKR-305

$260.93

SPROCKET, OIL PUMP DRIVEN (30T)

15134-MKR-D10

$45.62

CHAIN, OIL PUMP (72L)

15141-MFL-003

$19.35

GUIDE, OIL PUMP CHAIN

15146-MFL-000

$7.25

STRAINER, OIL

15150-MKR-D10

$38.00

GASKET, OIL STRAINER

15154-MAT-000

$6.16

PIPE, OIL

15310-MKR-D10

$79.44

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

SEAL, RING

15433-MKR-D11

$2.64

COLLAR, FR. FENDER

61107-MCR-D00

$2.25

BOLT, FLANGE (6X20)

90011-MFL-000

$1.89

BOSS, OIL FILTER

90019-MKR-D10

$7.10

BOLT, FLANGE (6X30)

90027-GHB-700

$2.31

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

WASHER (10MM)

90410-KR0-000

$2.67

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

NUT, HEX. (10MM)

94002-10200-0S

$1.49

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
