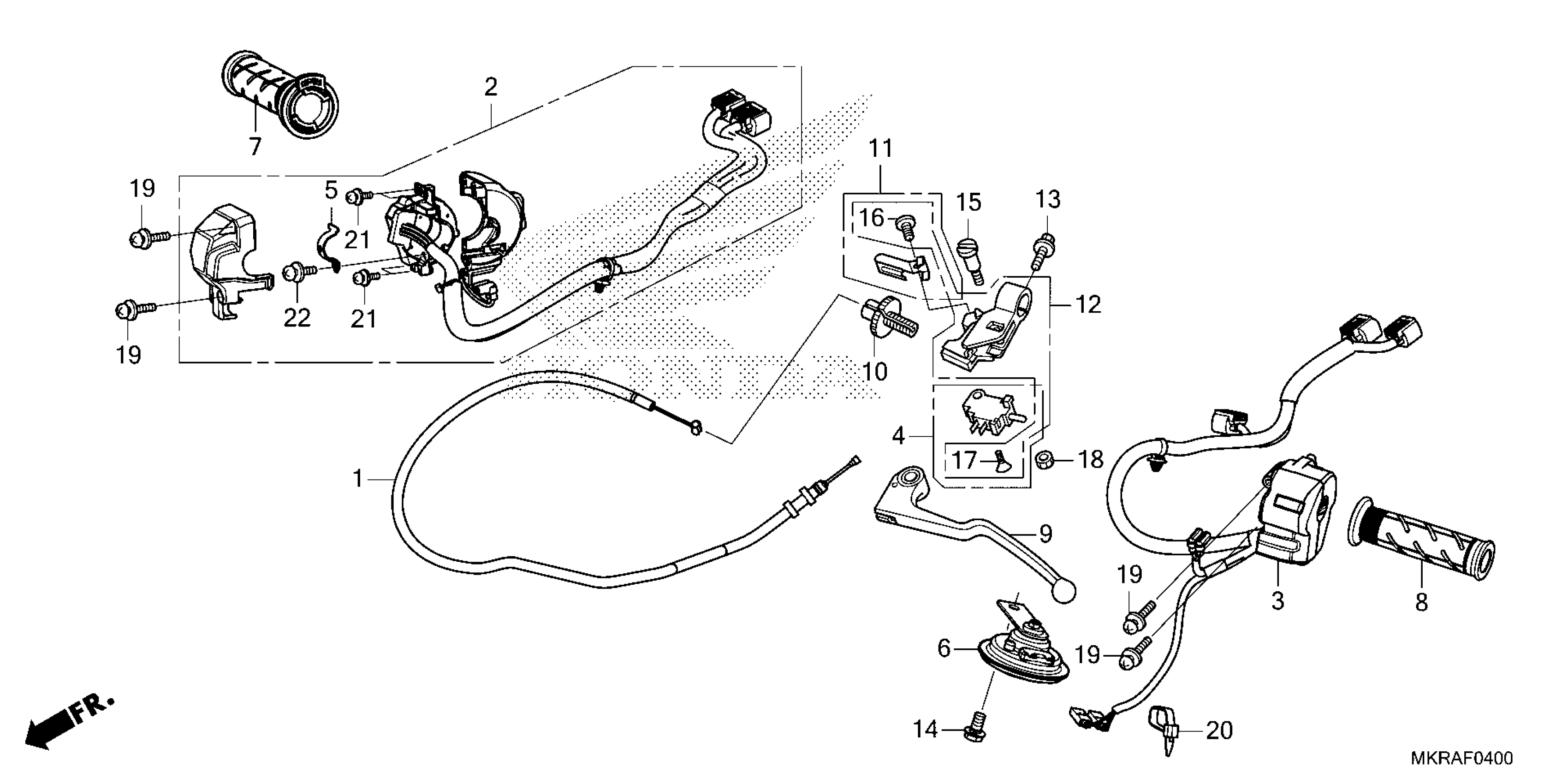

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE, CLUTCH

22870-MKR-DH1

$18.13

SWITCH UNIT

35135-MKR-DH1

$168.72

SW, TURN SIGNAL

35200-MKR-D32

$324.13

SWITCH SET, CLUTCH

35335-MCJ-751

$13.10

PLATE A, SETTING

37971-MKR-D31

$4.18

HORN (HIGH)

38110-MKR-D11

$50.57

GRIP ASSY., THROTTLE

53140-MKR-D32

$24.73

GRIP, L. HANDLE

53166-MY9-890

$16.22

LEVER, L. HANDLE

53182-MKR-D31

$31.72

BOLT, CABLE ADJUSTING

53183-MCJ-750

$7.13

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$3.84

BRACKET SET, CLUTCH LEVER

53195-MCJ-751

$23.42

BOLT, FLANGE (6X20)

90021-GHB-660

$2.09

BOLT, FLANGE (8X14)

90036-GHB-630

$2.06

BOLT, LEVER PIVOT

90122-MCJ-750

$4.59

SCREW, PAN (4X10)

90123-MCJ-751

$0.85

SCREW, FLAT (3X16)

90124-MCJ-752

$0.57

NUT, U (6MM)

90301-MCJ-750

$2.09

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

SCREW-WASHER (4X8)

93892-04008-08

$1.06

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.06

SCREW-WASHER (5X16)

93892-05016-08

$1.04
