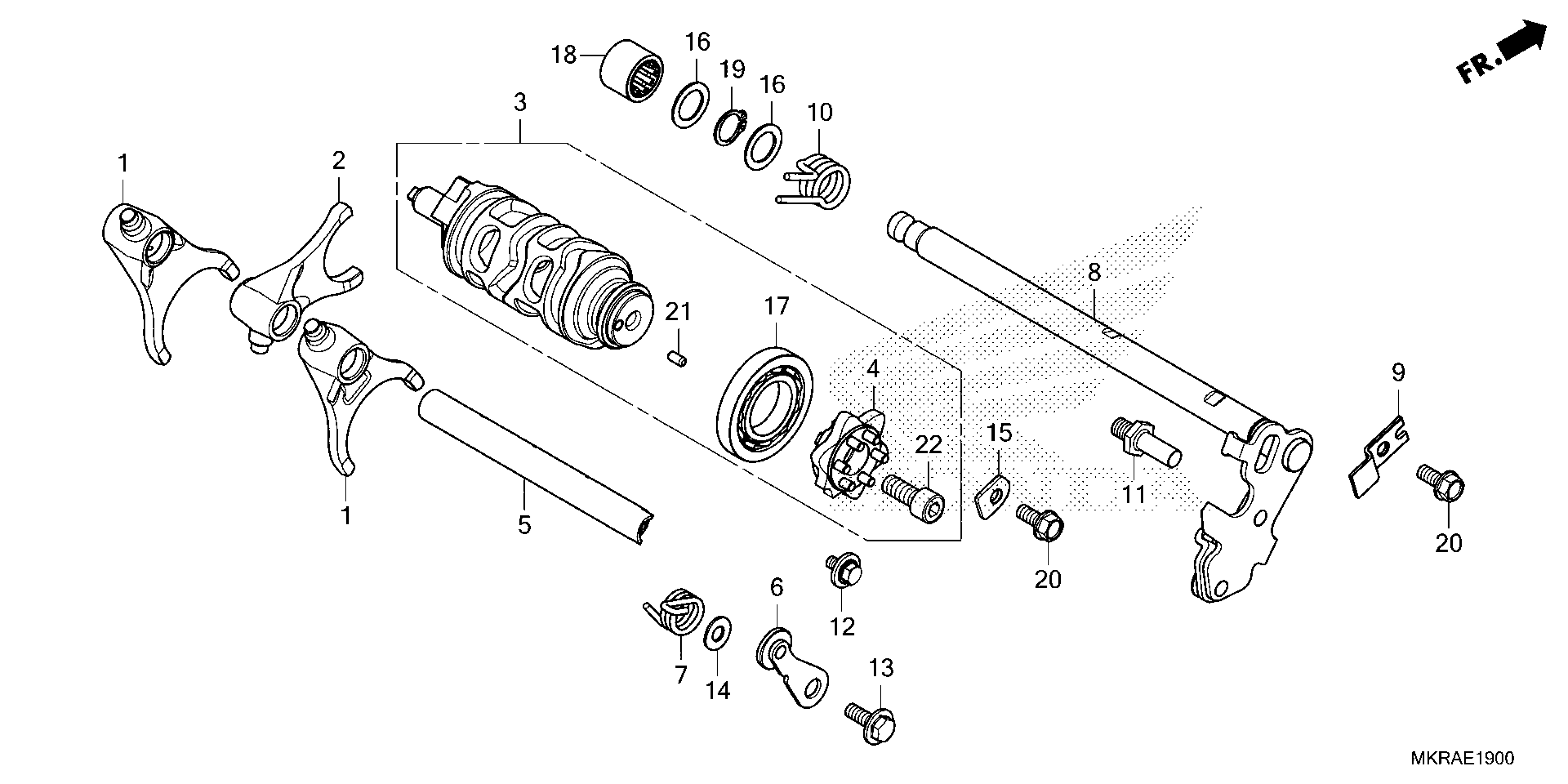

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 GEARSHIFT DRUM Diagram

FORK, GEARSHIFT

24211-MKR-D10

$61.43

FORK, CENTER GEARSHIFT

24212-MKR-D10

$61.43

DRUM, GEARSHIFT

24310-MKR-DH0

$105.65

CENTER, SHIFT DRUM

24315-MV9-932

$40.09

SHAFT, GEARSHIFT FORK

24320-MKR-D10

$34.28

STOPPER, GEARSHIFT DRUM

24430-MFL-000

$13.24

SPRING, GEARSHIFT DRUM STOPPER

24435-MEL-000

$3.57

SPINDLE, GEARSHIFT

24610-MKR-D10

$94.60

PLATE, SPINDLE SETTING

24613-MKR-D10

$3.68

SPRING, SHIFT RETURN

24651-MBB-000

$5.91

PIN, SHIFT RETURN SPRING

24652-035-000

$3.83

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$4.88

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

WASHER, DRUM STOPPER

90417-360-000

Unavailable

PLATE, BEARING HOLDER (NOT AVAILABLE)

90445-HA7-670

$2.91

WASHER (14MM)

90451-155-000

$3.62

BRG (25X50X8)

91007-MLB-D01

$13.96

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.46

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

ROLLER (4X8)

96220-40080

Unavailable

BOLT, SOCKET (8X20)

96600-08020-10

$1.97
