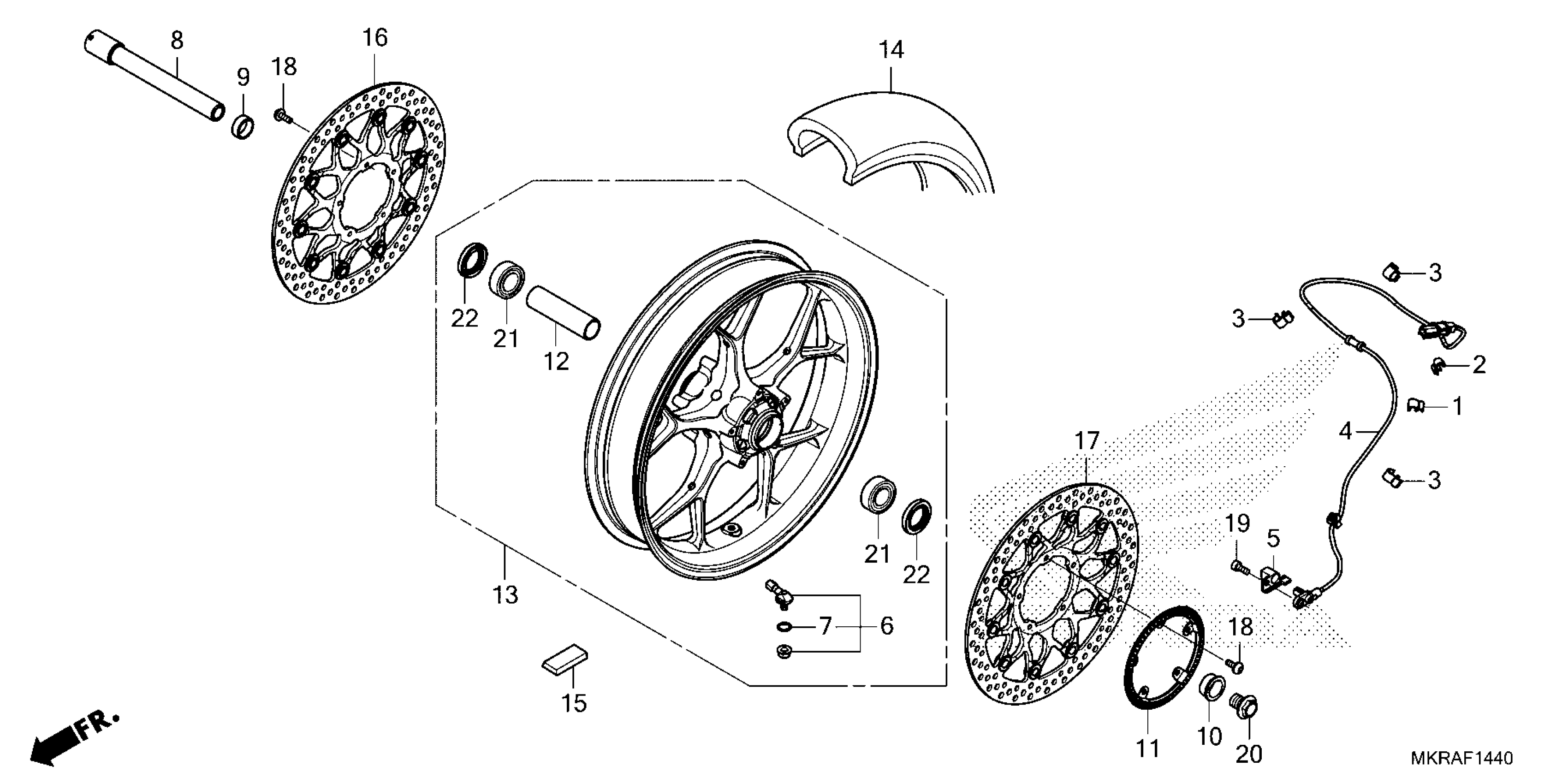

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 FRONT WHEEL Diagram

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$3.10

CLAMP, ABS WIRE

38516-MJN-A11

$3.66

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

SENSOR, FR. WHEEL SPEED

38520-MKR-D11

$189.30

GUARD, ABS SENSOR

38521-MKR-D10

$33.67

VALVE ASSY., CLAMP IN

42755-MKA-D81

$16.58

O-RING

42758-MKA-D81

$1.52

AXLE, FR. WHEEL

44301-MKR-D10

$89.36

COLLAR, L. FR. WHEEL SIDE

44312-MFL-000

$7.84

COLLAR, L. FR. WHEEL SIDE

44312-MKR-D10

$16.59

RING, FR. PULSER

44515-MKR-D10

$53.93

COLLAR, FR. WHEEL DISTANCE

44620-MCJ-000

$21.08

WHEEL SUB-ASSY., FR. (TYPE2)

44650-MKJ-D00ZB

$927.95

TIRE (120/70ZR17) This part replaces 44711-MKR-D31.

44711-MKR-D34

$222.13

TIRE, FR. (120/70ZR17) (M/C 58W) (BS)

44711-MKR-D32

$158.68

TIRE (120/70ZR17)

44711-MKR-D34

$222.13

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.80

DISK, R. FR. BRAKE

45120-MKR-D11

$611.69

DISK, L. FR. BRAKE

45220-MKR-D11

$611.69

BOLT (6X17)

90103-MLC-D00

$2.10

BOLT, FLANGE SOCKET (6X16)

90117-MKR-D10

$2.64

BOLT, FR. AXLE

90306-MFL-010

$10.46

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

DUST SEAL (31X47X7)

91253-MFL-003

$6.34
