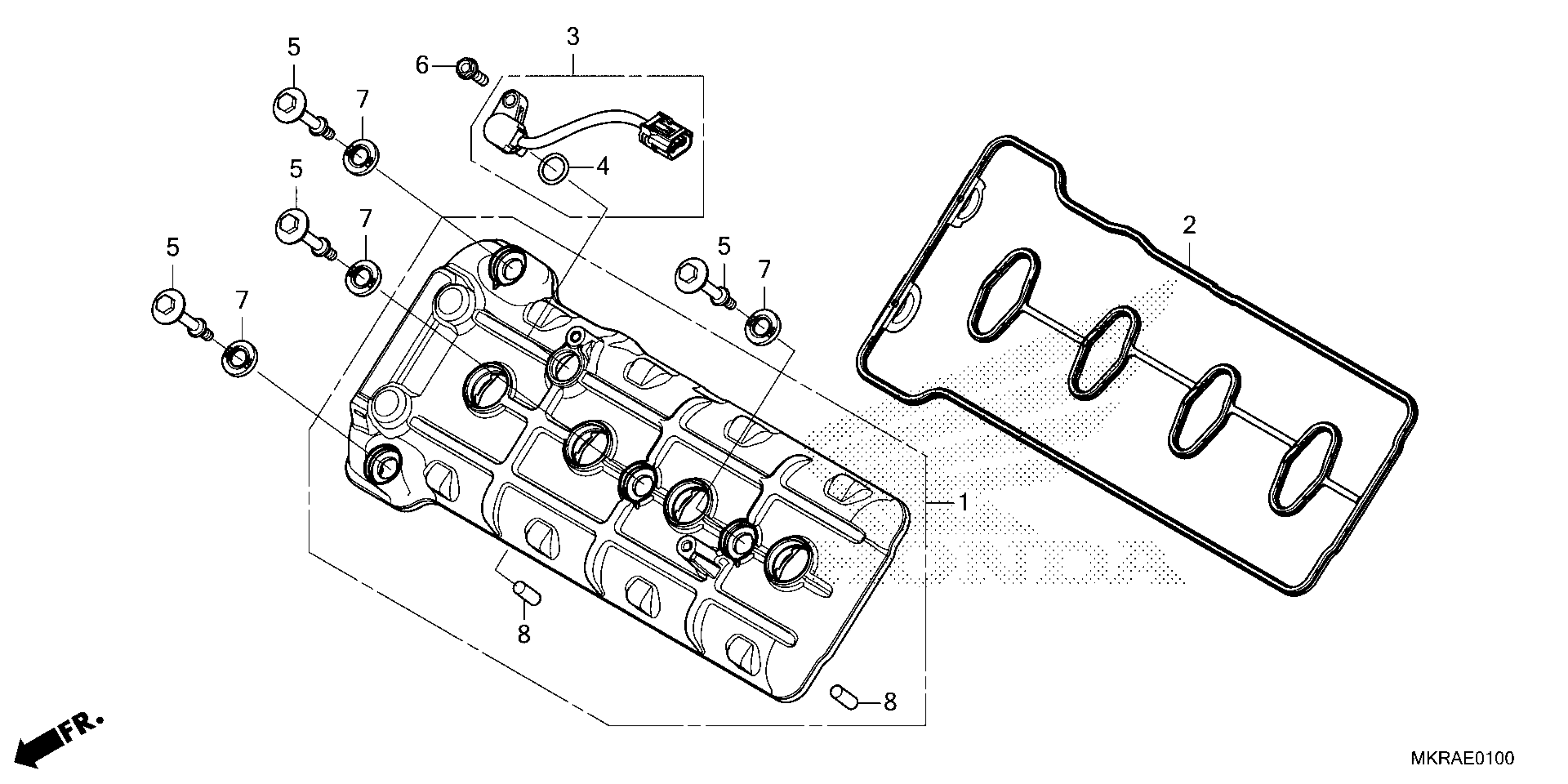

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

12311-MKR-D10

$303.03

2

GASKET, HEAD COVER

12391-MKR-D10

$52.91

3

SENSOR ASSY., CAM

36140-MKR-D11

$71.34

4

O-RING

37701-GFZ-J00

$2.09

5

BOLT, HEAD COVER

90017-MAL-600

$12.79

6

BOLT, FLANGE (6X22)

90030-GHB-670

$2.01

7

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.71

8

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.62
