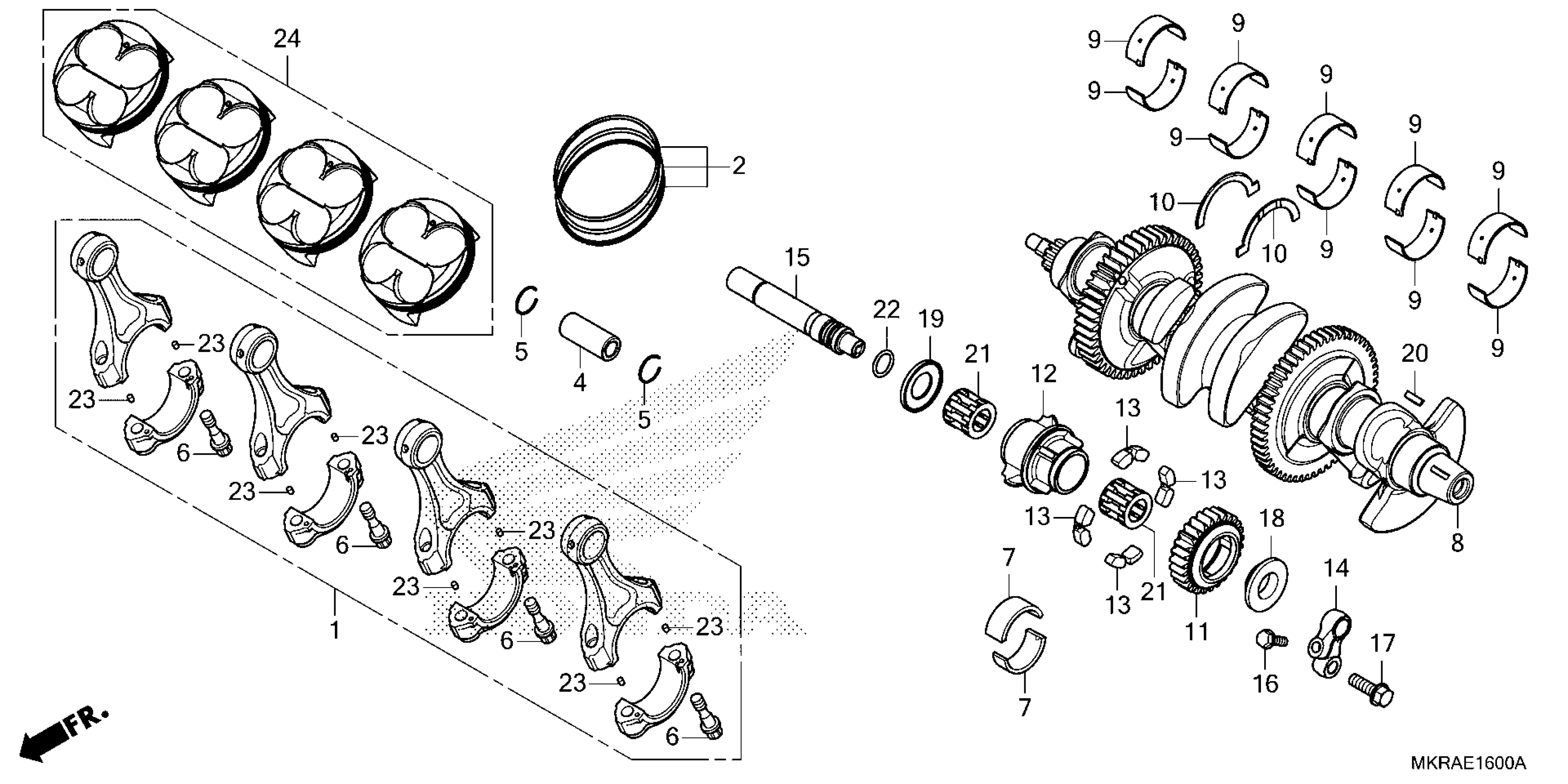

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

ROD SET, CONNECTING

06130-MKR-DH0

$2,244.71

2

RING SET, PISTON

13010-MKR-DH0

$40.03

3

PISTON

13101-MKR-DH0

$372.90

4

PIN, PISTON

13111-MKR-D10

$71.63

5

CLIP, PISTON PIN (18MM)

13112-MKR-D10

$2.38

6

BOLT, CONNECTING ROD

13213-MKR-D11

$6.52

7

BEARING A, CONN ROD

13224-MKR-DH1

$11.91

7

BEARING B, CONN ROD

13225-MKR-DH1

$11.91

7

BEARING C, CONN ROD

13226-MKR-DH1

$11.91

7

BEARING D, CONN ROD

13227-MKR-DH1

$11.91

7

BEARING E, CONN ROD

13228-MKR-DH1

$11.91

8

CRANKSHAFT

13300-MKR-DH0

$963.40

9

BRG B, CRANKSHAFT

13324-MKR-DH1

$11.76

9

BRG C, CRANKSHAFT

13325-MKR-DH1

$11.76

9

BRG D, CRANKSHAFT

13326-MKR-DH1

$11.76

9

BRG E, CRANKSHAFT

13327-MKR-DH1

$11.76

9

BEARING F

13328-MKR-DH1

$11.76

10

WASHER, THRUST

13331-MKR-DH1

$5.03

11

GEAR, BALANCER (27T)

13421-MKR-DH0

$65.65

12

WEIGHT, BALANCER

13430-MKR-DH0

$87.50

13

RUBBER, DAMPER

13435-MKR-D10

$2.72

14

HOLDER, BALANCER SHAFT

13436-MM5-000

$51.24

15

SHAFT, BALANCER

13440-MKF-D40

$114.90

16

BOLT, FLANGE (6X18)

90031-GHB-650

$1.99

17

BOLT, FLANGE (8X25)

90037-GHB-680

$2.12

18

WASHER A, BALANCER SIDE

90457-MAT-000

$5.25

19

WASHER B, BALANCER SIDE

90458-MAT-000

$4.87

20

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.62

21

BEARING B, NEEDLE (18X27X23.8) (BLUE)

91015-MEL-003

$19.34

21

BEARING C, NEEDLE (18X27X23.8) (WHITE)

91016-MEL-003

$19.34

21

BEARING D, NEEDLE (18X27X23.8) (GREEN)

91017-MEL-003

$18.50

22

O-RING (15X2.5) (Honda Code 0386995)

91302-377-000

$5.07

23

PIN, DOWEL (3X5)

94303-03050

$2.66

24

SET, PISTON

06131-MKR-DH0

$1,208.91
