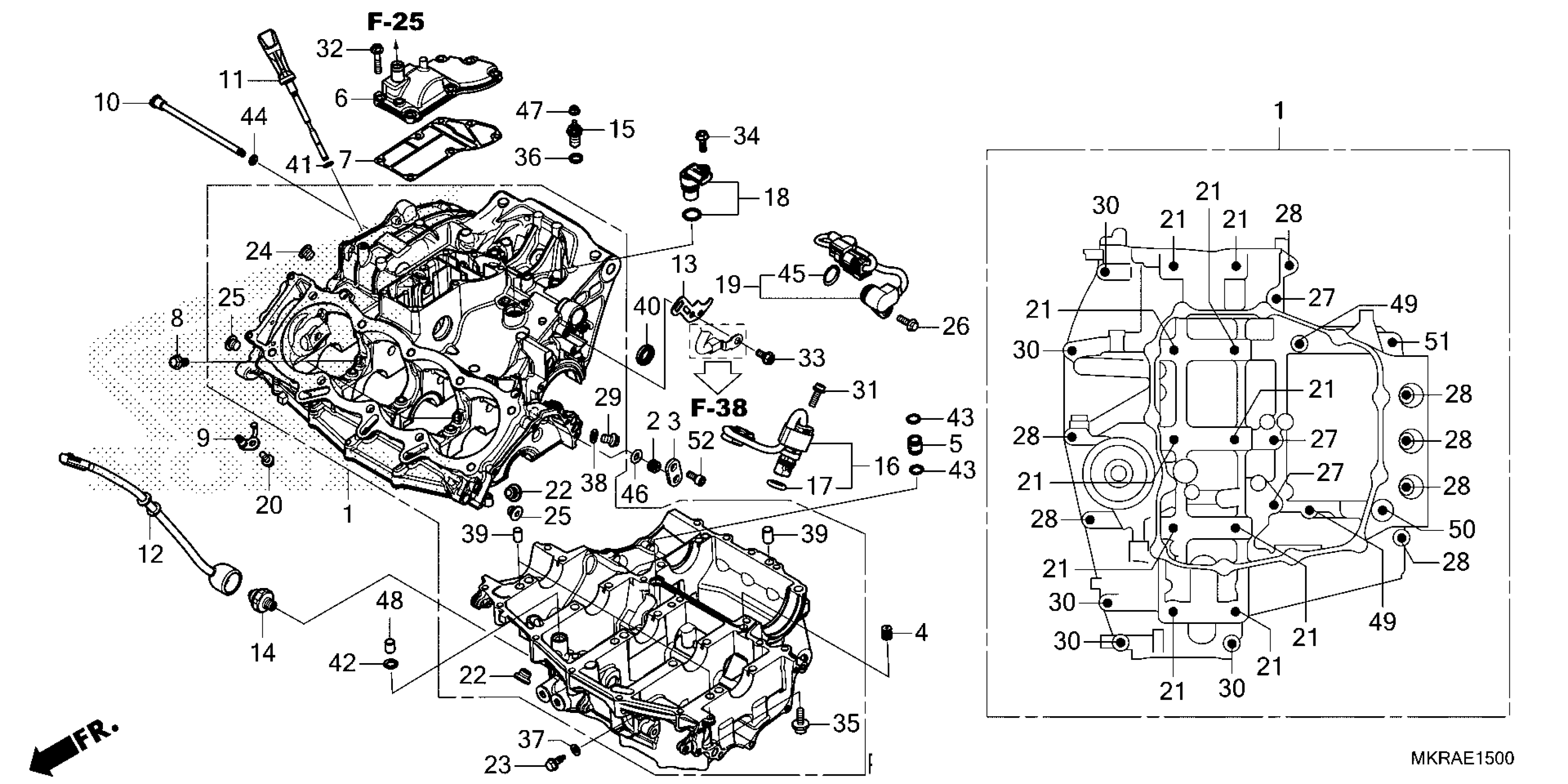

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MKR-DH0

$1,640.12

2

COLLAR, SEALING

11202-MKR-D10

$5.03

3

PLATE, SEALING COLLAR STOPPER

11205-MKR-D10

$1.99

4

ORIFICE

11206-MKR-D10

$5.82

5

COLLAR, ORIFICE

11207-MKR-D10

$6.60

6

COVER, STARTER GEAR

11410-MKR-D10

$76.01

7

GASKET, STARTER GEAR COVER

11415-MKR-D11

$7.44

8

BOLT, OIL JET

15290-MKR-DH1

$30.34

9

JET, PISTON

15330-MKR-D11

$21.44

10

PIPE, TRANSMISSION OIL JET

15350-MFL-000

$44.16

11

DIPSTICK, OIL

15750-MKR-D10

$18.12

12

SUB-HARNESS, ENGINE

32101-MKR-D10

$8.50

13

STAY, STROKE SENSOR

32154-MKR-D10

$3.62

14

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.96

15

SWITCH ASSY., NEUTRAL

35600-MKF-D41

$19.99

16

SENSOR ASSY., CRANK

37500-MKZ-J31

$43.76

17

O-RING

37501-K2Y-J01

$0.91

18

SENSOR ASSY., SPEED (TDK-EPC)

37700-MJE-D01

$23.72

19

SENSOR ASSY., ANGLE

38800-MKR-D11

$189.97

20

BOLT, FLANGE SOCKET (6X14)

90001-MJP-G50

$1.94

21

BOLT, FLANGE (9X120)

90001-MKR-D11

$6.93

22

BOLT, SEALING (12X8)

90002-RGA-000

$7.35

23

BOLT, SPECIAL (6X18)

90004-MKR-D10

$1.93

24

BOLT, SOCKET (10MM)

90005-MAZ-000

$2.09

25

BOLT, SOCKET (10MM)

90005-MJP-G80

$3.43

26

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.66

27

BOLT, FLANGE (7X60)

90017-MEL-000

$2.13

28

BOLT, FLANGE (7X50)

90017-MFL-000

$2.06

29

BOLT, SEALING (8MM)

90019-MAT-000

$6.24

30

BOLT, FLANGE (7X40)

90019-MFA-D00

$1.87

31

BOLT, FLANGE (6X18)

90026-GHB-650

$2.06

32

BOLT, FLANGE (6X30)

90027-GHB-700

$2.13

33

BOLT, FLANGE (6X14)

90030-GHB-630

$2.06

34

BOLT, FLANGE (6X18)

90031-GHB-650

$1.99

35

BOLT, FLANGE SOCKET (6X20)

90102-VK4-000

$0.93

36

WASHER, NEUTRAL

90443-MJ6-000

$1.78

37

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

38

WASHER C (8MM)

90475-703-000

$0.99

39

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.10

40

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

41

O-RING (6.5X2.2) (ARAI)

91303-MJ0-003

$3.87

42

O-RING (9.8X2.4) (Honda Code 0688986)

91305-422-000

$2.40

43

O-RING (10.6X1.9)

91305-R7L-003

$3.04

44

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.41

44

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)

91313-MA6-005

$2.41

45

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

46

O-RING (8.5X1.9) (NOK)

91314-PC9-004

$3.08

47

NUT, FLANGE (4MM)

94050-04000

$1.13

48

PIN, DOWEL (10X12)

94301-10120

$2.80

49

BOLT, FLANGE (8X55)

95701-08055-00

$2.80

50

BOLT, FLANGE (8X80)

95701-08080-00

$1.59

51

BOLT, FLANGE (10X60)

95701-10060-00

$1.82

52

BOLT, SOCKET (6X14)

96600-06014-00

$3.65
