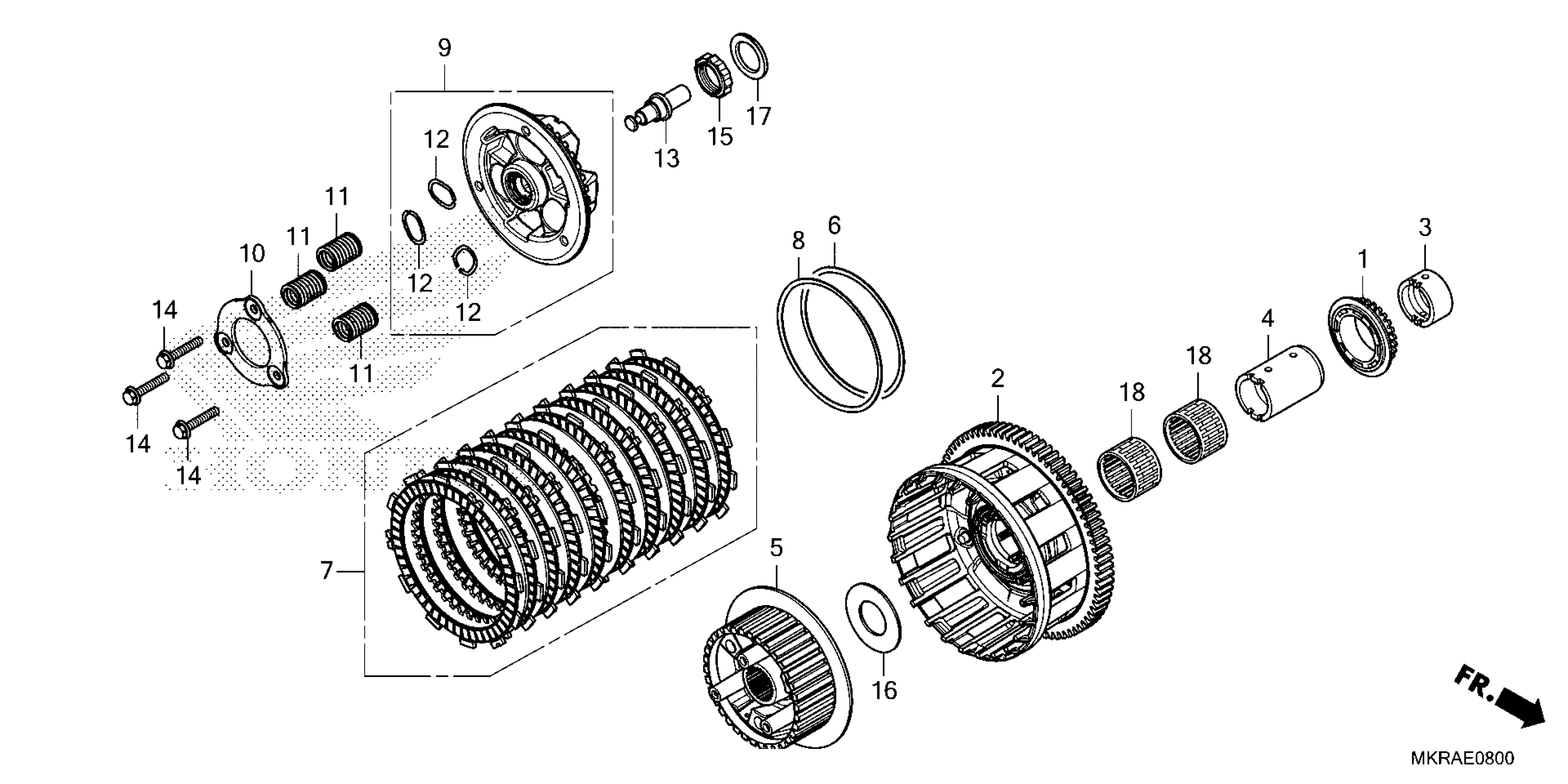

Honda CBR1000SP9AC (25) MOTORCYCLE, JPN, VIN# JH2SC821-SK400001 TO JH2SC821-SK499999 CLUTCH Diagram

SPROCKET, OIL PUMP DRIVE (26T)

15130-MKR-D11

$195.08

CLUTCH OUTER A

22100-MKR-DH0

$316.52

CLUTCH OUTER B

22110-MKR-DH0

$336.90

CLUTCH OUTER C

22115-MKR-DH0

$316.52

COLLAR, OIL PUMP SPROCKET

22116-MKR-D10

$13.43

GUIDE A, CLUTCH (OUTER) (HOLE NOTHING)

22117-MKR-D10

$21.92

GUIDE B, CLUTCH (OUTER) (2MM HOLE)

22118-MKR-D10

$21.92

GUIDE C, CLUTCH (OUTER) (2MM HOLE X2)

22119-MKR-D10

$21.92

CENTER, CLUTCH

22121-MKR-D11

$114.49

SEAT, JUDDER SPRING

22125-MKS-E01

$6.36

DISK SET, CLUTCH

22210-MKR-D10

$201.10

SPRING, JUDDER

22325-MKR-D11

$56.16

PLATE, CLU PRESS

22350-MKR-DH1

$85.56

PLATE, SETTING

22361-MKS-E01

$19.46

SPRING, CLUTCH

22401-MKR-D11

$6.38

SEAT, CLUTCH SPRING

22425-MJP-G51

$11.73

PIN, CLUTCH LIFTER

22847-MKR-D10

$31.56

BOLT, FLANGE (6X35)

90050-MJP-G51

$2.05

NUT, LOCK (25MM)

90231-MS2-610

$18.78

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

WASHER (25.1X37X3.2)

90407-MFL-000

$4.15

BEARING A, NEEDLE (35X39X22.5) (RED) (NTN)

91101-MKR-D11

$14.20

BEARING B, NEEDLE (35X39X22.5) (BLUE) (NTN)

91102-MKR-D11

$14.20

BEARING C, NEEDLE (35X39X22.5) (WHITE) (NTN)

91103-MKR-D11

$14.20
