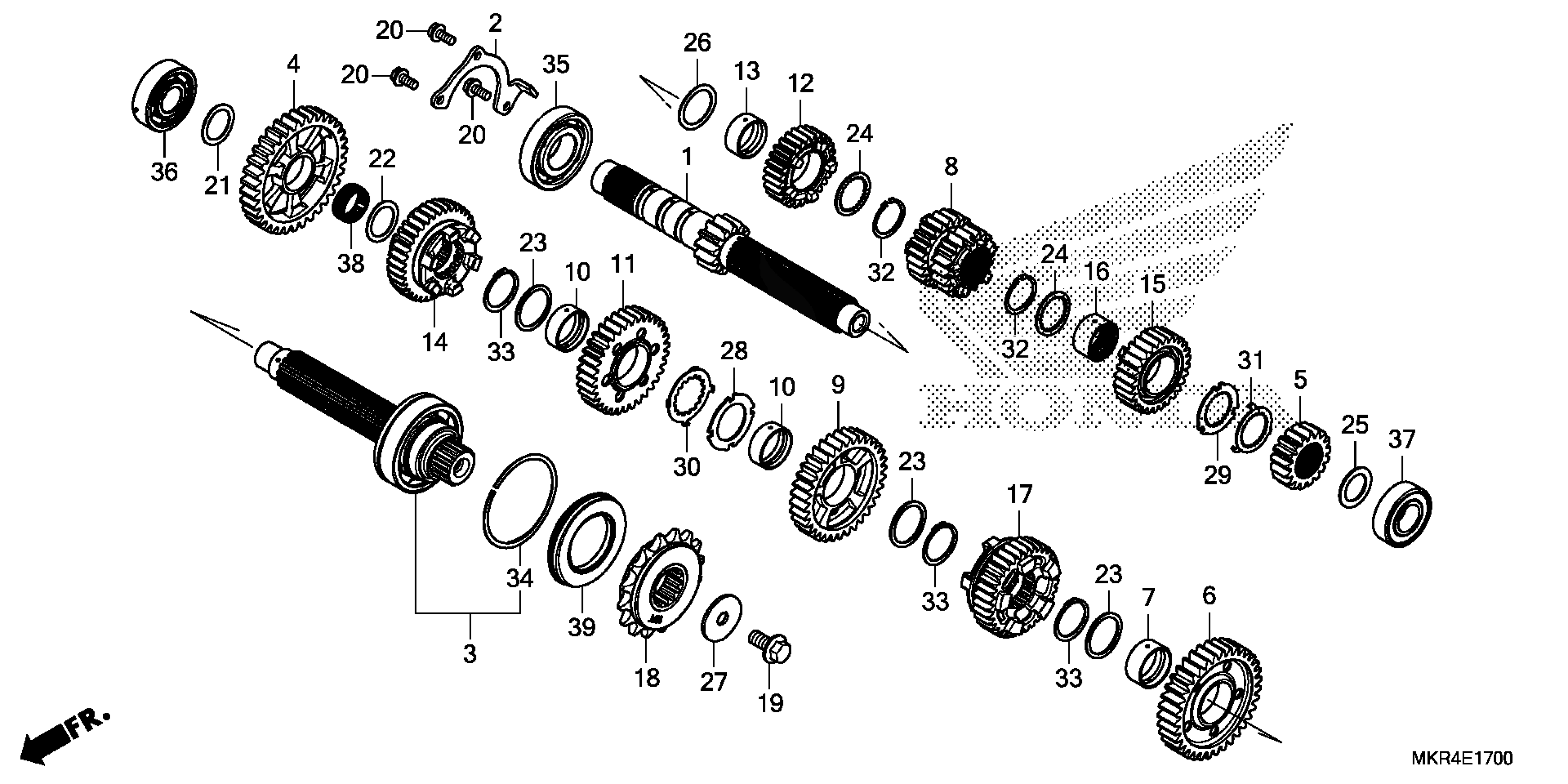

Honda CBR1000SP3AC (23) MOTORCYCLE, JPN, VIN# JH2SC821-PK200001 TRANSMISSION Diagram

MAINSHAFT (13T)

23211-MKR-D10

$159.60

PLATE, BEARING SETTING

23212-MKR-D10

$9.50

COUNTERSHAFT

23220-MKR-D11

$251.57

GEAR, COUNTERSHAFT FIRST (34T)

23421-MKR-D10

$108.00

GEAR, MAINSHAFT SECOND (17T)

23431-MKR-D10

$54.31

GEAR, COUNTERSHAFT SECOND (35T)

23441-MKR-D11

$112.18

COLLAR (30X14.5)

23442-MKR-D10

$12.15

GEAR, MAINSHAFT THIRD & FOURTH (20T/23T)

23451-MKR-D10

$129.88

GEAR, COUNTERSHAFT THIRD (34T)

23461-MKR-D10

$108.00

COLLAR, SPLINE (30X12)

23462-MGE-000

$12.28

GEAR (C-4)

23481-MKR-D11

$102.06

GEAR, MAINSHAFT FIFTH (27T)

23491-MKR-D10

$105.41

COLLAR (28X13)

23495-MM5-000

$21.25

GEAR (C-5)

23501-MKR-D11

$117.97

GEAR, MAINSHAFT SIXTH (28T)

23511-MKR-D10

$105.41

COLLAR, SPLINE (28X16.2)

23512-MKR-D10

$17.19

GEAR, COUNTERSHAFT SIXTH (34T)

23521-MKR-D10

$120.65

SPROCKET, DRIVE (16T)

23801-MKR-D10

$55.37

BOLT, SPECIAL (10MM)

90037-422-003

$6.99

BOLT, FLANGE (6X14) (10.9)

90037-RYX-010

$2.68

WASHER, THRUST (20MM)

90401-HP0-A00

$4.17

WASHER, THRUST (24MM)

90402-HA5-000

$3.50

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.04

WASHER, SPLINE (28X27X1)

90452-MKR-D10

$3.13

WASHER (22X32X1.5)

90453-KSR-A00

$2.35

WASHER, THRUST (28MM)

90458-729-920

$4.65

WASHER (10.2MM)

90459-438-000

$5.57

WASHER, SPLINE (30MM)

90463-MAT-000

$4.22

WASHER, SPLINE (28X27X1)

90463-MKR-D10

$5.56

WASHER, LOCK (30MM)

90464-MAT-000

$6.21

WASHER, LOCK (28X27X1.5)

90464-MKR-D10

$4.31

CIRCLIP (28MM)

90603-MN4-000

$3.58

CIRCLIP (30MM)

90604-MM5-000

$4.28

RING, SNAP (72MM)

90605-MM5-000

$8.37

BEARING, RADIAL BALL (28X62X16) (FUJIKOSHI)

91002-MKR-D11

$33.60

BEARING, SPECIAL (20X52X15)

91003-MFL-003

$18.32

BEARING, RADIAL BALL (22X47X14)

91004-KSC-671

$12.70

BEARING, NEEDLE (24X28X10)

91026-MEL-003

$10.04

OIL SEAL (45X72X8)

91207-MAT-003

$16.31
