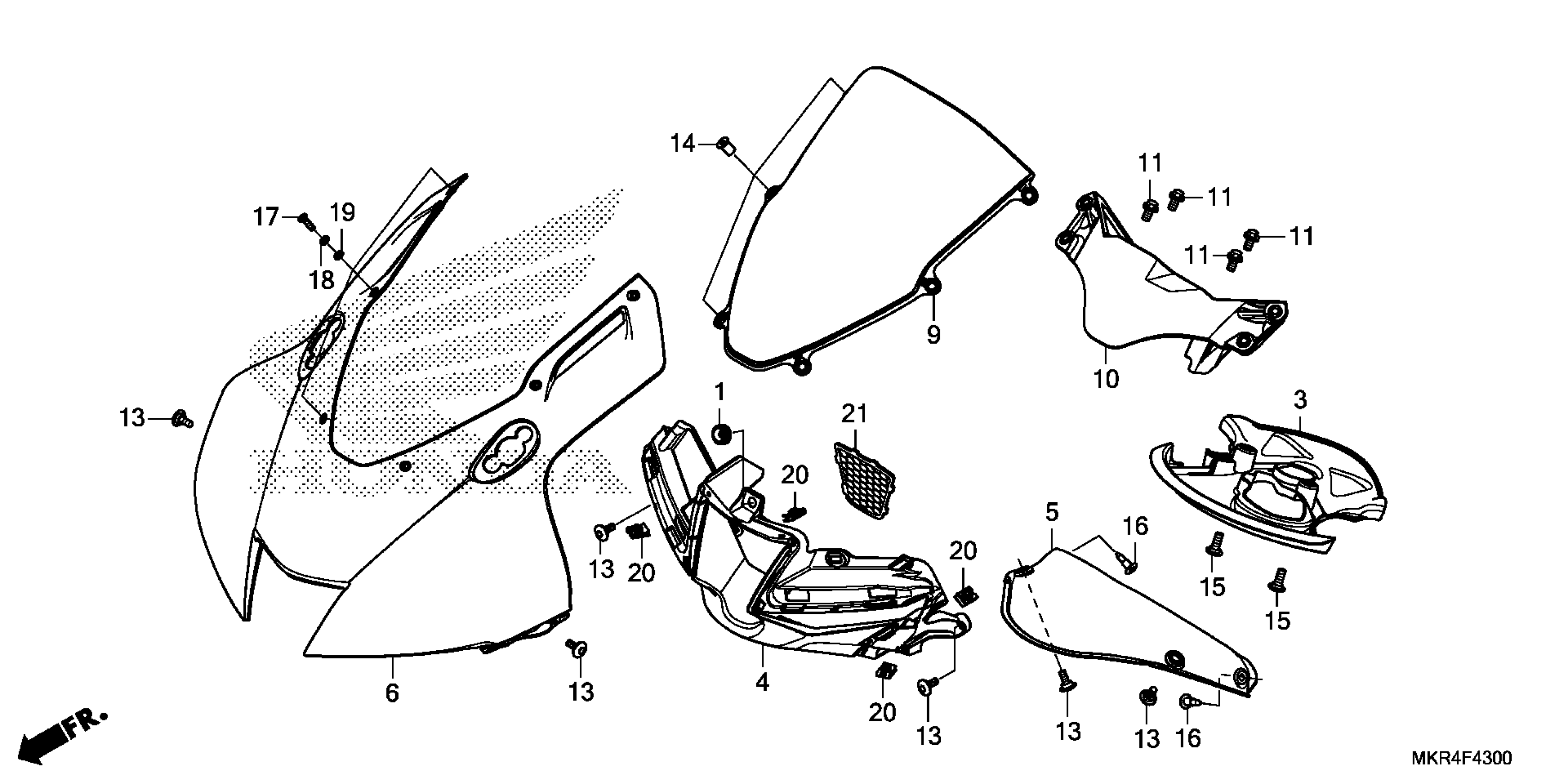

Honda CBR1000SP2AC (23) MOTORCYCLE, JPN, VIN# JH2SC821-PK200001 UPPER COWL Diagram

GROMMET, IGNITION COVER

53133-KR1-760

$4.01

PROTECTOR, WIND

61403-MKR-D10

$19.12

COVER, IN. (LOWER) (TYPE1)

64125-MKR-D10ZC

$100.41

PANEL, IN. (LOWER)

64130-MKR-D10

$8.67

COWL, FR. (TYPE1)

64200-MKR-D80ZA

$206.09

WINDSCREEN SET (TYPE1) (WL)

64250-MKR-D10ZA

$175.22

STAY ASSY., COWL (UPPER)

64501-MKR-D10

$72.41

BOLT, FLANGE (6X10)

90026-GHB-610

$2.03

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.64

NUT, WELL (4MM)

90110-MGB-Y00

$3.81

SCREW, SPECIAL (6X16)

90116-MFL-D20

$2.36

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

BOLT, SPECIAL (4X14)

90118-MKR-D10

$2.04

WASHER, THRUST (4MM)

90505-MKR-D10

Unavailable

WASHER, SCREEN SETTING

90506-MKR-D10

$1.23

NUT, CLIP (5MM)

90677-KAN-961

$3.79

GRILL, AIR IN. DUCT

17380-MKR-A30

$15.03
