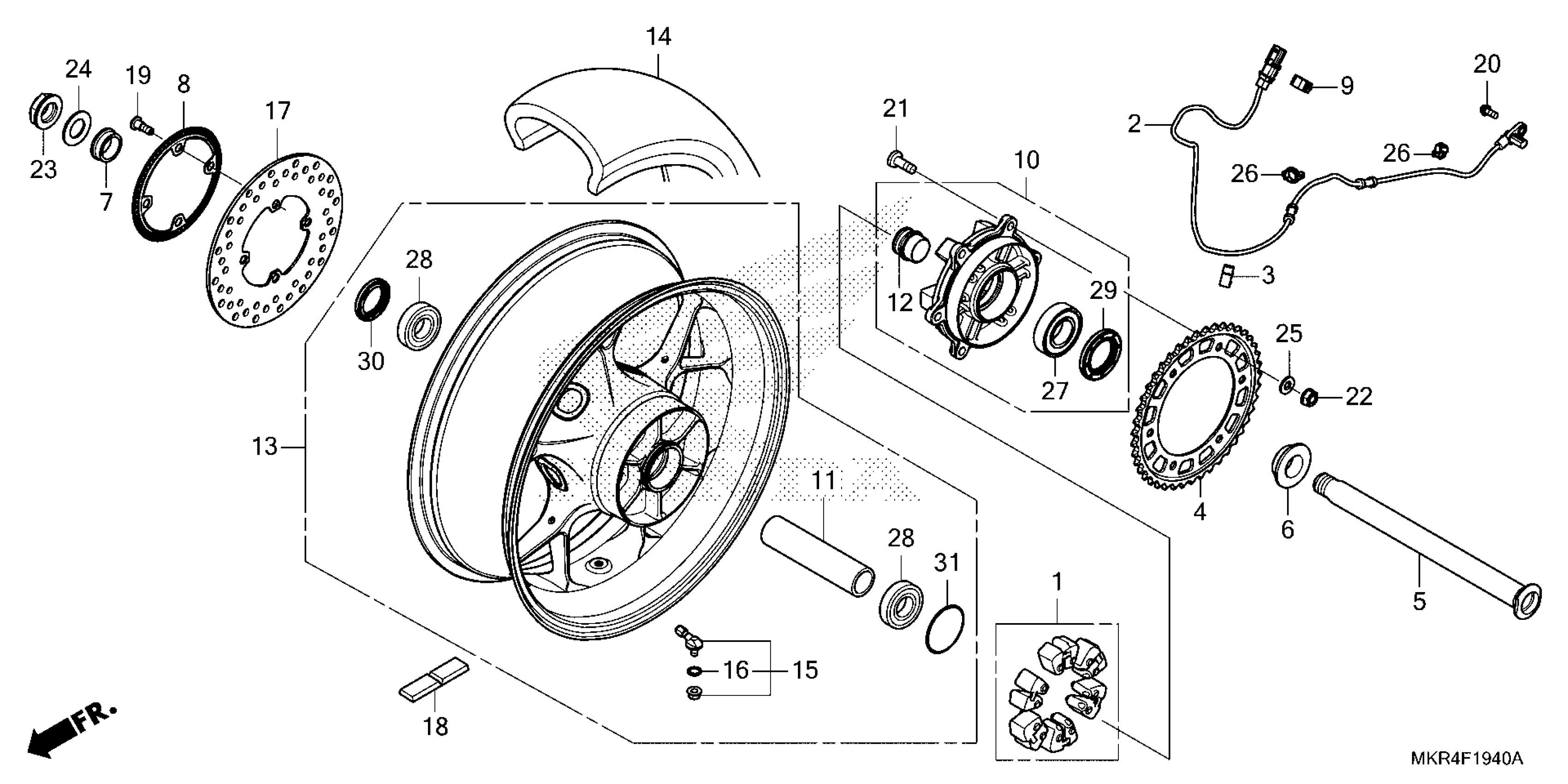

Honda CBR1000SP2AC (23) MOTORCYCLE, JPN, VIN# JH2SC821-PK200001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MEL-D20

$49.53

2

SENSOR, RR. WHEEL SPEED

38510-MKR-D11

$172.36

3

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.48

4

SPROCKET, FINAL DRIVEN (43T)

41201-MKF-D40

$76.43

5

AXLE, RR. WHEEL

42301-MKR-D10

$68.30

6

COLLAR, RR. WHEEL SIDE

42311-MKR-D10

$29.13

7

COLLAR, RR. BRAKE SIDE

42312-MKF-D40

$23.48

8

RING, RR. PULSER

42515-MKR-D10

$36.17

9

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$2.65

10

FLANGE SUB-ASSY., RR. DRIVEN

42615-MKF-D40

$191.38

11

COLLAR, RR. AXLE DISTANCE

42620-MKR-D10

$39.54

12

COLLAR B, RR. WHEEL DISTANCE

42625-MKF-D40

$22.45

13

WHEEL SUB (TYPE3)

42650-MKR-D10ZB

$946.35

14

TIRE (200/55ZR17) This part replaces 42711-MKR-D31.

42711-MKR-D34

$342.17

14

TIRE, RR. This part replaces 42711-MKR-D32.

42711-MKR-D35

$278.04

14

TIRE (200/55ZR17) This part replaces 42711-MKR-D33.

42711-MKR-D34

$342.17

14

TIRE (200/55ZR17)

42711-MKR-D34

$342.17

14

TIRE, RR.

42711-MKR-D35

$278.04

15

VALVE ASSY., CLAMP IN

42755-MKA-D81

$14.89

16

O-RING

42758-MKA-D81

$1.39

17

DISK, RR. BRAKE

43251-MKR-D11

$234.39

18

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.00

18

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.59

18

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.70

19

BOLT, DISK (8X25)

90105-MKR-D30

$2.81

20

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.10

21

BOLT (10X28.5)

90121-MKF-D40

$3.51

22

NUT, U (10MM)

90304-KAE-871

$4.03

23

NUT, U FLANGE (24MM)

90305-MKF-D41

$19.39

24

WASHER (24.1X43X2.5)

90501-MKF-D40

$5.17

25

WASHER (10MM)

90502-MCF-000

$2.55

26

CLIP, CABLE (12MM)

90690-MGS-D81

Unavailable

27

BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI)

91051-MKF-D41

$51.41

28

BEARING, RADIAL BALL (60/28)

91053-MFR-671

$16.80

29

DUST SEAL (40X63X7) (NOK)

91251-MKF-D41

$13.40

30

DUST SEAL (36X52X7) (NOK)

91252-MKF-D41

$8.97

31

O-RING (57X2) (ARAI)

91352-MKF-D41

$4.48
