Description

Price

1

PEDAL, GEARSHIFT

24701-MKR-D10

$94.70

2

RUBBER, GEARSHIFT PEDAL

24705-MKR-D10

$3.04

4

ARM, GEARSHIFT

24711-MKR-D30

$30.88

5

COVER, DUST

24722-MKR-D10

$6.84

6

TIE ROD (A)

24723-MKR-D10

$47.84

7

SWITCH ASSY., RR. STOP

35350-MKR-D11

$29.78

8

SPRING, STOP SWITCH

35357-MBR-000

$2.17

9

SENSOR ASSY., STROKE

36390-MKR-D31

$1,138.49

10

PEDAL, RR. BRAKE

46500-MKR-D10

$119.88

11

SPRING ASSY., BRAKE PEDAL

46515-MKR-D10

$5.41

12

BOLT, FLANGE (6X20)

90021-MKF-D40

$1.99

13

BOLT, SOCKET (6X22)

90104-MGH-640

$2.71

15

BOLT, FLANGE (7X30)

90115-MKF-D60

$2.86

17

BAR, CHANGE

90165-MKR-D30

$22.28

18

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$0.70

19

NUT, FLANGE (7MM)

90202-KV3-000

$1.93

20

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$3.74

21

WASHER (15.2X25)

90557-230-000

$2.17

23

NUT, HEX. (6MM)

94001-06080-0S

$1.19

25

CIRCLIP (OUTER) (15MM)

94511-15000

$0.62

26

BOLT, SOCKET (8X45)

90109-MBT-611

$3.45

27

COLLAR, CHANGE PIVOT

24731-MKR-D10

$17.36

28

WASHER, PLAIN (8MM)

90501-MKR-D10

$3.64

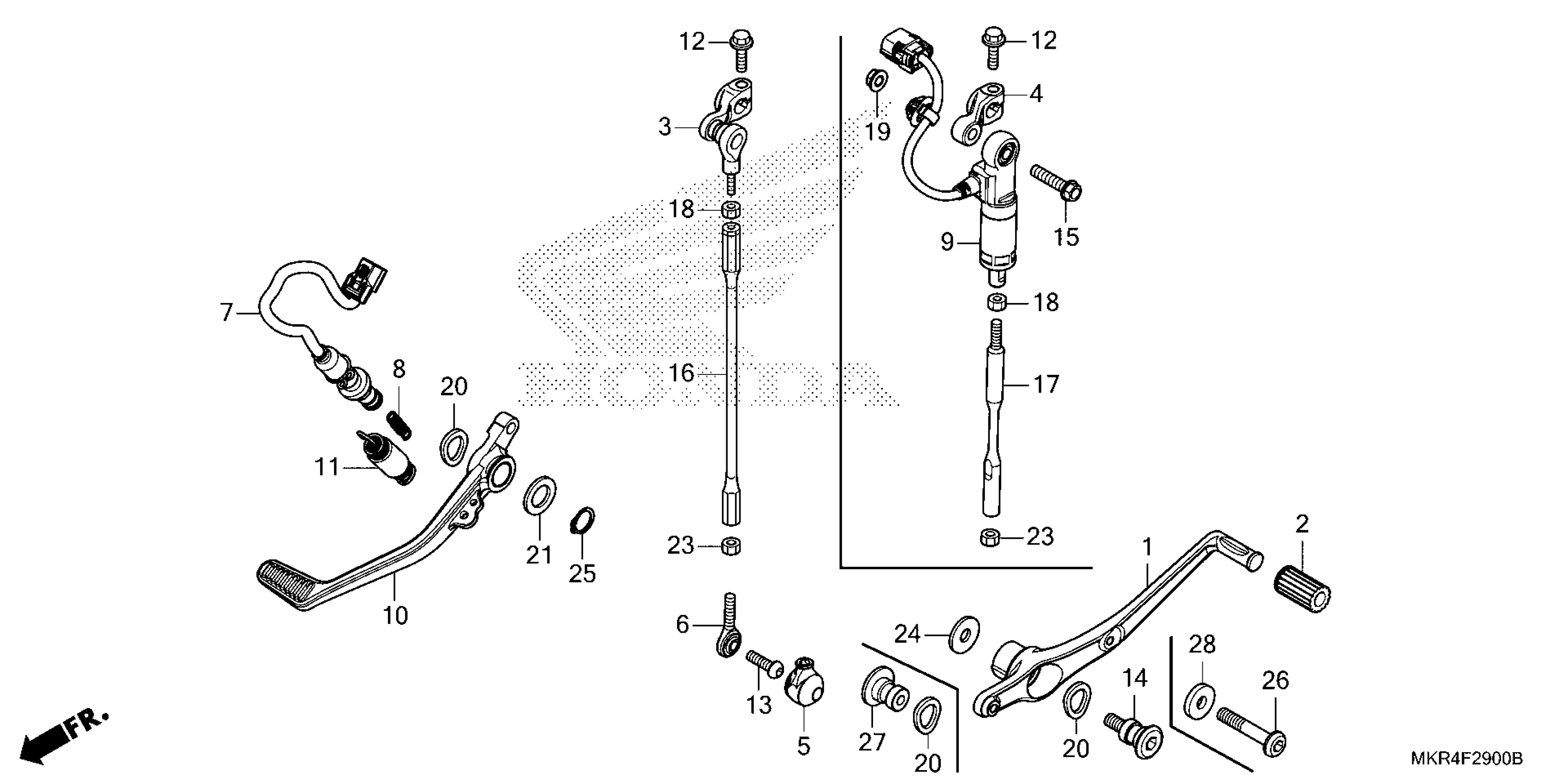

Honda CBR1000SP2AC (23) MOTORCYCLE, JPN, VIN# JH2SC821-PK200001 PEDAL Diagram
