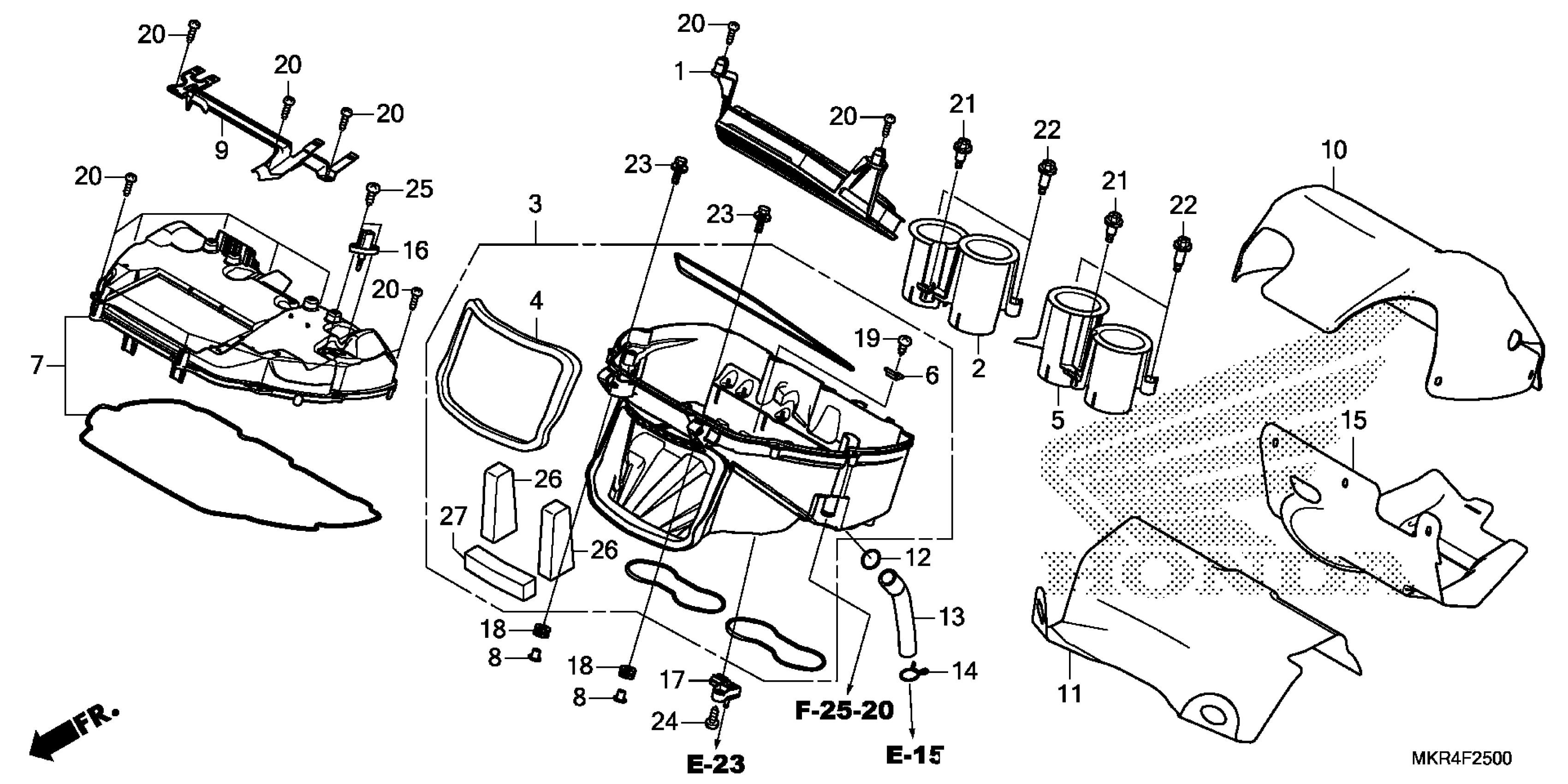

Honda CBR1000SP2AC (23) MOTORCYCLE, JPN, VIN# JH2SC821-PK200001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MKR-D10

$50.72

2

FUNNEL, R. AIR

17215-MKR-A30

$38.67

3

HOUSING, AIR CLEANER

17220-MKR-A80

$165.49

4

SEAL A, AIR IN. DUCT

17221-MKR-D10

$8.09

5

FUNNEL, L. AIR

17225-MKR-A30

$38.67

6

RETAINER, AIR CLEANER ELEMENT

17227-MEE-000

$4.72

7

HOUSING, AIR CLEANER (UPPER)

17230-MKR-D10

$104.59

8

COLLAR, AIR CLEANER MOUNTING

17239-MJP-G50

$3.58

9

PLATE, PGM-FI UNIT SETTING

17239-MKR-D10

$4.88

10

MAT, AIR CLEANER

17290-MKR-D10

$31.39

11

GUARD, AIR CLEANER HEAT

17291-MKR-D10

$78.12

12

CLIP, TUBE

17366-MKF-D40

$2.04

13

TUBE, ENGINE BREATHER

17551-MKR-D10

$8.01

14

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

15

GUARD, FUEL TANK HEAT

17590-MKR-D10

$62.35

16

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.03

17

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$184.61

18

RUBBER, SIDE COVER

83545-KCJ-690

$1.28

19

SCREW, TAPPING (5X12) (DELTA PT)

90101-HW4-680

$1.58

20

SCREW, TAPPING (4X18) (DELTA PT)

90105-MFJ-D00

$1.87

21

SCREW, PAN (5MM)

91508-MGP-D00

$3.42

22

SCREW, PAN (5MM)

91508-MKF-D40

$2.96

23

BOLT-WASHER (6X28)

93404-06028-07

$0.86

24

SCREW, TAPPING (5X20)

93901-25420

$0.75

25

SCREW, TAPPING (5X20) (Honda Code 3344546)

93903-254J0

$1.28

26

MAT A, AIR CLEANER HOUSING (LOWER)

17222-MKR-A30

$6.28

27

MAT B, AIR CLEANER HOUSING (LOWER)

17223-MKR-A30

$4.55
