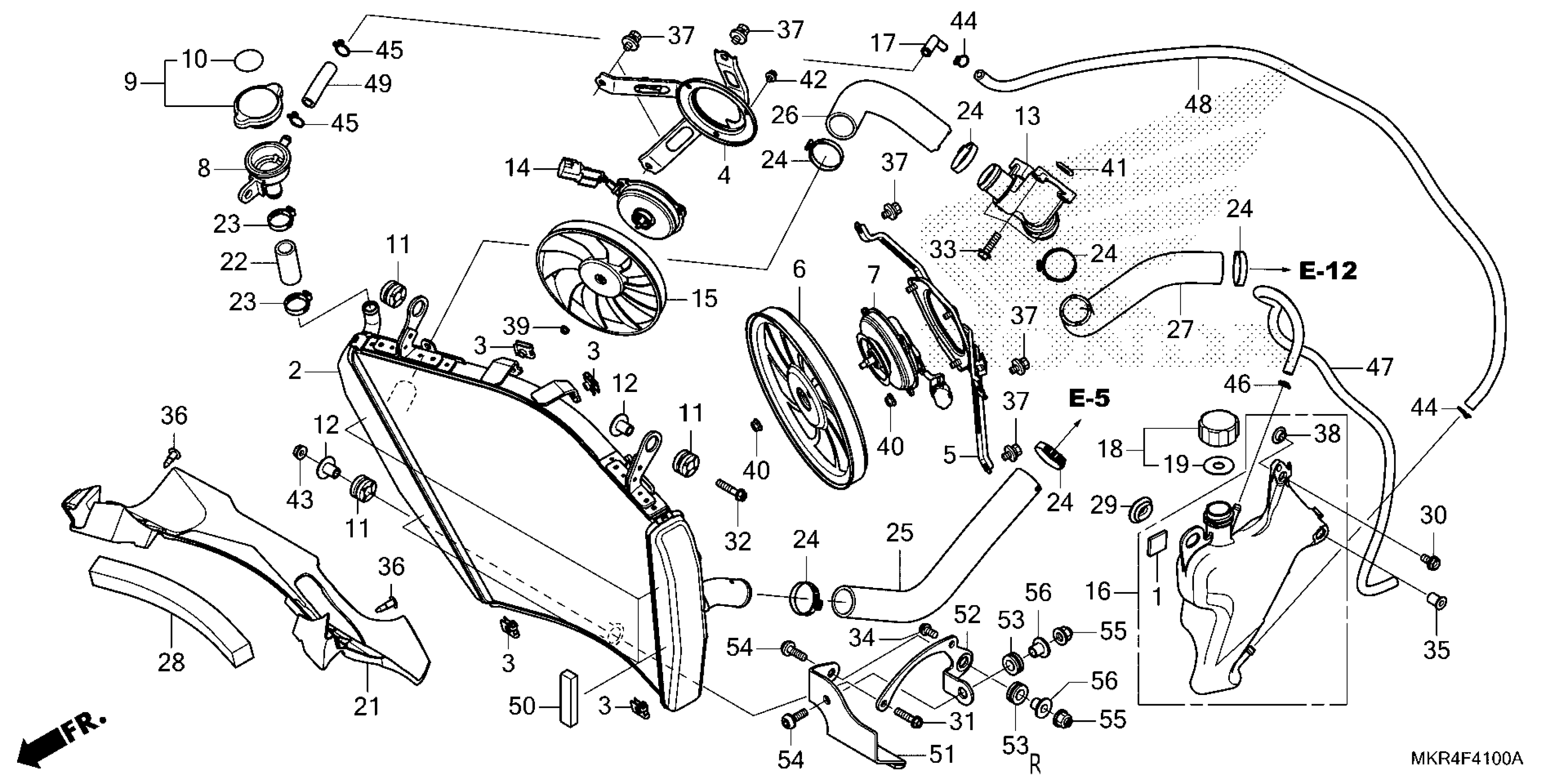

Honda CBR1000SP2AC (21) MOTORCYCLE, JPN, VIN# JH2SC821-MK000001 TO JH2SC821-MK099999 RADIATOR Diagram

#

Description
Price

1

RUBBER, FUEL TANK

17525-GBC-300

$1.81

2

RADIATOR

19010-MKR-D11

$926.25

3

NUT, SETTING (6MM)

19014-KEA-003

$2.95

4

SHROUD, R.

19015-MKR-D11

$34.16

5

SHROUD, L.

19016-MKR-D11

$47.41

6

FAN, COOLING

19020-MFA-D01

$37.62

7

MOTOR ASSY., FAN

19030-MFL-D21

$242.06

8

FILLER, NECK

19035-KVZ-631

$25.71

9

CAP, RADIATOR

19037-GEE-710

$27.80

10

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

12

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

13

JOINT, WATER BYPASS

19070-MKR-D10

$56.90

14

MOTOR ASSY., FAN

19080-MKR-A31

$178.16

15

FAN, COOLING

19090-MKR-D11

$33.91

16

TANK, RADIATOR RESERVE

19101-MKR-D10

$33.74

17

JOINT, TUBE

19103-ML7-000

$5.95

18

CAP ASSY., RESERVE TANK

19105-MG8-000

$11.54

19

GASKET, RESERVE TANK

19107-MG8-000

$4.68

21

COVER, RADIATOR (UPPER)

19120-MKR-D10

$22.31

22

HOSE, FILLER NECK

19504-MKR-D10

$5.13

23

CLAMP, HOSE (D19)

19511-MKF-D41

$9.74

24

CLAMP, HOSE (D29.8)

19514-MKF-D41

$9.44

25

HOSE, THERMOSTAT

19551-MKR-D10

$22.84

26

HOSE, RADIATOR

19561-MKR-D10

$21.59

27

HOSE, WATER PUMP

19571-MKR-D10

$30.01

28

SEAL, FUEL TANK

83155-HP6-A00

$6.31

29

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

30

BOLT, FLANGE (6X16)

90020-GHB-640

$2.09

31

BOLT, FLANGE (6X25)

90020-GHB-680

$2.09

32

BOLT, FLANGE (6X28)

90020-GHB-690

$2.15

33

BOLT, FLANGE (6X22)

90027-GHB-670

$2.07

34

BOLT, FLANGE (6X16)

90030-GHB-640

$2.15

35

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

36

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

37

BOLT-WASHER (6X12)

90120-GHB-601

$1.78

38

COLLAR (6X4)

90127-KF0-770

$3.26

39

NUT, FLANGE (3MM)

90315-MFL-003

$2.15

40

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

41

O-RING (19X2)

91303-MKR-D11

$1.87

42

SCREW-WASHER (4X8)

93893-04008-07

$0.80

43

NUT, FLANGE (6MM)

94050-06000

$0.60

44

CLIP, TUBE (B10)

95002-02100

$1.75

45

CLIP, TUBE (B12)

95002-02120

$1.79

46

CLIP, TUBE (C9)

95002-50000

$1.16

47

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

Unavailable

48

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

Unavailable

49

BULK HOSE (7.3X1000)

95005-75001-20M

$30.96

50

MAT, FR. CENTER COWL

64213-MEJ-J00

$1.27

51

GUARD

15653-MKR-D80

$31.76

52

STAY, RADIATOR

19113-MKR-D80

$25.94

53

RUBBER, SENSOR MOUNTING

39963-MKF-D41

$3.81

54

BOLT, SPECIAL (6X18) (SUS)

90132-MFJ-D00

$2.13

55

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

56

COLR, HEAT GUARD MT

90507-MKR-D10

$2.10
