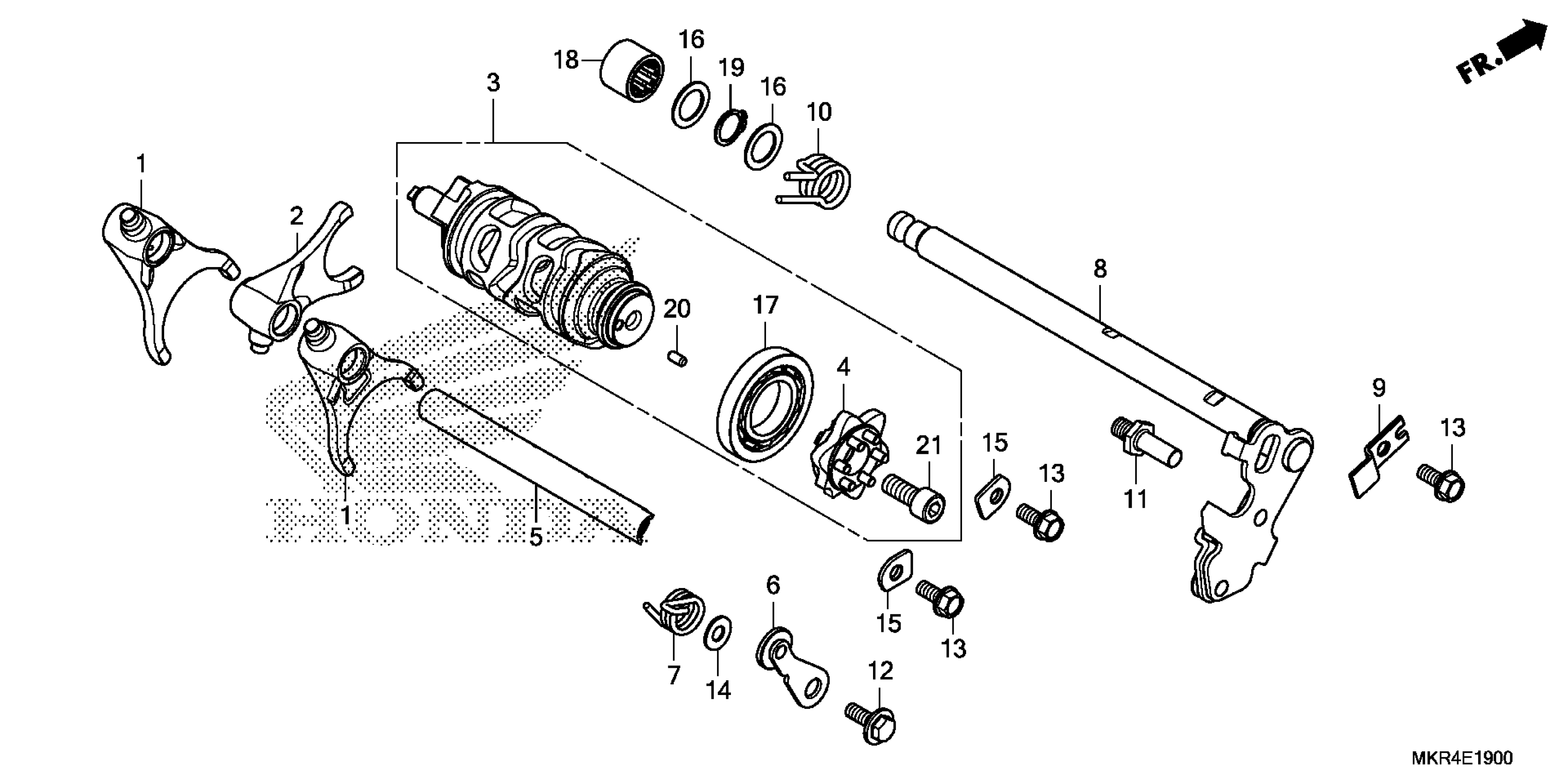

Honda CBR1000SP2AC (21) MOTORCYCLE, JPN, VIN# JH2SC821-MK000001 TO JH2SC821-MK099999 GEARSHIFT DRUM Diagram

FORK, GEARSHIFT

24211-MKR-D10

$61.43

FORK, CENTER GEARSHIFT

24212-MKR-D10

$61.43

DRUM, GEARSHIFT

24310-MKR-D10

$151.32

CENTER, SHIFT DRUM

24315-MV9-932

$40.09

SHAFT, GEARSHIFT FORK

24320-MKR-D10

$34.28

STOPPER, GEARSHIFT DRUM

24430-MFL-000

$13.24

SPRING, GEARSHIFT DRUM STOPPER

24435-MEL-000

$3.57

SPINDLE, GEARSHIFT

24610-MKR-D10

$94.60

PLATE, SPINDLE SETTING

24613-MKR-D10

$3.68

SPRING, SHIFT RETURN

24651-MBB-000

$5.91

PIN, SHIFT RETURN SPRING

24652-035-000

$3.83

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

BOLT, FLANGE (6X14)

90030-GHB-630

$2.06

WASHER, DRUM STOPPER

90417-360-000

Unavailable

PLATE, BEARING HOLDER (NOT AVAILABLE)

90445-HA7-670

$2.91

WASHER (14MM)

90451-155-000

$3.62

BEARING, SPECIAL BALL (6500)

91008-MFJ-D01

$15.31

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.46

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

ROLLER (4X8)

96220-40080

Unavailable

BOLT, SOCKET (8X20)

96600-08020-10

$1.97
