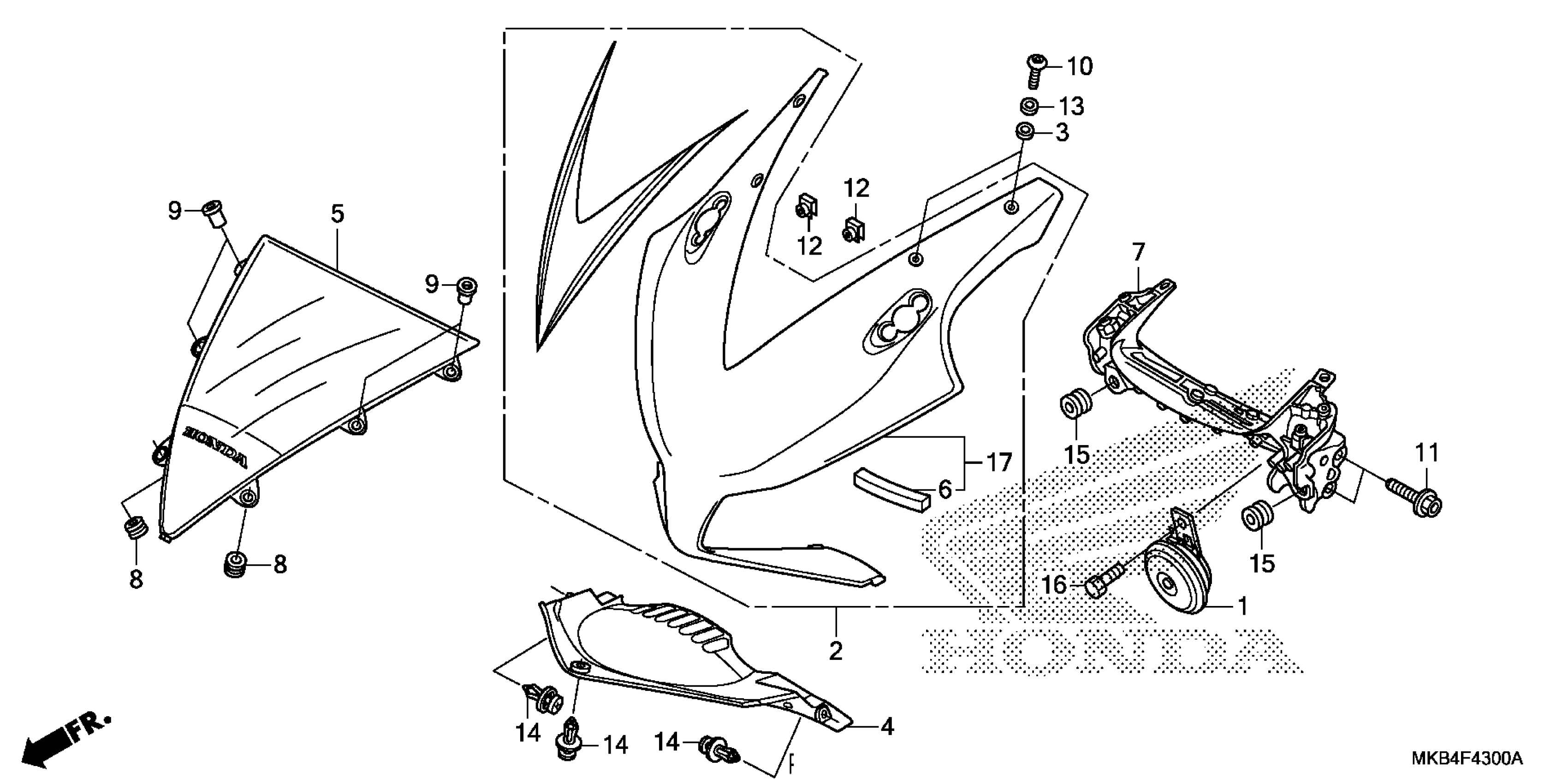

Honda CBR1000S3AC (16) MOTORCYCLE, JPN, VIN# JH2SC596-GK500001 UPPER COWL Diagram

HORN (HIGH)

38110-MFL-003

$60.18

COWL SET (UPPER) (TYPE1) (WL)

64100-MKB-E81ZA

$604.48

WASHER, SCREEN SETTING

64205-166-610

$2.21

COVER, AIR IN.

64220-MGP-D01

$29.72

WINDSCREEN SET This part replaces 64250-MKB-305ZA.

64250-MKB-A81ZA

$186.15

MAT D, R. COWL (LOWER)

64418-MFJ-A40

$2.25

STAY A, COWL (UPPER)

64501-MFL-020

$197.06

RUBBER, COWL (LOWER)

64535-MCJ-000

$2.61

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

BOLT, SPECIAL (5X16)

90119-MFL-D20

$2.31

BOLT, FLANGE (8X28)

90120-MEE-000

$2.33

NUT, CLIP (5MM)

90312-MT3-000

$4.57

WASHER, THRUST (5MM)

90504-964-000

$1.90

CLIP, BODY COVER

90683-GR1-003

$2.92

RUBBER, CONTROL BOX

90852-898-000

$4.03

BOLT, HEX. (8X14)

92101-08014-0G

$1.49
