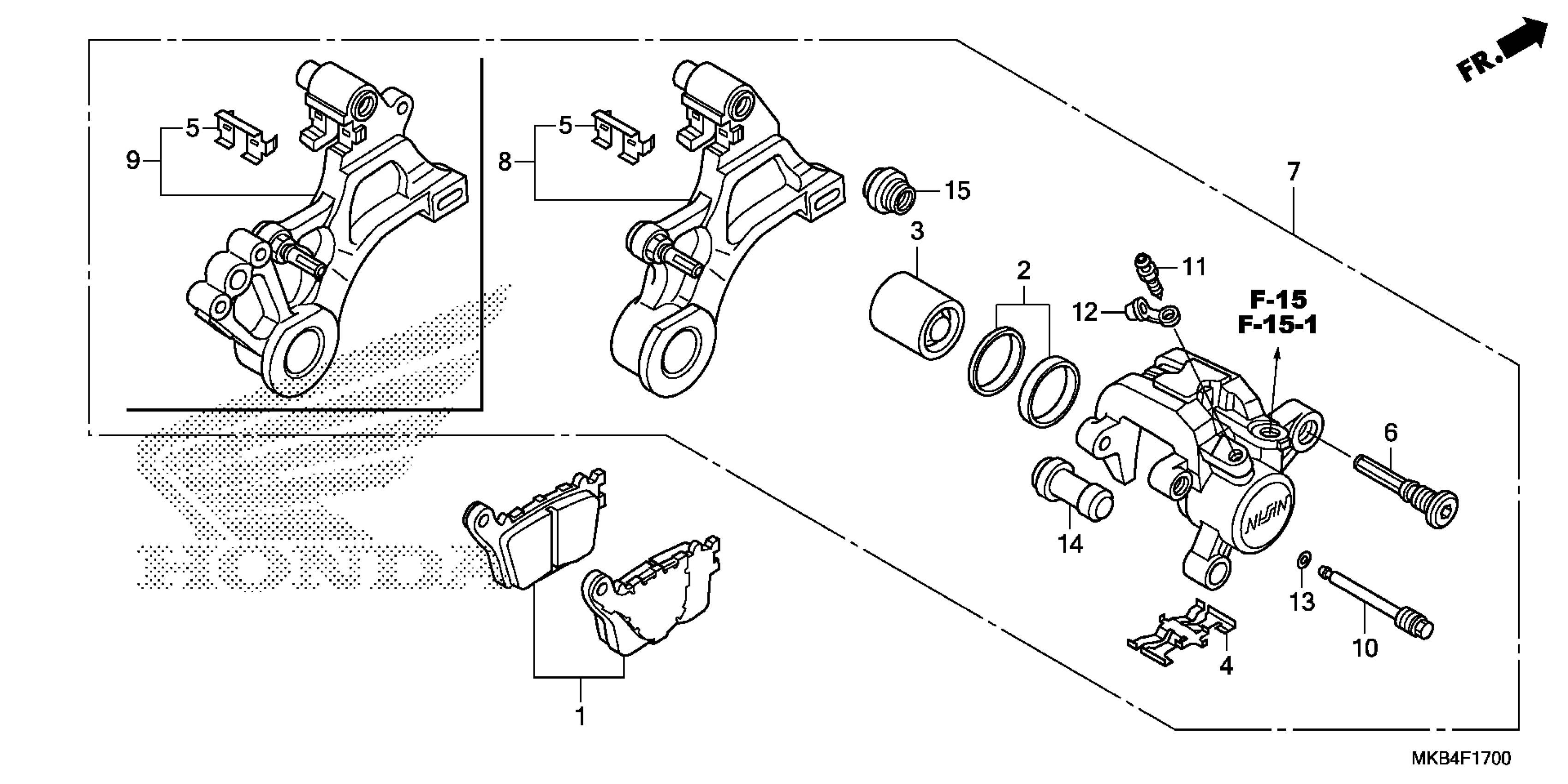

Honda CBR1000S3AC (16) MOTORCYCLE, JPN, VIN# JH2SC596-GK500001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR. This part replaces 06435-MEL-D22.

06435-MEL-D23

$57.78

1

PAD SET, RR.

06435-MEL-D23

$57.78

2

SEAL SET, PISTON

06451-166-405

$13.04

3

PISTON

43107-MEL-D21

$23.01

4

SPRING, PAD

43108-MEL-D21

$3.15

5

RETAINER

43112-MEL-D21

$5.44

6

BOLT, PIN

43131-KW3-006

$10.29

7

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MEL-D31

$376.57

8

BRACKET SUB-ASSY., RR.

43190-MEL-D31

$105.36

10

PIN, HANGER

43215-KZ4-J41

$5.25

11

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

12

CAP, BLEEDER

43353-461-771

$5.05

13

RING, STOPPER

45111-MAJ-G41

$3.80

14

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

15

BOOT B

45133-MA3-006

$5.46
