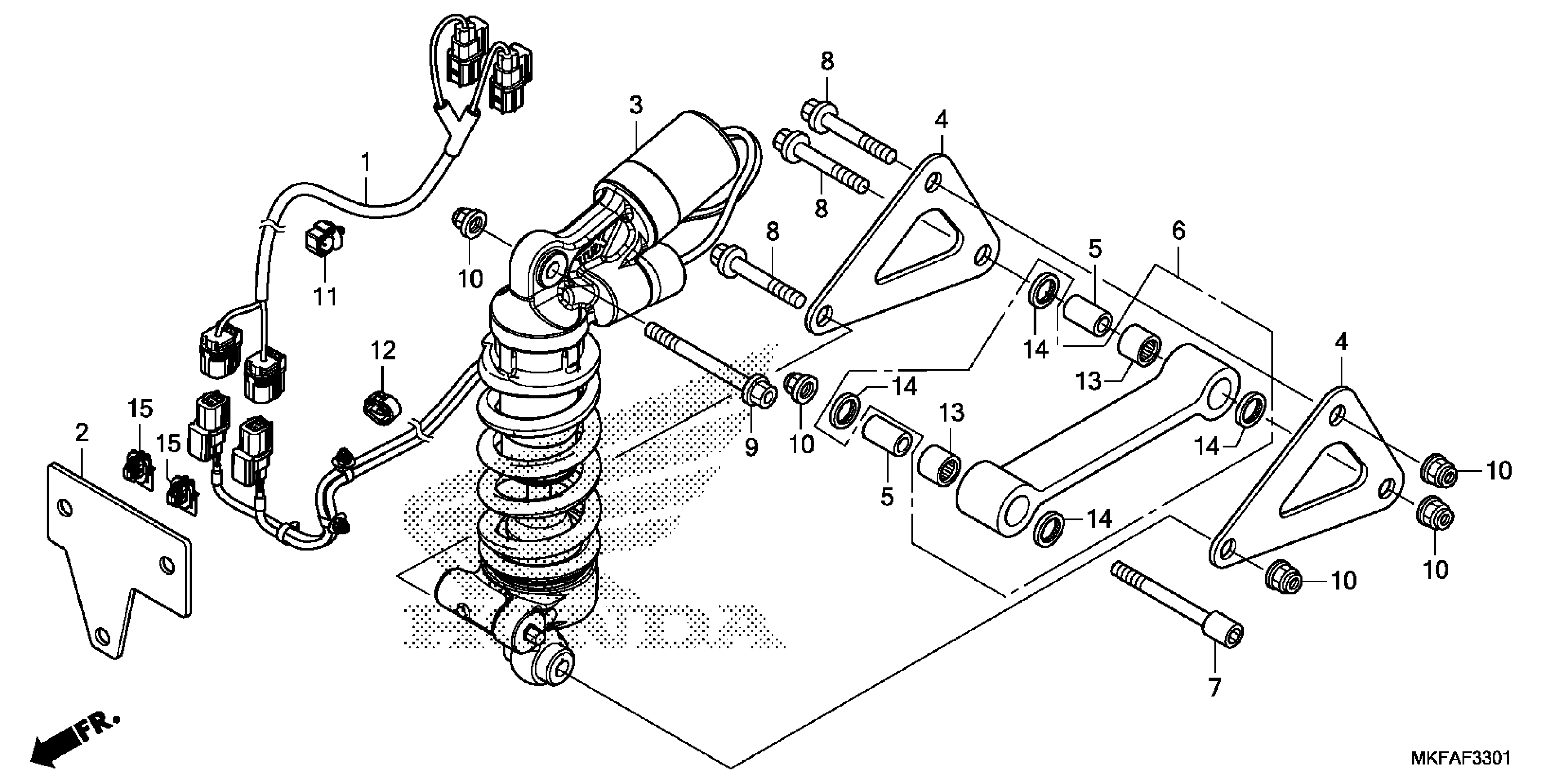

Honda CBR1000S12AC (19) MOTORCYCLE, JPN, VIN# JH2SC777-KK200001 REAR SHOCK ABSORBER (2) Diagram

#

Description

Price

1

SUB-HARNESS, RR. CUSHION

32109-MKF-D60

$41.28

2

RUBBER, CONNECTOR

32119-MKF-D60

$13.77

3

CUSHION ASSY., RR. (OHLINS)

52430-MKF-D61

$4,062.44

4

PLATE, CUSHION ARM

52461-MFL-000

$21.05

5

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

6

ROD SUB-ASSY., CUSHION CONNECTING

52475-MGP-D80

$113.49

7

BOLT, SOCKET (10X70)

90107-MFJ-D00

$8.05

8

BOLT, FLANGE (10X62)

90121-MFL-000

$4.11

9

BOLT, FLANGE (10X75)

90132-MEL-000

$6.96

10

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

11

CLAMP, CABLE

90683-GEE-003

$2.15

12

CLAMP, HARNESS

90690-MEF-800

$1.49

13

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

14

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

15

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15
