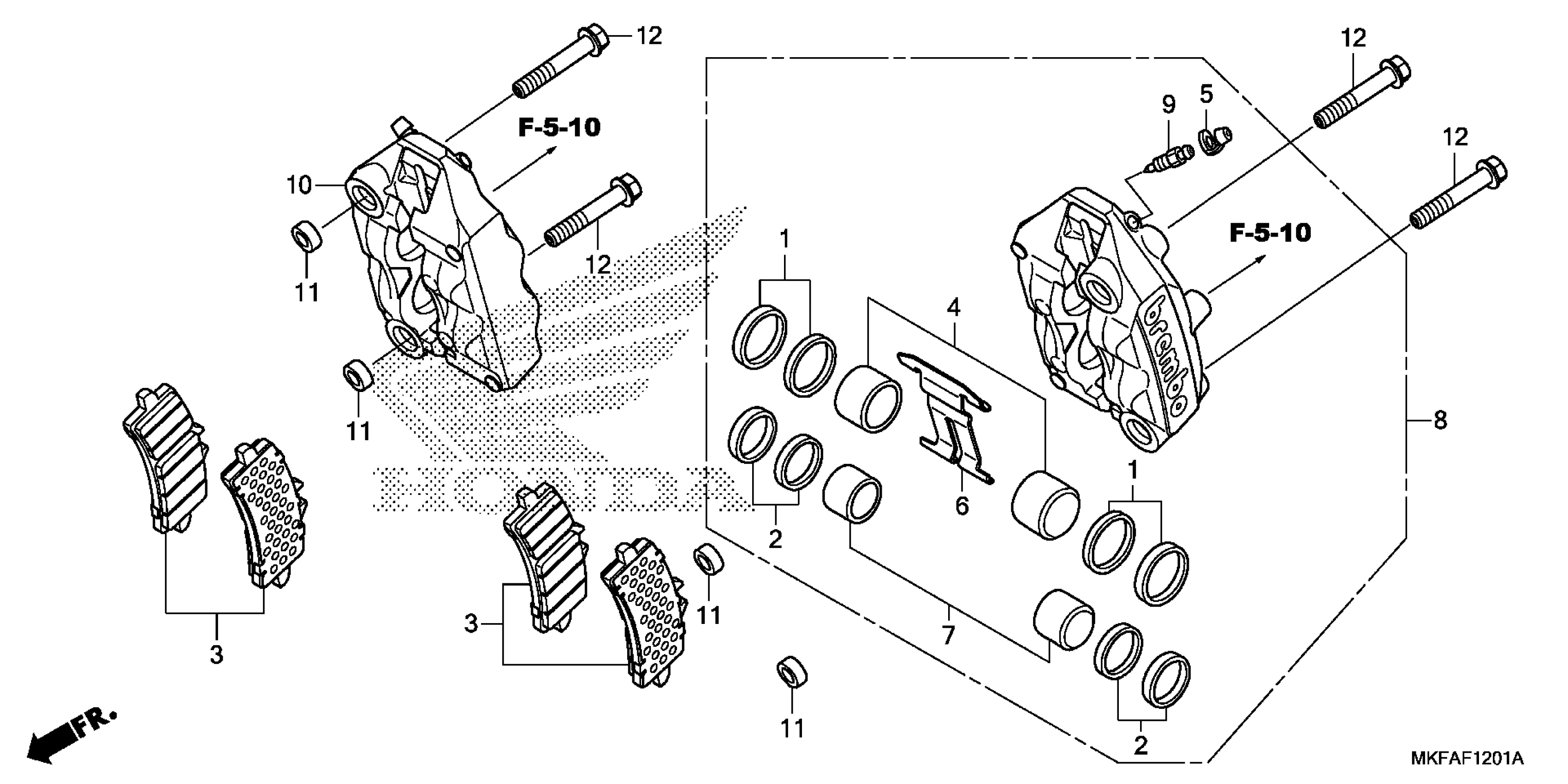

Honda CBR1000S12AC (19) MOTORCYCLE, JPN, VIN# JH2SC777-KK200001 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (32)

06451-MGP-D81

$24.36

SEAL SET, PISTON (30)

06452-MGP-D81

$23.63

PAD SET, FR.

06455-MKF-D61

$134.34

PISTON (32)

45107-MGP-D81

$103.78

CAP, BLEEDER

45112-MGP-D81

$17.51

SPRING, PAD

45113-MGP-D81

$21.25

PISTON (30)

45117-MGP-D81

$100.71

CALIPER SUB-ASSY., L. FR. (BREMBO)

45150-MGP-D81

$1,025.87

SCREW, BLEEDER

45211-MGP-D81

$17.16

CALIPER SUB-ASSY., R. FR. (BREMBO)

45250-MGP-D81

$981.61

SPACER, FR. FORK

51497-MEL-000

$4.77

BOLT, FLANGE (10X62)

90131-MFL-D20

$15.71
