Description

Price

1

MAT A, L. FR. COVER

11353-KSV-J10

$2.12

2

PLATE, CROSS (UPPER)

50217-MGP-D80

$35.12

3

NUT, HEADLIGHT SETTING

61304-162-013

$3.31

4

PLATE, LOCK KEY SETTING

75581-MGP-D60

$3.75

5

SEAT ASSY., SINGLE

77100-MGP-D81

$178.01

6

CUSHION, SINGLE SEAT

77103-MFL-300

$1.69

7

RUBBER, SPACER

77182-KTB-300

$1.60

8

RUBBER, SEAT CUSHION

77207-MEL-000

$3.16

9

COWL SET, RR. SEAT (TYPE1) (WL)

77210-MGP-D80ZA

$268.00

10

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60

11

HOOK, SEAT CATCH

77220-MEE-D01

$30.89

12

WASHER, SEAT LOCK

77236-MGP-D60

$2.22

13

KEY, SEAT LOCK This part replaces 77239-MGP-D63.

77239-MGP-D65

$111.59

13

KEY, SEAT LOCK This part replaces 77239-MGP-D64.

77239-MGP-D65

$111.59

14

COWL SET, SINGLE SEAT (TYPE1) (WL)

77280-MGP-D80ZA

$287.71

15

TAPE, PROTECTION

77281-MGP-D80

$4.65

16

PAD, SINGLE SEAT

77414-MGP-D80

$52.25

17

RUBBER, PROTECTOR (L. SIDE ONLY)

81214-MT3-300

$2.32

18

SCREW, SPECIAL (6X8)

90104-MJ0-660

$3.95

19

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

20

SCREW, PAN (5X20)

90120-MEL-000

$1.81

21

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

22

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

23

TAPE, PROTECTION (FR) | Use from Frame SN EK300227.

77282-MGP-D80

$1.34

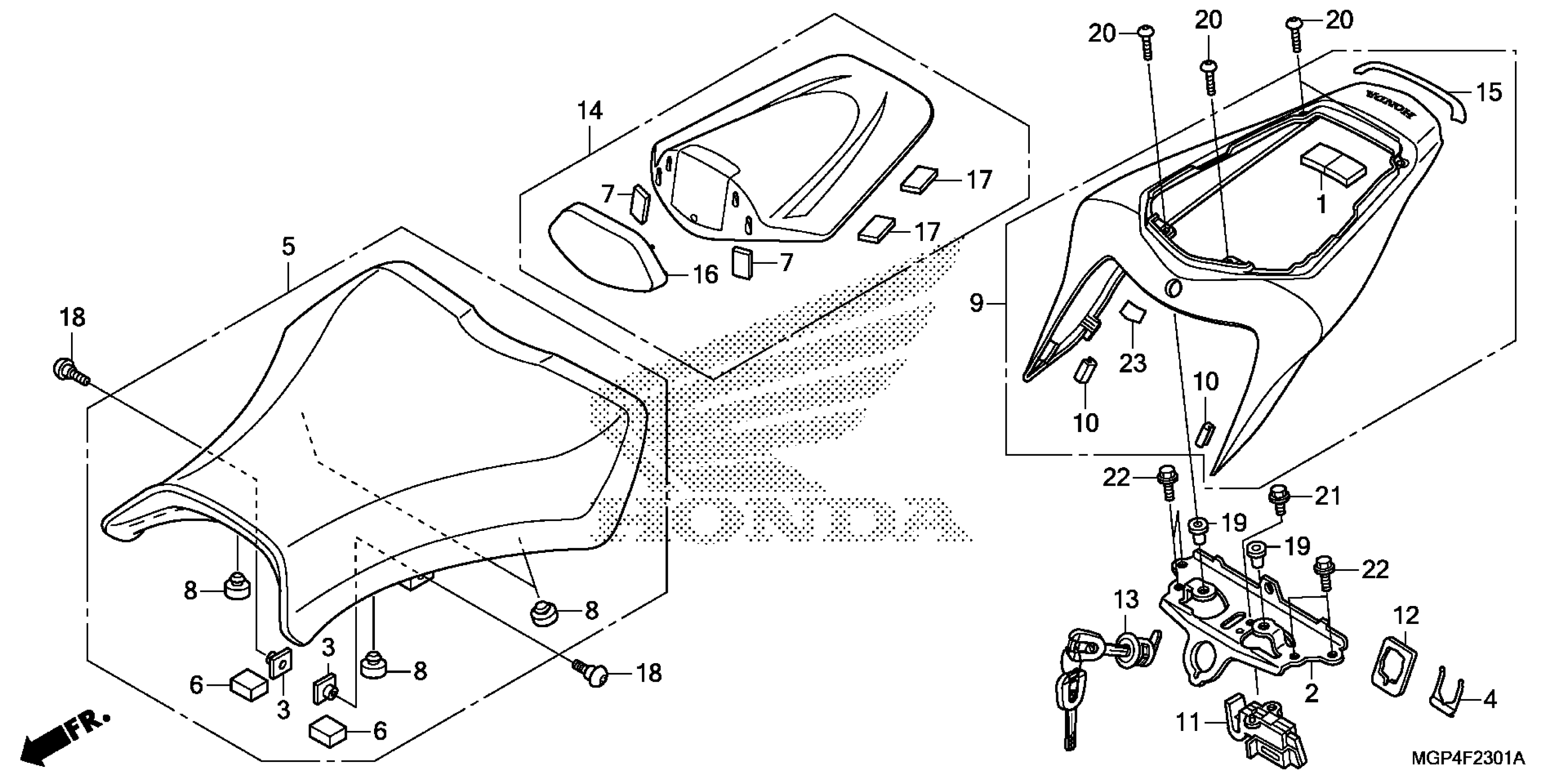

Honda CBR1000RSAC (14) CBR1000RS, JPN, VIN# JH2SC596-EK300001 SEAT (2) Diagram
