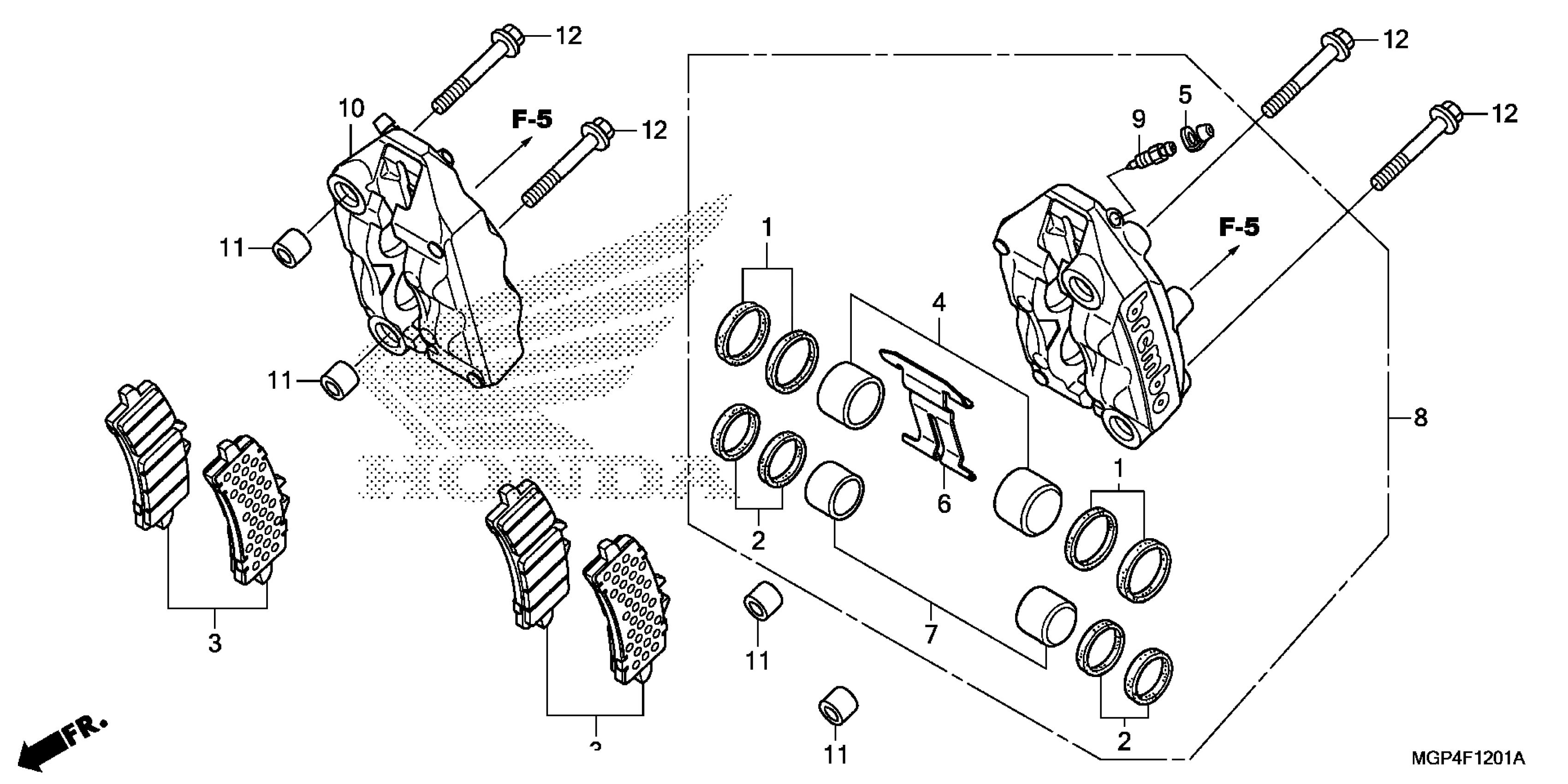

Honda CBR1000RSAC (14) CBR1000RS, JPN, VIN# JH2SC596-EK300001 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (32)

06451-MGP-D81

$27.33

SEAL SET, PISTON (30)

06452-MGP-D81

$26.51

PAD SET, FR.

06455-MGP-D81

$155.52

PISTON (32)

45107-MGP-D81

$113.98

CAP, BLEEDER

45112-MGP-D81

$19.23

SPRING, PAD

45113-MGP-D81

$23.33

PISTON (30)

45117-MGP-D81

$110.59

CALIPER SUB-ASSY., L. FR. (BREMBO)

45150-MGP-D81

$1,126.69

SCREW, BLEEDER

45211-MGP-D81

$18.84

CALIPER SUB-ASSY., R. FR. (BREMBO)

45250-MGP-D81

$1,078.13

SPACER, FR. FORK

51497-MEL-000

$5.12

BOLT, FLANGE (10X62)

90131-MFL-D20

$17.49
