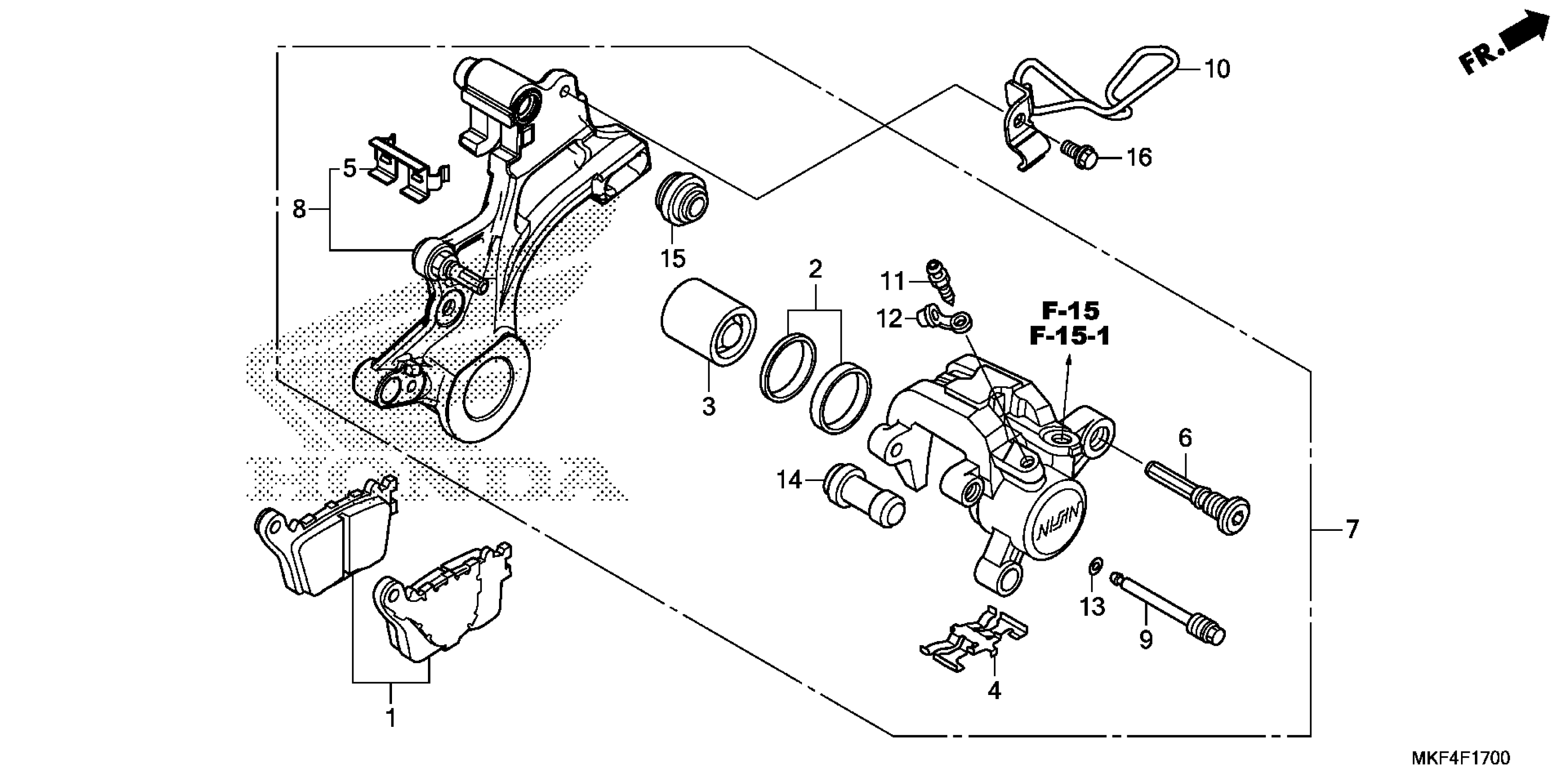

Honda CBR1000RRAC (17) MOTORCYCLE, JPN, VIN# JH2SC771-HK000001 TO JH2SC771-HK099999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MEL-D23

$57.78

SEAL SET, PISTON

06451-166-405

$13.04

PISTON

43107-MEL-D21

$23.01

SPRING, PAD

43108-MEL-D21

$3.15

RETAINER

43112-MEL-D21

$5.44

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MKF-D41

$333.02

BRACKET SUB-ASSY., RR.

43190-MKF-D41

$148.95

PIN, HANGER

43215-KZ4-J41

$5.25

GUIDE, RR. BRAKE HOSE

43319-MKF-D40

$15.15

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33
