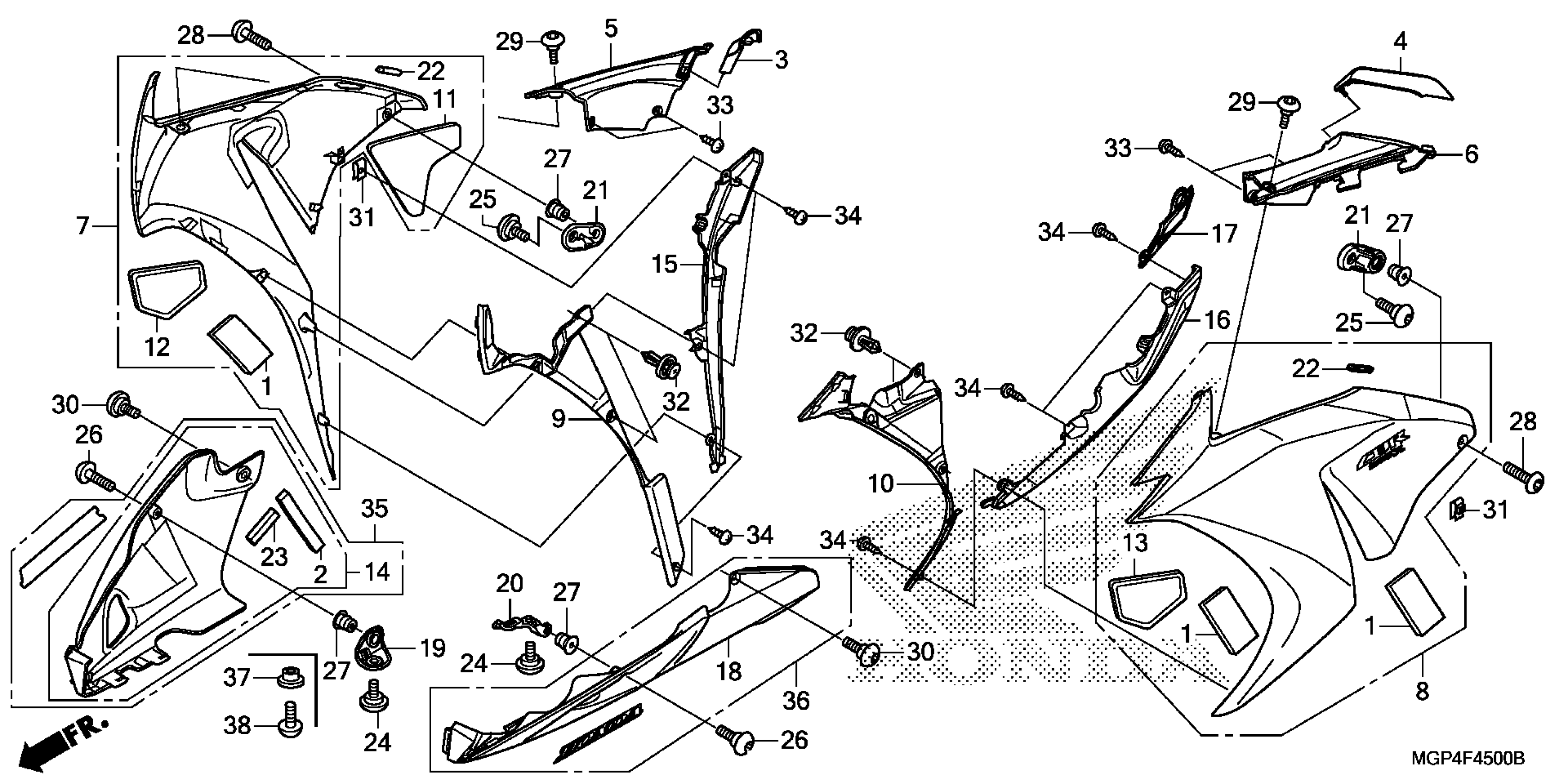

Honda CBR1000RRAC (14) CBR1000RR, JPN, VIN# JH2SC591-EK600001 MIDDLE COWL Diagram

#

Description
Price

1

MAT, CARBURETOR COVER

17269-MZ5-920

$3.55

2

MAT, L. ENGINE HANGER

50131-MFJ-D00

$1.72

3

RUBBER, R. DUCT COVER SEAL

64121-MGP-D00

$25.88

4

RUBBER, L. DUCT COVER SEAL

64123-MGP-D00

$25.88

5

COVER, R. AIR DUCT

64230-MGP-D00

$16.45

6

COVER, L. AIR DUCT

64240-MGP-D00

$15.29

7

COWL SET, R. MIDDLE (TYPE2) (WL)

64300-MGP-930ZB

$399.17

8

COWL SET, L. MIDDLE (TYPE2) (WL)

64350-MGP-930ZB

$399.17

9

COWL, R. MIDDLE (INNER)

64370-MGP-D01

$19.67

10

COWL, L. MIDDLE (INNER)

64375-MGP-D01

$21.58

11

MAT B, R. MIDDLE COWL

64392-MGP-D00

$16.87

12

MAT C, R. MIDDLE COWL

64395-MGP-A00

$15.91

13

MAT C, L. MIDDLE COWL

64396-MGP-A00

$15.91

15

COWL, R. LAYER

64411-MGP-D01

$44.22

16

COWL, L. LAYER

64421-MGP-D01

$44.22

19

STAY, R. COWL (LOWER)

64541-MFL-000

$3.32

20

STAY, L. COWL (LOWER)

64542-MFL-000

$3.32

21

STAY, MIDDLE COWL

64543-MFL-000

$2.74

22

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

23

MAT, AIR CLEANER SIDE COVER

83551-MCZ-300

$3.09

25

SCREW, SPECIAL (6MM)

90106-MBL-610

$2.03

26

SCREW, PAN (5X15)

90108-MFL-D20

$1.93

27

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

28

SCREW, PAN (5X15)

90113-MFL-D20

$1.91

29

SCREW, SPECIAL (5X14)

90113-MGP-D00

$1.86

30

SCREW, PAN (6X14)

90117-MFL-D20

$1.87

31

NUT, SPRING (4MM)

90302-SA4-003

$4.91

32

CLIP, BODY COVER

90683-GR1-003

$2.71

33

SCREW, TAPPING (4X10)

93903-24280

$1.23

34

SCREW, TAPPING (4X12)

93903-24380

Unavailable

35

COWL SET, R. (LOWER) (TYPE3) (WL)

64400-MGP-M30ZA

$310.54

36

COWL ASSY., L. (LOWER) (TYPE3) (WL)

64440-MGP-D60ZA

$327.64

37

COLLAR, SEAT SETTING

77103-MFR-670

$2.62

38

BOLT, SPECIAL (6X17)

90085-MZ1-000

$3.41
