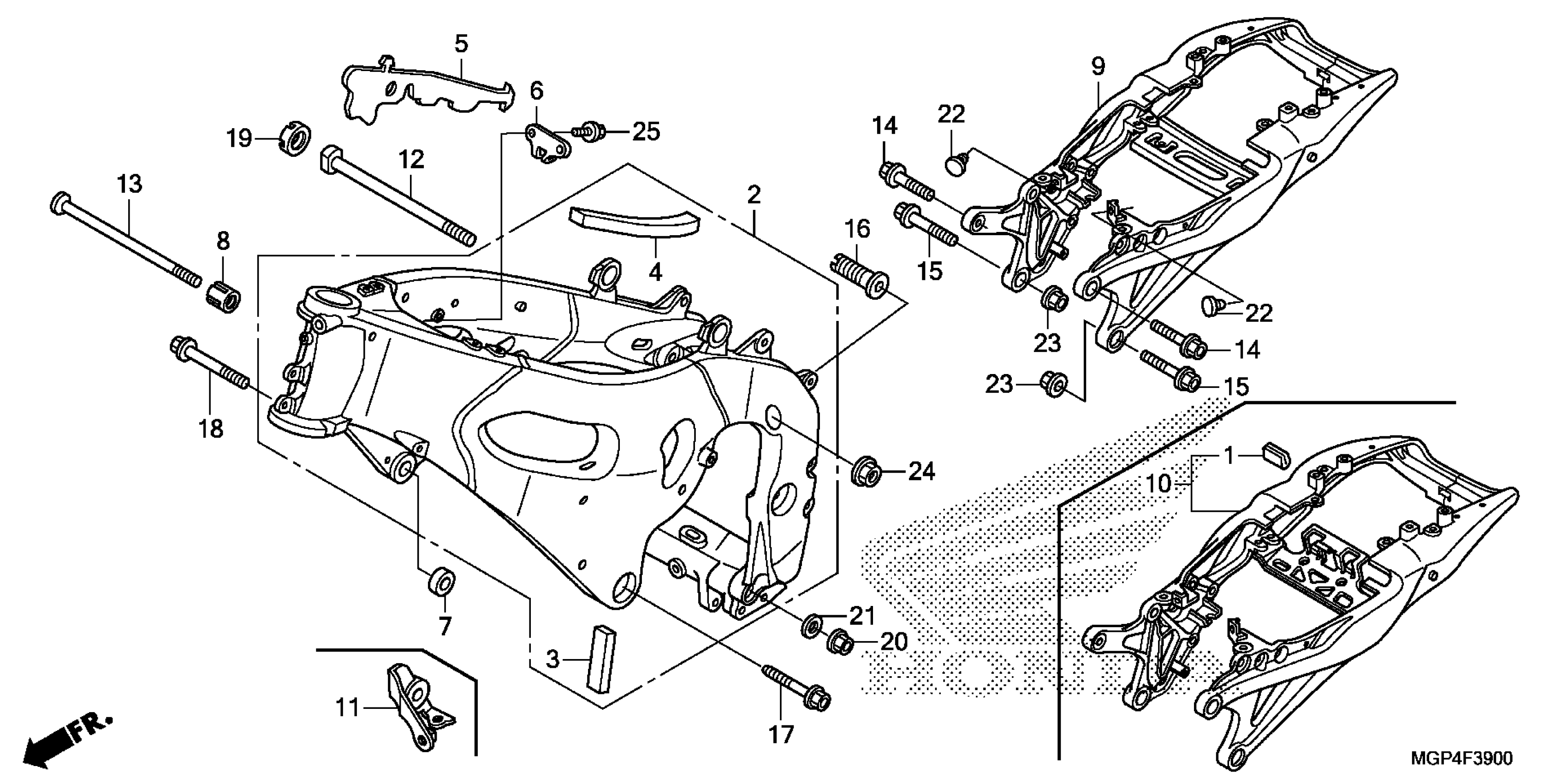

Honda CBR1000RRAC (12) CBR1000RR, JPN, VIN# JH2SC591-CK400001 TO JH2SC591-CK499999 FRAME Diagram

FRAME SET *NH461M* (TEMPLE BLACK METALLIC) This part replaces 50010-MFL-670ZA.

50010-MFL-671ZA

$2,902.75

FRAME SET *NH461M* (TEMPLE BLACK METALLIC)

50010-MFL-671ZA

$2,902.75

MAT, L. ENGINE HANGER

50131-MFJ-D00

$1.90

MAT A, PIVOT BRACKET

50132-MFJ-J00

$2.39

STAY, HEAT GUARD RUBBER

50171-MFL-000

$4.98

COLLAR A, ENGINE HANGER

50193-MFL-000

$4.96

COLLAR C, ENGINE HANGER

50194-MFL-000

$19.52

RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC)

50200-MFL-000ZA

$488.89

BOLT, SPECIAL (12X261.5)

90101-MFL-000

$15.03

BOLT, SPECIAL (12X269.5)

90102-MFL-000

$21.90

BOLT, FLANGE (10X29)

90109-MFL-000

$7.16

BOLT, FLANGE (10X33.5)

90110-MFL-000

$7.16

BOLT, ADJUSTING (20X1.0X49.5)

90152-MFL-000

$15.08

BOLT, FLANGE (12X50)

90163-MFL-D20

$4.45

BOLT, FLANGE (12X45)

90164-MFL-D20

$4.45

NUT, LOCK (20MM) (P=1.0)

90303-MFJ-D00

$7.23

NUT, FLANGE (12MM)

90371-MFL-000

$1.74

WASHER, SPECIAL (24X12X2.3)

90439-SB2-010

$13.83

RUBBER, SEPARATOR MOUNTING

90572-KV3-300

$4.05

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT, FLANGE (12MM)

94050-12000

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62
