Description

Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

2

LOCK SET This part replaces 35010-MGP-A93.

35010-MGP-A97

$439.21

3

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MGP-A93.

35100-MGP-A94

$185.64

3

SWITCH ASSY., COMBINATION & LOCK

35100-MGP-A94

$185.64

4

BASE, CONTACT

35101-MFL-641

$79.69

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

6

EMBLEM, KEY | (Optional).Use up to Frame SN GK800720.

35113-MGP-000

$4.17

6

EMBLEM, KEY | Use from Frame SN GK800721.

35113-MJK-N20

$3.46

7

KEY, BLANK | (Optional).

35121-MGP-A93

$23.42

9

HANDLEBAR, R. This part replaces 53100-MGP-305.

53100-MGP-D60

$193.02

10

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

11

WEIGHT, HANDLEBAR

53105-MEE-940

$17.82

12

RUBBER, HANDLE WEIGHT (B)

53107-MJ0-000

$3.77

13

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

14

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

15

HANDLEBAR, L. This part replaces 53150-MGP-305.

53150-MGP-D60

$193.02

16

STAY, CLUTCH CABLE

53191-MFL-000

$10.10

17

SCREW-WASHER (5X25)

53192-MFL-000

$1.85

18

CAP, STEERING NUT

53232-MFL-010

$2.38

19

BRIDGE, FORK TOP

53300-MGP-D61

$256.74

21

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

21

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

22

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

23

BOLT, FLANGE (8X40)

90107-MGE-000

$2.66

24

BOLT, FLANGE SOCKET (8X40)

90124-MFL-000

$3.57

25

SCREW, OVAL (6X60)

90191-KT7-750

$4.74

26

NUT, STEERING STEM

90304-MFL-000

$14.42

27

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

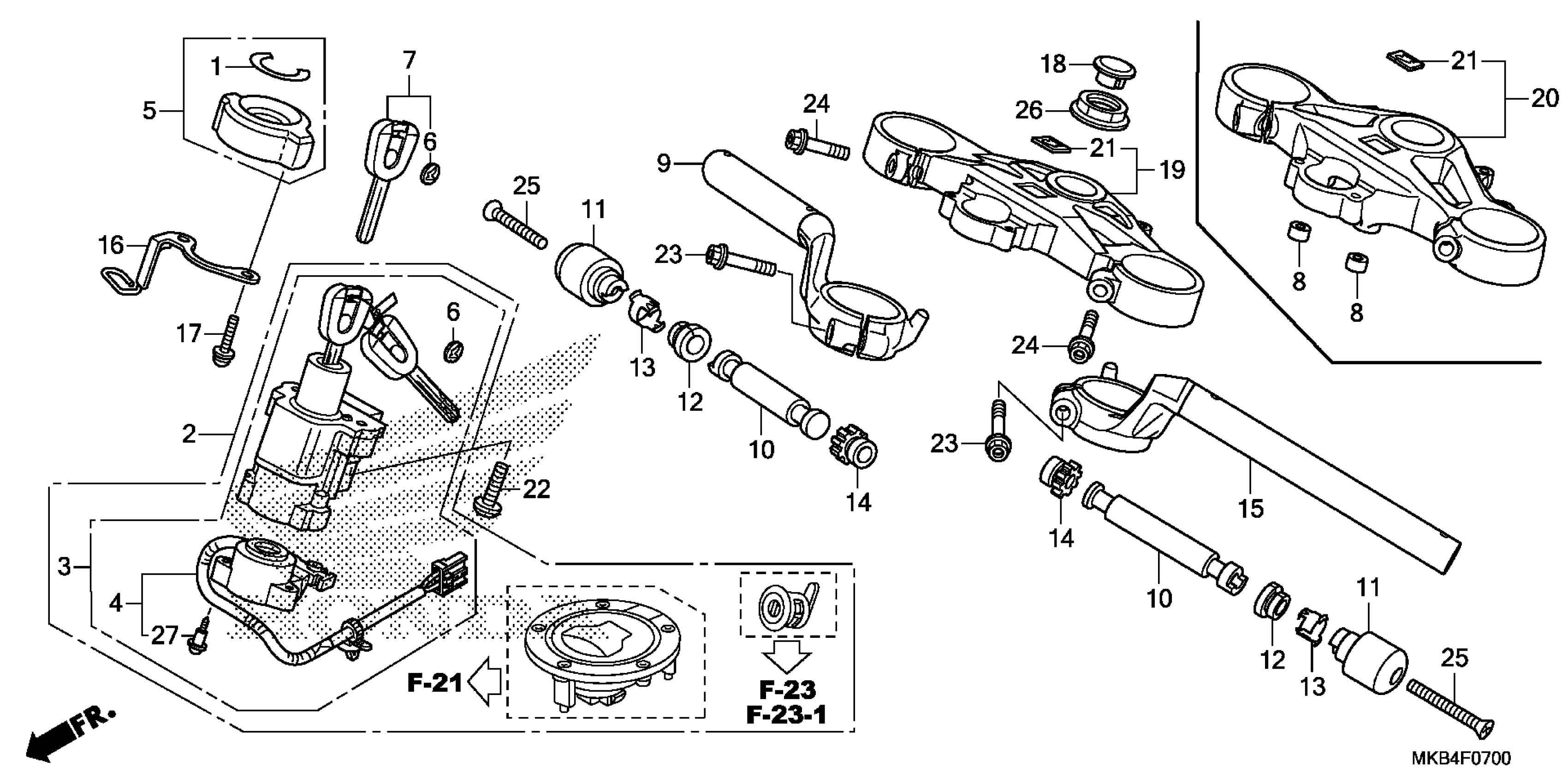

Honda CBR1000RRA (16) MOTORCYCLE, JPN, VIN# JH2SC590-GK800001 HANDLEBAR@TOP BRIDGE Diagram
