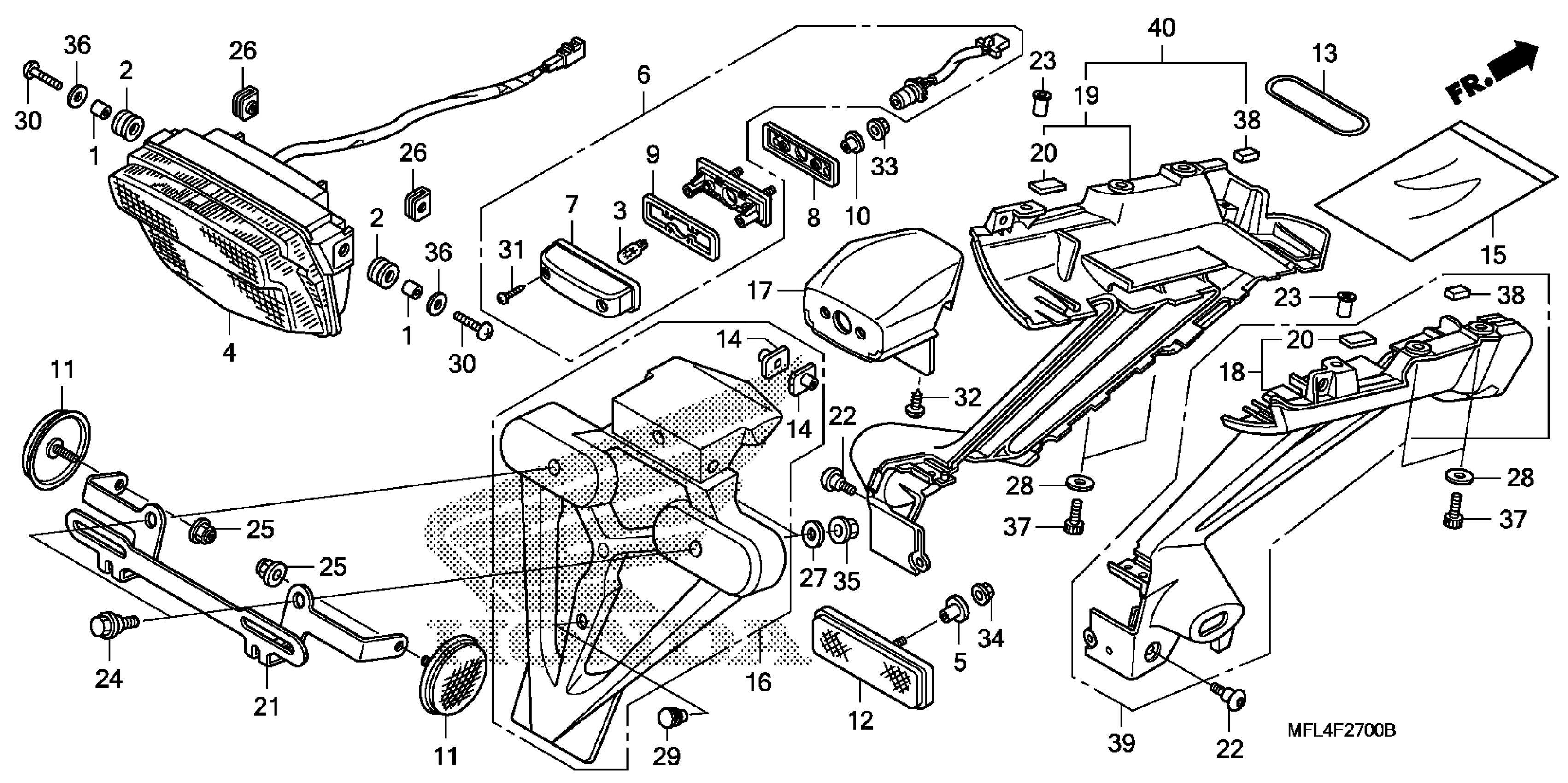

Honda CBR1000RRA (08) HURRICANE 1000, JPN, VIN# JH2SC590-8M000001 TO JH2SC590-8M019999 TAILLIGHT (1) Diagram

#

Description
Price

1

COLLAR (5MM)

18295-GW0-920

$2.62

2

RUBBER, MOUNTING

19639-GBC-000

$1.29

3

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

4

TAILLIGHT UNIT

33701-MFL-671

$159.19

5

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$3.98

6

LIGHT ASSY., LICENSE (12V 5W)

33720-MFL-641

$90.16

7

COVER, LICENSE

33721-GET-671

$17.66

8

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.74

9

GASKET, LENS

33729-MCZ-003

$8.75

10

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.21

11

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

12

REFLECTOR, REFLEX

33741-MCJ-G00

Unavailable

13

BAND, U-LOCK

50290-MZ7-000

$18.30

14

NUT, SPECIAL (6MM)

61304-HB3-003

$2.69

15

BAG, SERVICE BOOK

77251-GR1-000

$4.10

16

BRACKET, LICENSE LIGHT

80100-MFL-670

$24.76

17

COVER, LICENSE LIGHT

80107-MFL-670

$8.07

18

STAY, R. LICENSE LIGHT This part replaces 80115-MFL-000.

80115-MFL-305

Unavailable

19

STAY, L. LICENSE LIGHT This part replaces 80116-MFL-000.

80116-MFL-010

Unavailable

20

RUBBER, SPACER

80126-GAG-750

$2.19

21

BRACKET, NUMBER PLATE

84700-MFL-670

Unavailable

22

SCREW, PAN (6X14)

90106-KBV-000

$3.73

23

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

24

BOLT, FLANGE (6MM)

90111-187-000

$6.94

25

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

26

NUT, CLIP (5MM)

90312-MT3-000

$4.37

27

WASHER (6MM)

90485-MB2-000

$1.85

28

WASHER, PLAIN (6MM)

90525-428-900

$1.87

29

PLUG, CONE

90899-MFJ-A00

$3.29

30

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$0.84

31

SCREW, TAPPING (4X16)

93901-24480

$0.76

32

SCREW, TAPPING (4X10)

93903-24280

$1.25

33

NUT, FLANGE (5MM)

94050-05000

$1.21

34

NUT, FLANGE (5MM)

94050-05070

$1.19

35

NUT, FLANGE (6MM)

94050-06070

$1.34

36

WASHER, PLAIN (5MM)

94101-05000

$0.91

37

BOLT, SOCKET (6X18)

96600-06018-07

$1.69
