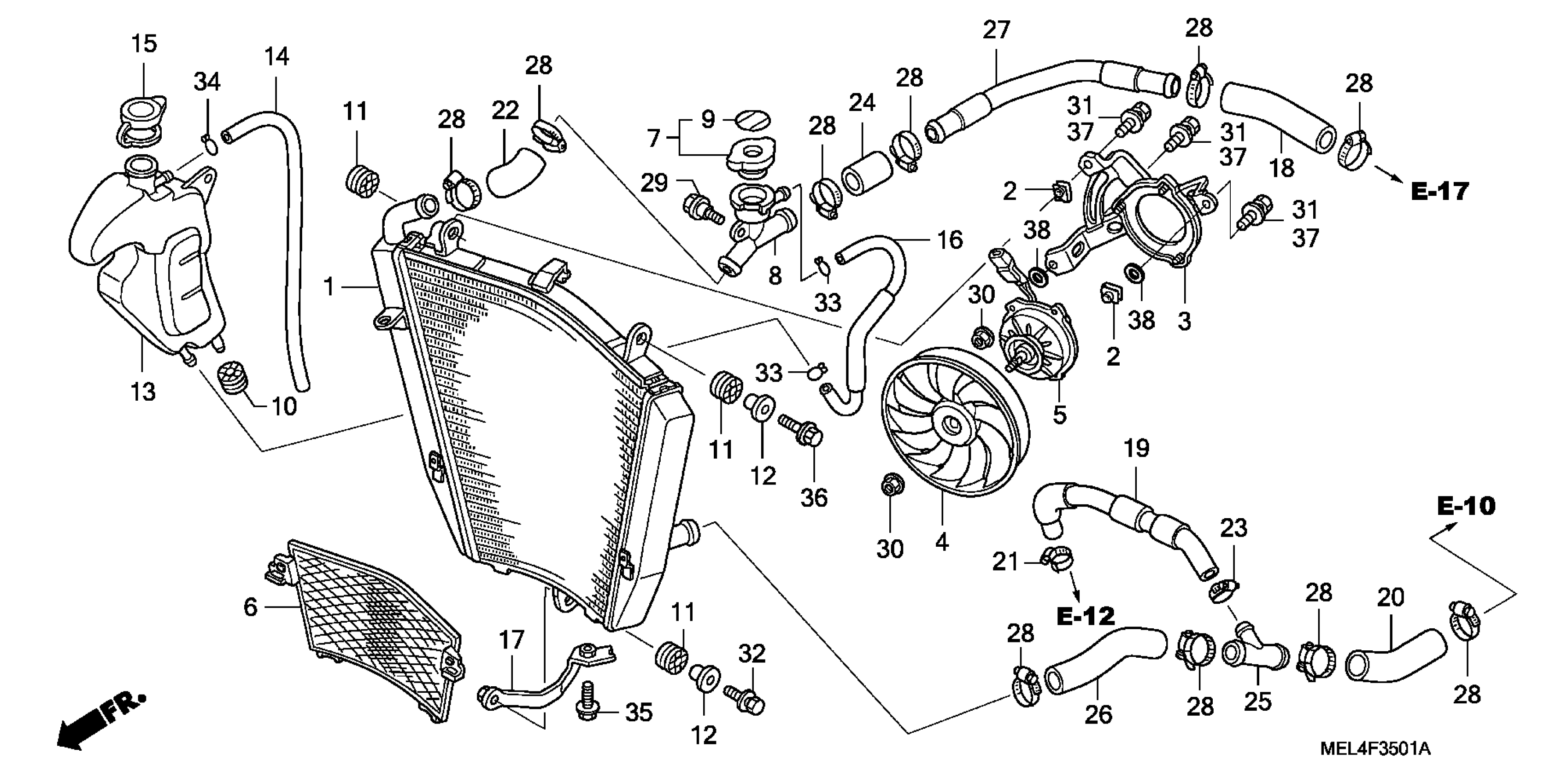

Honda CBR1000RRA (06) MOTORCYCLE, JPN, VIN# JH2SC570-6M200001 TO JH2SC570-6M299999 RADIATOR (2) Diagram

#

Description
Price

1

RADIATOR

19010-MEL-D21

Unavailable

2

NUT, SETTING

19014-KEA-003

$2.88

3

SHROUD

19015-MEL-D21

Unavailable

4

FAN, COOLING

19020-MFA-D01

$37.07

5

MOTOR ASSY., FAN

19030-MEL-D21

Unavailable

6

GRILLE, RADIATOR

19032-MEL-D20

Unavailable

7

CAP, RADIATOR

19037-GEE-710

$27.19

8

NECK, FILLER

19039-MEL-003

$26.90

9

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

10

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.70

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

12

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.78

13

TANK, RADIATOR RESERVE

19101-MEL-D20

$36.97

14

TUBE, OVERFLOW

19103-MEL-D20

Unavailable

15

CAP, RESERVE TANK

19104-MB0-700

$10.92

16

TUBE, RESERVE TANK FILLER

19104-MEL-D20

Unavailable

17

STAY, RADIATOR (LOWER)

19113-MEL-D20

Unavailable

18

HOSE A, R. RADIATOR

19501-MEL-D20

$11.39

19

HOSE, OIL COOLER

19502-MEL-D20

$14.19

20

HOSE A, L. RADIATOR

19503-MEL-D20

Unavailable

21

CLAMP, HOSE (25MM)

19504-KT7-751

$4.93

22

HOSE, FILLER NECK

19504-MEL-D20

Unavailable

23

CLAMP A, WATER HOSE

19505-KS6-700

$10.57

24

HOSE C, WATER

19506-MEL-D20

$2.68

25

JOINT, HOSE (THREE-WAY)

19507-MEE-000

$10.56

26

HOSE B, L. RADIATOR

19508-MEL-D20

$11.12

27

PIPE, WATER

19509-MEL-D20

$36.20

28

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

29

BOLT, FLANGE (6MM)

90111-187-000

$5.21

30

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

31

BOLT-WASHER (6X12) | (Optional). Use up to Frame SN 6M212997

93401-06012-08

Unavailable

31

BOLT-WASHER (6X12) | Use from Frame SN 6M212998

93401-06012-08

Unavailable

32

BOLT-WASHER (6X25)

93404-06025-00

$1.00

33

CLIP, TUBE (B10)

95002-02100

$1.72

34

CLIP, TUBE (C9)

95002-50000

$1.14

35

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

36

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

37

BOLT-WASHER (6X14) | (Optional). Use up to Frame SN 6M212997 This part replaces 90104-MEL-305.

93401-06014-07

$1.48

37

BOLT-WASHER (6X14) | (Optional). Use up to Frame SN 6M212997

93401-06014-07

$1.48

38

WASHER (6MM) | (Optional). Use up to Frame SN 6M212997

90502-MEL-305

$1.55
