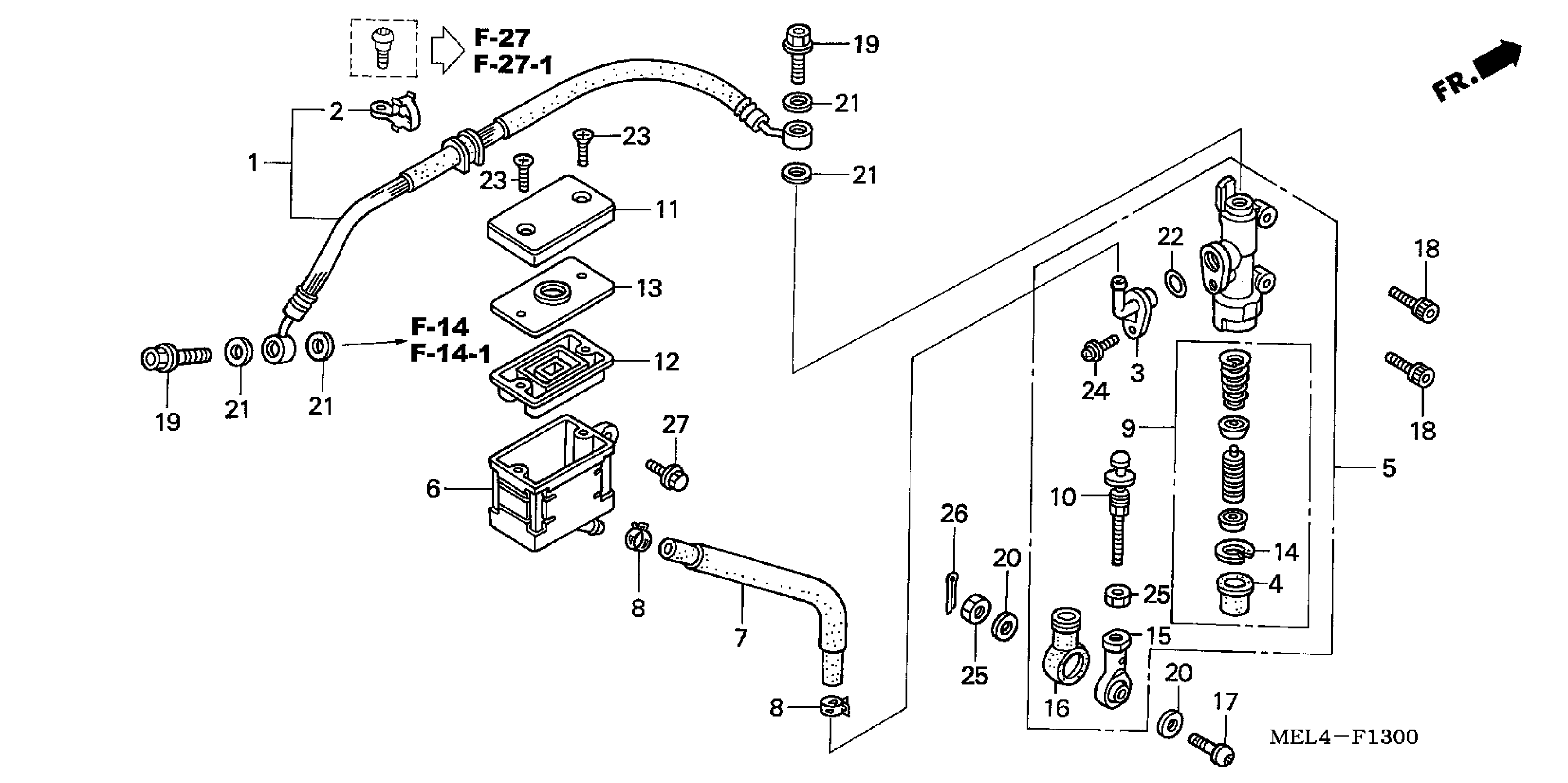

Honda CBR1000RRA (05) MOTORCYCLE, JPN, VIN# JH2SC570-5M100001 TO JH2SC570-5M199999 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-MEL-014

Unavailable

CLAMP, RR. BRAKE HOSE

43469-MEL-000

$4.52

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.74

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR.

43510-MEL-006

Unavailable

CUP, OIL

43511-KV3-831

$23.70

HOSE, RR. MASTER CYLINDER

43512-MEL-006

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-305

$67.65

ROD, PUSH

43530-MCZ-006

$24.52

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP

46182-500-013

$4.90

TIE ROD

46505-MCJ-751

Unavailable

COVER, DUST

46506-MCJ-750

Unavailable

BOLT, SOCKET (8X30)

90125-MCJ-750

$6.67

BOLT, SOCKET (6X20)

90135-MEL-000

$1.62

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.66

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BOLT, FLANGE (6X18)

96300-06018-00

$1.49

BOLT, FLANGE (6X18) This part replaces 96500-06018-00.

96300-06018-00

$1.49
