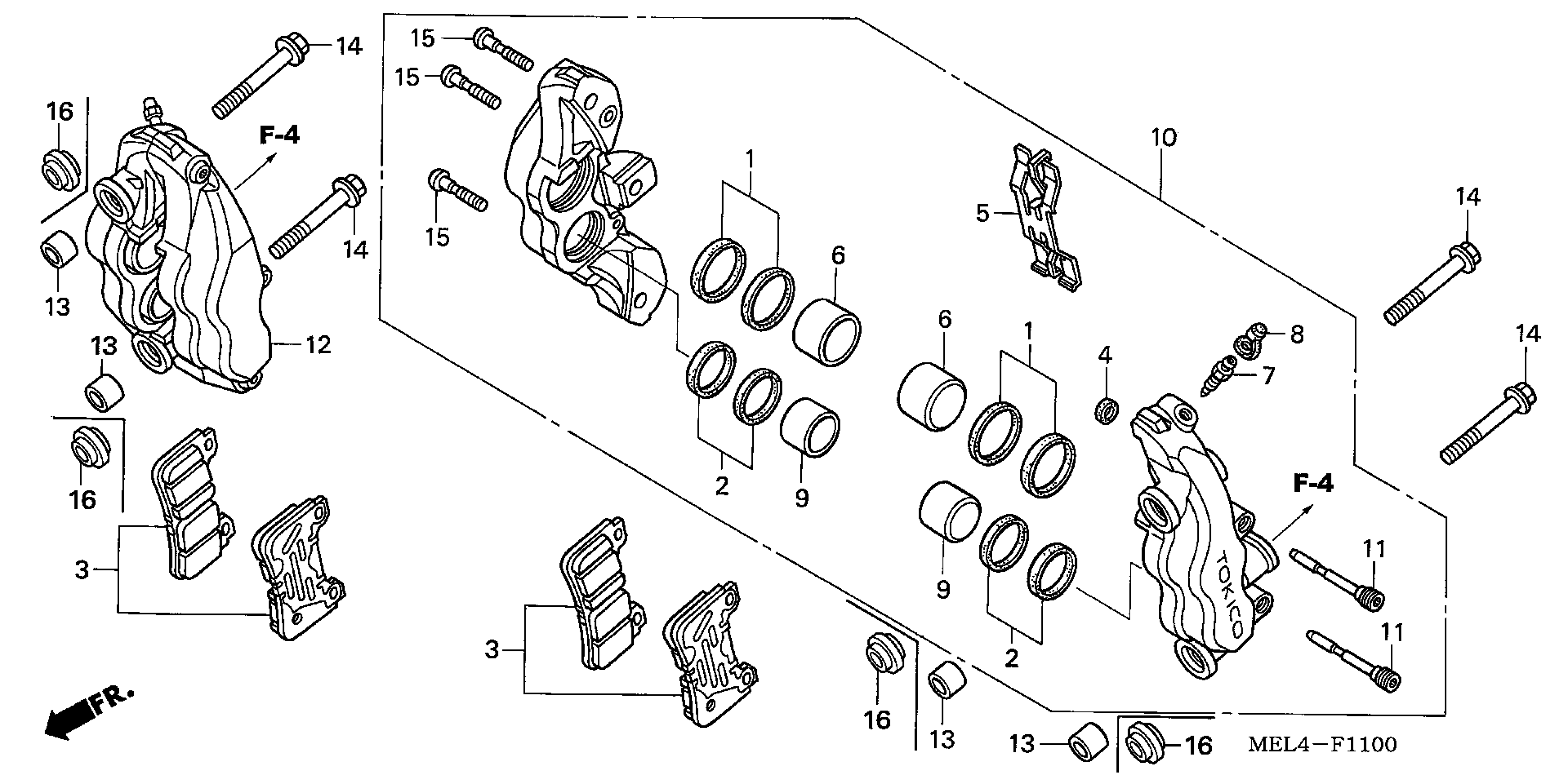

Honda CBR1000RRA (05) MOTORCYCLE, JPN, VIN# JH2SC570-5M100001 TO JH2SC570-5M199999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (32)

06451-MEL-003

$4.80

SEAL SET, PISTON (30)

06452-MEL-003

$4.80

PAD SET, FR. This part replaces 06455-MEL-003.

06455-MEL-013

$46.72

PAD SET, FR.

06455-MEL-013

$46.72

SEAL, JOINT

45103-MEL-003

$1.97

SPRING, PAD

45106-MEL-003

$6.75

PISTON (32)

45107-MEL-003

$48.87

SCREW, BLEEDER This part replaces 45111-MEL-003.

45111-MEL-013

$2.11

SCREW, BLEEDER

45111-MEL-013

$2.11

CAP, BLEEDER

45112-MEL-003

$1.49

PISTON (30)

45117-MEL-003

$47.03

CALIPER SUB-ASSY., L. FR. (TOKIKO) This part replaces 45150-MEL-013.

45150-MEL-023

Unavailable

CALIPER SUB-ASSY., L. FR. (TOKIKO)

45150-MEL-023

Unavailable

PIN, HANGER This part replaces 45215-MEL-013.

45215-MFL-881

$5.83

CALIPER SUB-ASSY., R. FR. This part replaces 45250-MEL-013.

45250-MEL-023

Unavailable

CALIPER SUB-ASSY., R. FR.

45250-MEL-023

Unavailable

SPACER, FR. FORK

51497-MEL-000

$5.12

BOLT, FLANGE (10X57)

90131-MEL-000

$17.49

BOLT, TORX (8X40)

90141-MEL-003

$4.85
