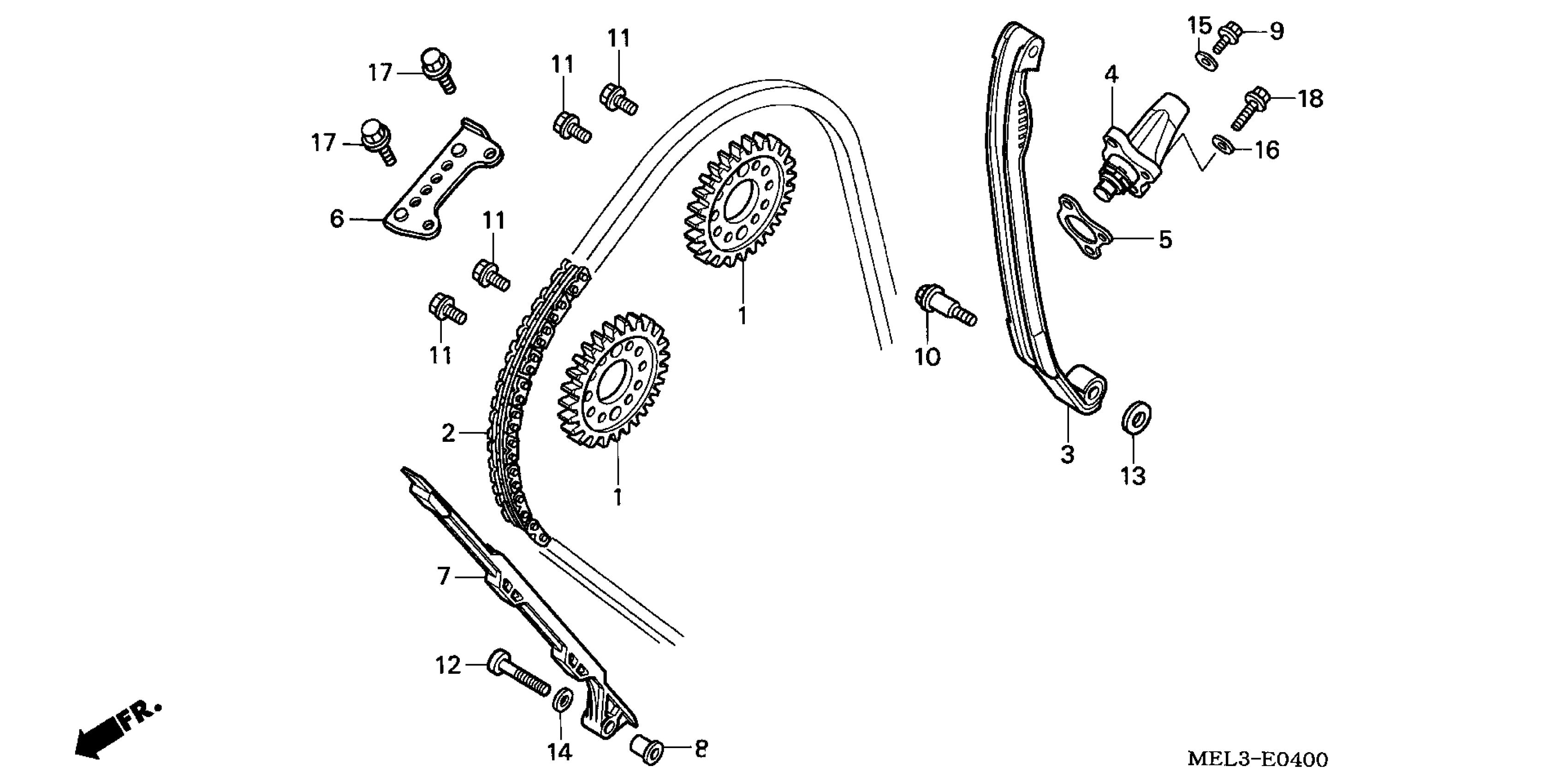

Honda CBR1000RRA (05) MOTORCYCLE, JPN, VIN# JH2SC570-5M100001 TO JH2SC570-5M199999 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MEL-000

$46.47

CHAIN, CAM (125L) (BORG WARNER) This part replaces 14401-MAS-003.

14401-MAS-013

$103.38

TENSIONER, CAM CHAIN

14510-MEL-010

Unavailable

LIFTER ASSY., TENSIONER This part replaces 14520-MEL-000.

14520-MEL-003

$113.29

LIFTER ASSY., TENSIONER

14520-MEL-003

$113.29

GASKET, TENSIONER HOLE

14523-MCW-003

$4.24

GUIDE B, CAM CHAIN

14546-MCJ-000

$41.78

GUIDE A, CAM CHAIN (NOK)

14620-MW0-003

$89.91

COLLAR (6MM)

14626-MCJ-000

$2.80

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95

PIVOT, CAM CHAIN TENSIONER

90022-MBW-000

$5.69

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.82

BOLT, TORX (6X32)

90108-MEL-000

$1.96

WASHER (6MM)

90401-MBW-000

$3.66

WASHER (6MM)

90408-KW1-900

$3.91

WASHER, SEALING (6MM)

90442-397-000

$2.60

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

BOLT, FLANGE (6X25)

96001-06025-00

$2.49
