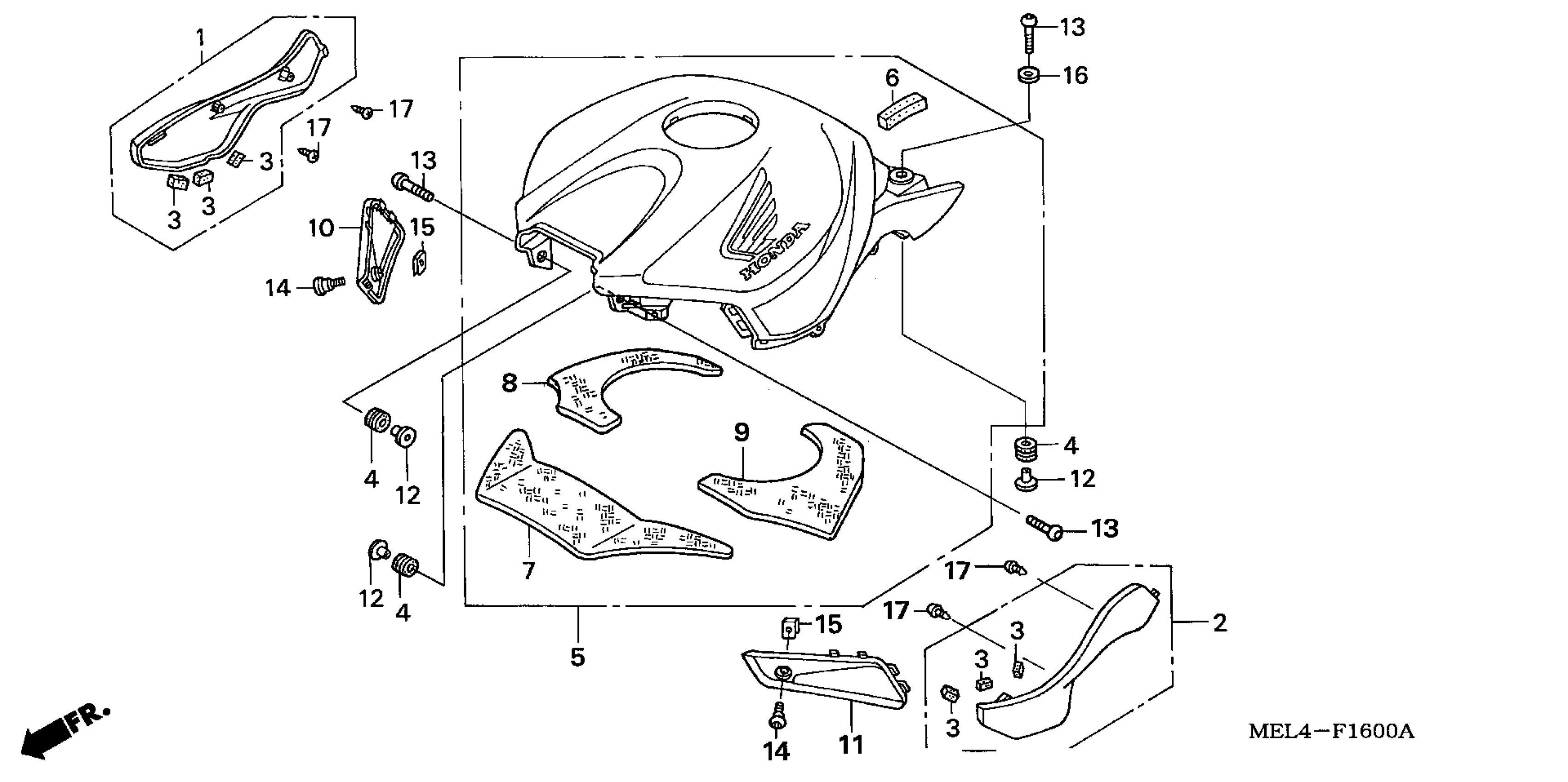

Honda CBR1000RRA (04) MOTORCYCLE, JPN, VIN# JH2SC570-4M000001 TO JH2SC570-4M099999 TOP SHELTER Diagram

PAD, R. FRAME

50951-MEL-000

$13.66

PAD, L. FRAME

50952-MEL-000

$13.66

RUBBER, FRAME PAD CUSHION

50953-MEL-300

$1.49

RUBBER, RR. FENDER CUSHION

80101-165-000

$3.74

SHELTER SET, TOP (TYPE1) (WL)

83150-MEL-307ZA

$658.72

SHELTER SET, TOP (TYPE1) (WL) This part replaces 83150-MEL-670ZA.

83150-MEL-307ZA

$658.72

SHELTER SET, TOP (TYPE4) (WL) This part replaces 83150-MEL-670ZD.

83150-MEL-671ZD

$673.70

SHELTER SET, TOP (TYPE5) (WL) This part replaces 83150-MEL-670ZE.

83150-MEL-671ZE

$700.95

SHELTER SET, TOP (TYPE1) (WL) This part replaces 83150-MEL-671ZA.

83150-MEL-307ZA

$658.72

SHELTER SET, TOP (TYPE4) (WL)

83150-MEL-671ZD

$673.70

SHELTER SET, TOP (TYPE5) (WL)

83150-MEL-671ZE

$700.95

MAT, TOP SHELTER

83156-MEL-300

$3.25

MAT, FR. TOP SHELTER This part replaces 83157-MEL-670.

83157-MEL-A00

Unavailable

MAT, FR. TOP SHELTER

83157-MEL-A00

Unavailable

MAT, R. RR. TOP SHELTER This part replaces 83158-MEL-671.

83158-MEL-A00

Unavailable

MAT, R. RR. TOP SHELTER

83158-MEL-A00

Unavailable

MAT, L. RR. TOP SHELTER This part replaces 83159-MEL-671.

83159-MEL-A00

Unavailable

MAT, L. RR. TOP SHELTER

83159-MEL-A00

Unavailable

COVER, R. FR. SIDE

83165-MEL-000

$9.95

COVER, L. FR. SIDE

83166-MEL-000

$9.38

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.78

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

NUT, CLIP (5MM)

90312-MT3-000

$4.57

WASHER, PLAIN (6MM)

90525-428-900

$1.92

SCREW, TAPPING (4X8)

93903-24180

$1.49
