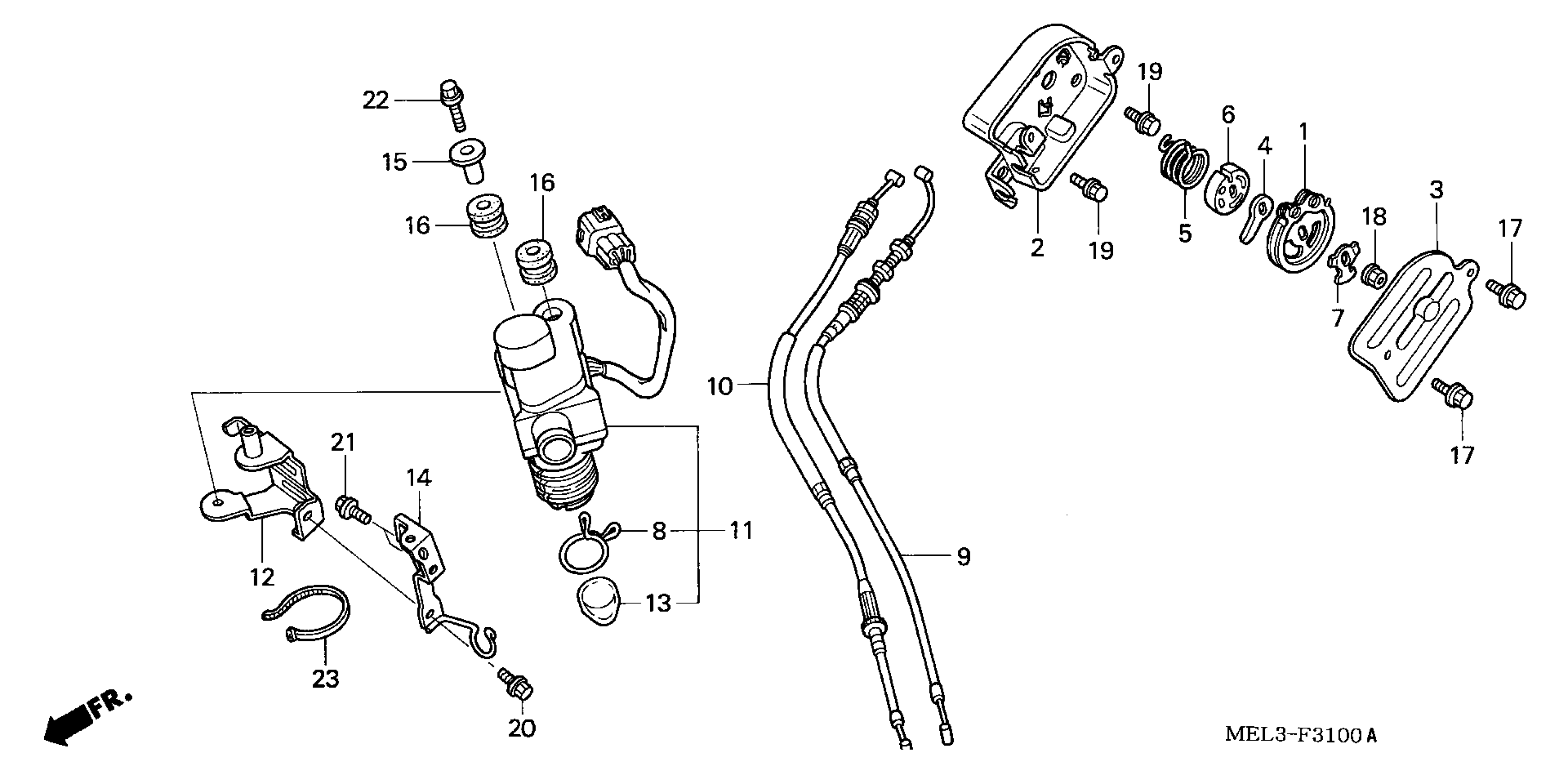

Honda CBR1000RRA (04) MOTORCYCLE, JPN, VIN# JH2SC570-4M000001 TO JH2SC570-4M099999 SERVO MOTOR (1) Diagram

GUIDE, VALVE CABLE

18180-MEL-000

$11.22

BODY, VALVE GUIDE

18183-MEL-000

$24.12

COVER, VALVE GUIDE

18184-MEL-000

$7.48

STOPPER, EX. VALVE

18185-MEL-000

Unavailable

SPRING, RETURN

18186-MEL-000

$3.64

HOLDER, SPRING

18189-MEL-000

$4.97

WASHER B, LOCK

18195-MEL-000

$3.07

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

CABLE A, EX. VALVE

18910-MEL-000

Unavailable

CABLE B, EX. VALVE

18920-MEL-000

Unavailable

MOTOR ASSY., SERVO

31420-MEL-000

$332.18

STAY A, SERVO MOTOR

31421-MEL-000

$8.43

CAP

31425-KAE-004

$3.66

STAY B, SERVO MOTOR

31425-MEL-000

Unavailable

COLLAR (6.3X13)

50324-425-010

$5.05

GROMMET, SEAT SETTING

77205-KM4-000

$2.15

BOLT, FLANGE (5X8)

90002-ZG3-000

$1.62

NUT, HEX. (6MM)

94001-06020-0S

$1.49

BOLT, FLANGE (6X8)

96001-06008-02

$1.54

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

BAND (BLACK 3.5X140)

35701-MG9-950

$1.89
