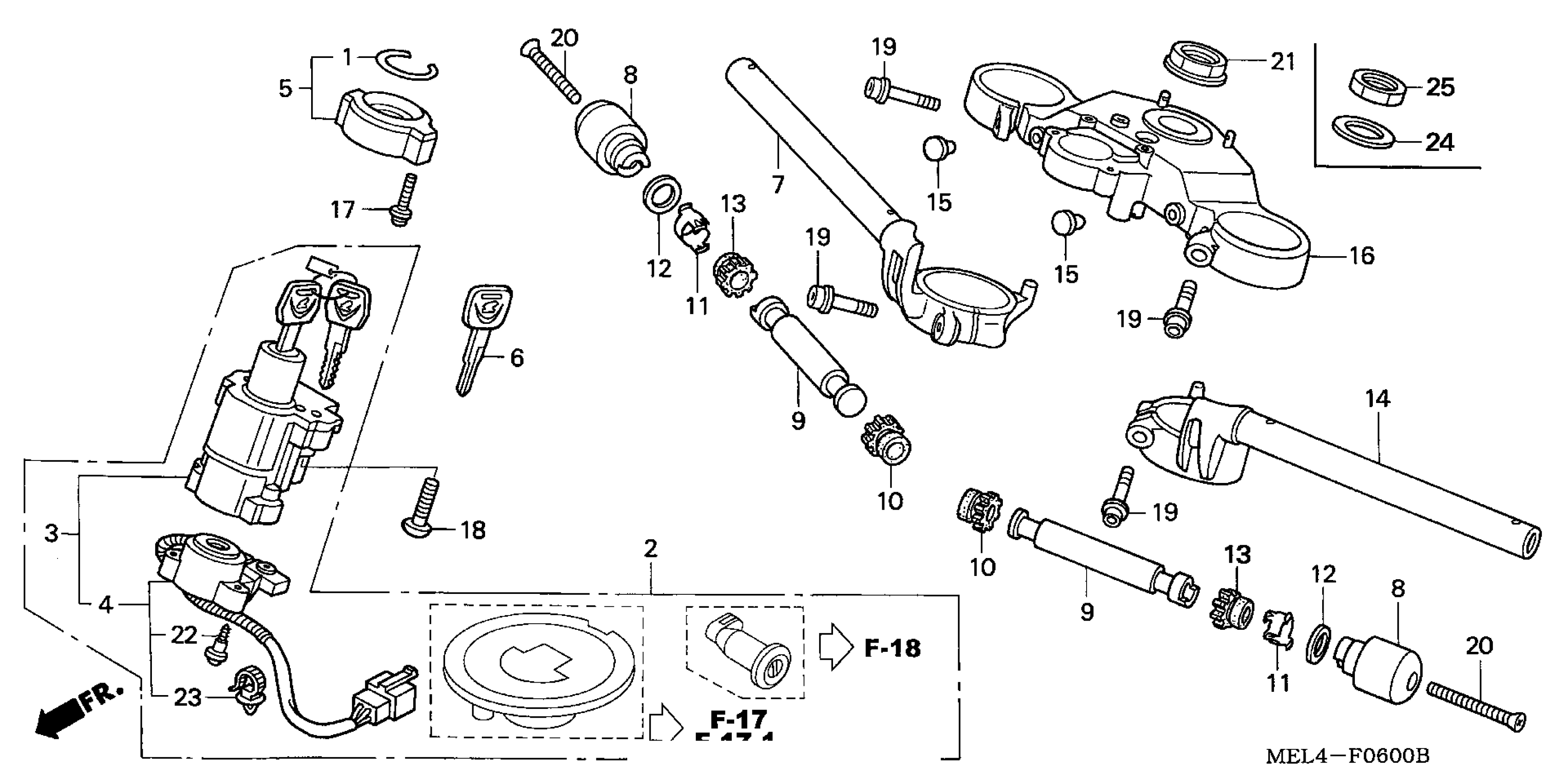

Honda CBR1000RRA (04) MOTORCYCLE, JPN, VIN# JH2SC570-4M000001 TO JH2SC570-4M099999 HANDLEBAR + TOP BRIDGE Diagram

SEAL, IGNITION SWITCH This part replaces 30433-MBW-600.

30433-MBW-602

$2.84

SEAL, IGNITION SWITCH This part replaces 30433-MBW-601.

30433-MBW-602

$2.84

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

LOCK SET

35010-MEL-670

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-MEL-671

Unavailable

BASE, CONTACT

35101-MEL-641

Unavailable

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

KEY, BLANK (TYPE1) | (Optional).

35121-MAS-G01

$12.74

HANDLEBAR, R.

53100-MEL-000

Unavailable

WEIGHT, HANDLEBAR

53105-MEE-940

$17.82

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

RUBBER B, HANDLE WEIGHT

53107-KM9-000

$3.90

RING, HANDLE WEIGHT SNAP

53108-KAZ-000

$3.66

PLATE, HANDLE WEIGHT

53109-MEE-000

$2.93

RUBBER B, HANDLE WEIGHT

53109-MV4-000

$2.67

HANDLEBAR, L.

53150-MEL-000

Unavailable

PLUG, HANDLE LEVER

53174-GS9-610

$2.16

BRIDGE, FORK TOP

53230-MEL-000

Unavailable

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

BOLT, FLANGE SOCKET (8X40)

90140-MCJ-750

$3.24

SCREW, OVAL (6X60)

90191-KT7-750

$4.74

NUT, STEERING STEM

90304-MK3-000

$16.34

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.30
