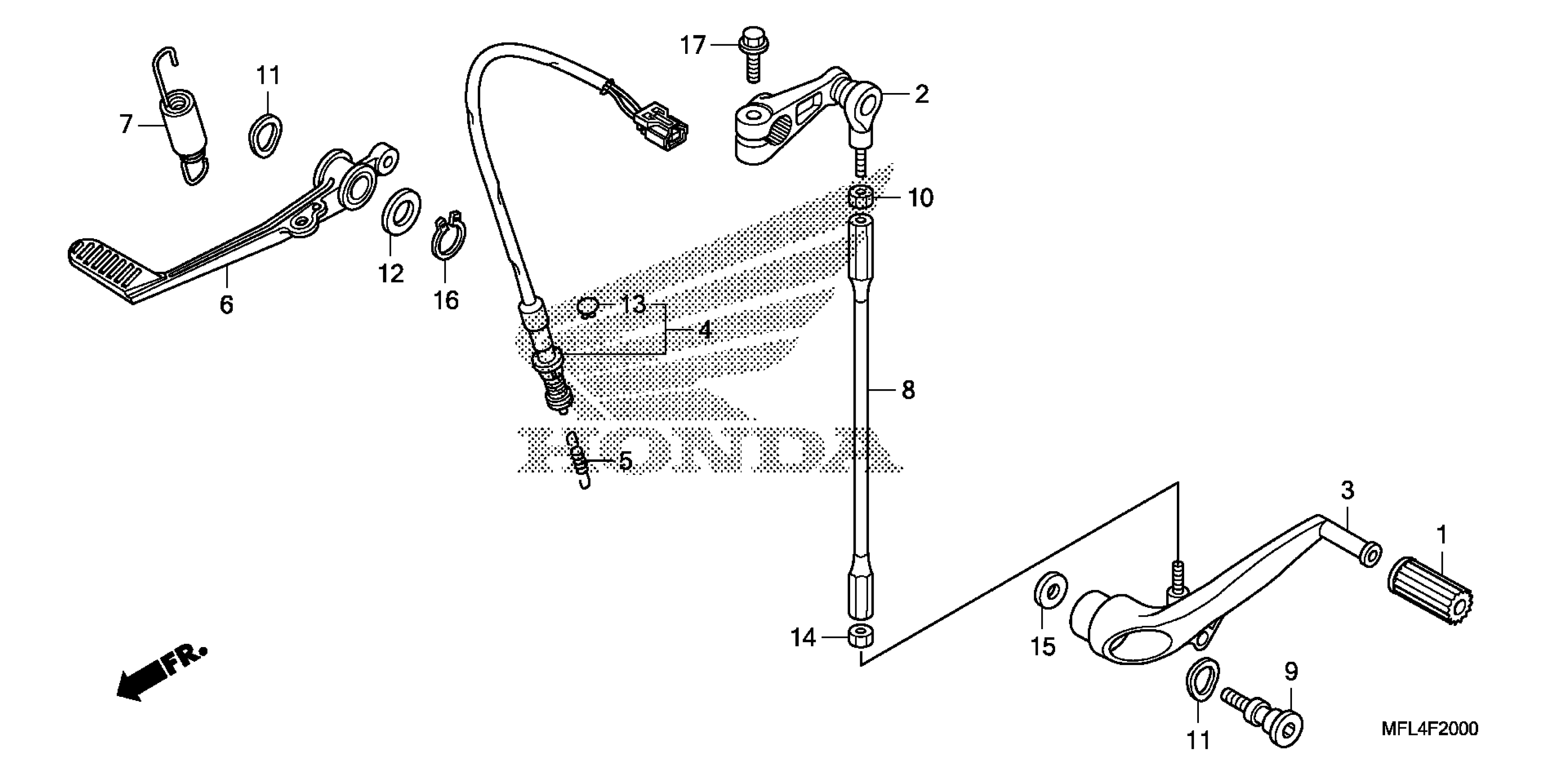

Honda CBR1000RR5AC (11) MOTORCYCLE, JPN, VIN# JH2SC59L-BK300001 PEDAL Diagram

#

Description
Price

1

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

2

ARM, GEARSHIFT

24710-MFL-D20

$66.90

3

PEDAL, GEARSHIFT (COO) This part replaces 24720-MFL-D20.

24720-MFL-305

$82.88

3

PEDAL, GEARSHIFT (COO)

24720-MFL-305

$82.88

4

SWITCH ASSY., RR. STOP (TOYO) This part replaces 35350-MFL-000.

35350-MFL-003

$39.25

4

SWITCH ASSY., RR. STOP (TOYO)

35350-MFL-003

$39.25

5

SPRING, STOP SWITCH

35357-MBR-000

$2.39

6

PEDAL, RR. BRAKE

46500-MFL-D20

$117.02

6

PEDAL, RR. BRAKE This part replaces 46500-MFL-305.

46500-MFL-D20

$117.02

7

SPRING ASSY., BRAKE PEDAL

46515-MBW-000

$7.02

8

BAR, CHANGE

90165-MFL-D20

$22.38

9

BOLT, CHANGE PIVOT

90113-MCF-000

$7.96

10

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

11

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$4.03

12

WASHER (15.2X25)

90557-230-000

$2.39

13

CLIP, SWITCH COVER

90601-KAF-003

$2.67

14

NUT, HEX. (6MM)

94001-06020-0S

$1.49

15

WASHER, PLAIN (8MM)

94103-08700

$1.49

16

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

17

BOLT, FLANGE (6X20)

90112-MFL-D20

$2.44
