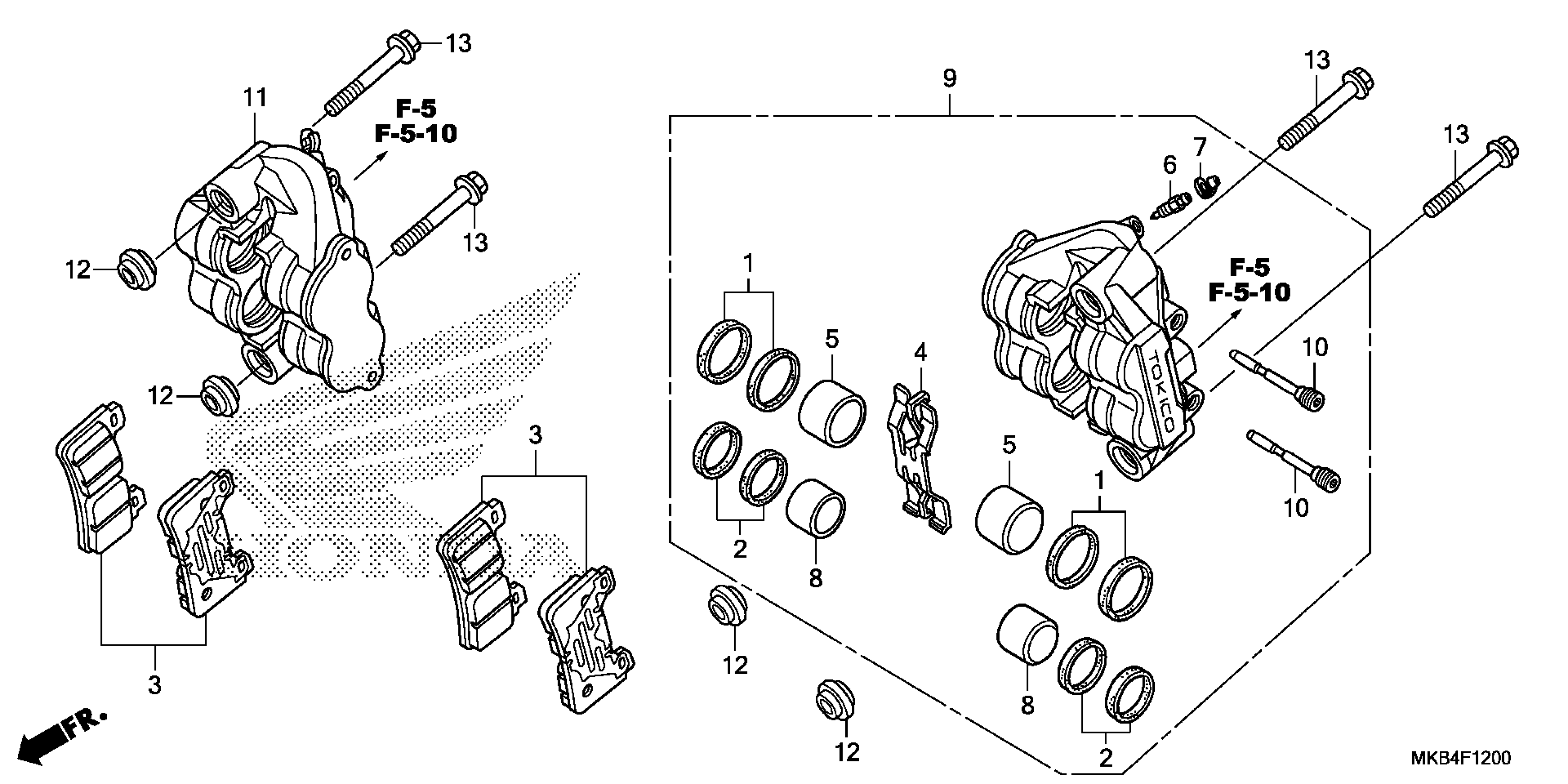

Honda CBR1000RR4A (15) MOTORCYCLE, JPN, VIN# JH2SC595-FK700001 TO JH2SC595-FK799999 FRONT BRAKE CALIPER (1) Diagram

SEAL SET, PISTON (32)

06451-MEL-003

$4.47

SEAL SET, PISTON (30)

06452-MEL-003

$4.47

PAD SET, FR. This part replaces 06455-MEL-D22.

06455-MEL-D23

$45.24

PAD SET, FR.

06455-MEL-D23

$45.24

SPRING, PAD

45106-MEL-003

$6.29

PISTON (32)

45107-MFL-013

$36.46

SCREW, BLEEDER

45111-MEL-013

$1.93

CAP, BLEEDER

45112-MEL-003

$1.19

PISTON (30)

45117-MFL-013

$35.17

CALIPER SUB-ASSY., L. FR. (TOKIKO)

45150-MFL-881

$361.45

PIN, HANGER

45215-MFL-881

$5.43

CALIPER SUB-ASSY., R. FR. (TOKIKO)

45250-MFL-881

$361.45

SPACER, FR. FORK

51497-MEL-D20

$7.26

BOLT, FLANGE (10X62)

90131-MFL-D20

$15.71
