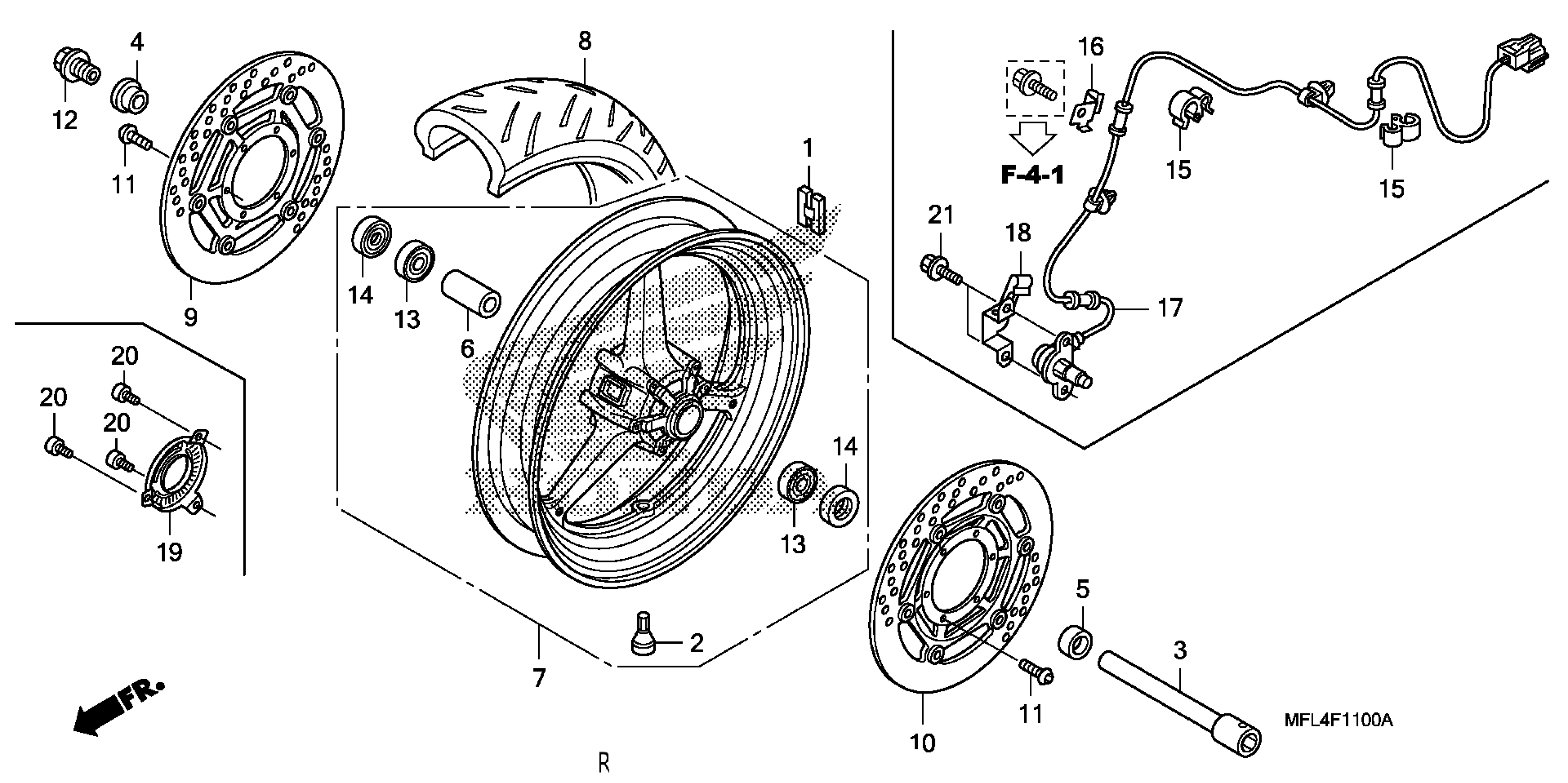

Honda CBR1000RR4A (11) MOTORCYCLE, JPN, VIN# JH2SC59J-BK300001 FRONT WHEEL Diagram

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MFL-000

$77.87

COLLAR, R. FR. WHEEL SIDE

44311-MFL-000

$10.78

COLLAR, L. FR. WHEEL SIDE

44312-MFL-000

$7.84

COLLAR, FR. WHEEL DISTANCE

44620-MCJ-000

$21.08

WHEEL SUB-ASSY., FR. (TYPE4)

44650-MFL-000ZD

$845.51

TIRE, FR. (120/70ZR17) (M/C 58W) (BS) (NOT AVAILABLE)

44711-MFL-003

Unavailable

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MFL-004

Unavailable

DISK, R. FR. BRAKE

45120-MFL-003

$586.02

DISK, L. FR. BRAKE

45220-MFL-003

$586.02

BOLT, BRAKE DISK (6X17)

90106-MFL-D20

$2.48

BOLT, FR. AXLE

90306-MFL-010

$10.46

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

DUST SEAL (31X47X7)

91253-MFL-003

$6.34
